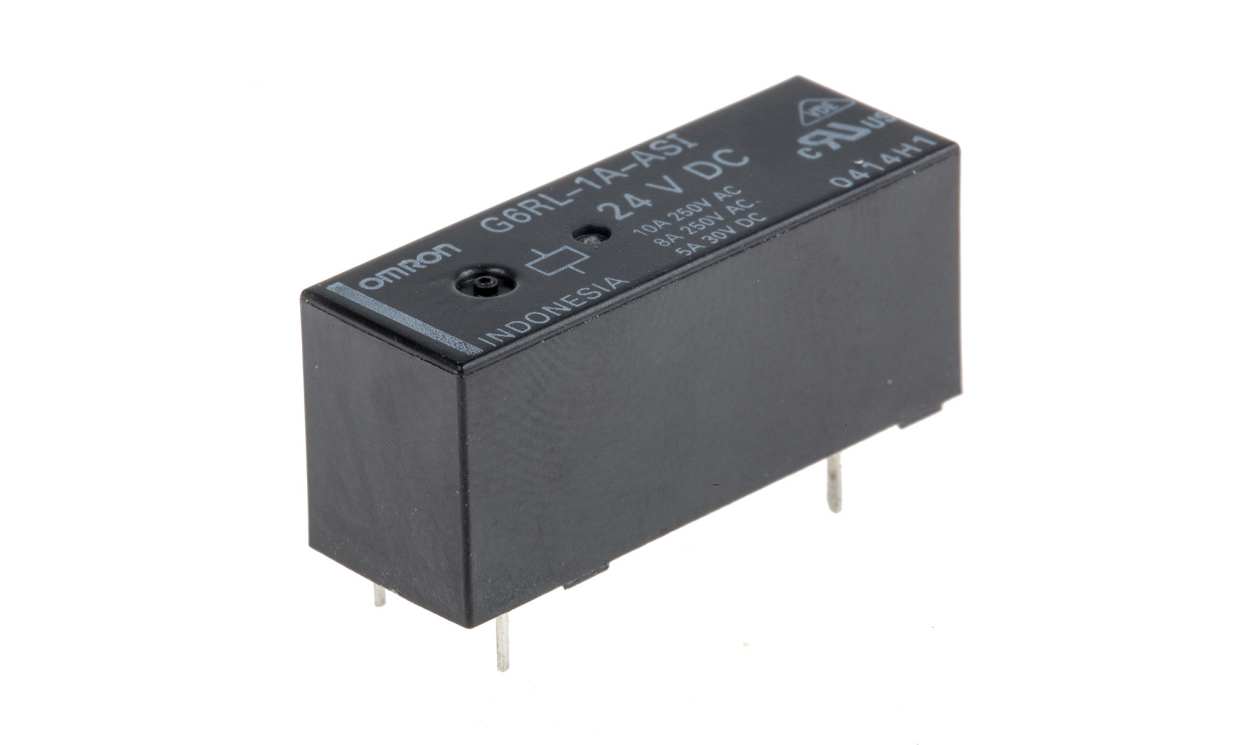

OMRON G6RL-1A-ASI DC24 | PCB Mount Power Relay | 24 V DC Coil, 10 A, SPST
Part Number : G6RL-1A-ASI DC24
Built around a 24 V DC coil, the OMRON G6RL-1A-ASI DC24 PCB-mount non-latching power relay switches up to 10 A through SPST contacts. On this model, the coil draws 220 mW and measures 2,618 Ω, and coil-to-contact isolation is 5 kV AC.
- SPST contact configuration, 1 pole
- Max switching power: 2.5 kVA AC
- Contact material: silver alloy
- Operating temperature: -40 to +85 °C
- Life: 50,000 electrical cycles
- Dimensions (L x D x H): 28.5 x 10 x 12.3 mm
For pricing, please contact our experts.
G6RL Series
Available in SPST-NO and SPDT contact forms
Low profile: 12.3mm max height
Flux proof
Clearance and creepage distance 10 mm
Low coil power consumption: 220mW (typical)
Low profile: 12.3mm max height
Flux proof
Clearance and creepage distance 10 mm
Low coil power consumption: 220mW (typical)
Approvals
UL 508 (File no. E41643), VDE
