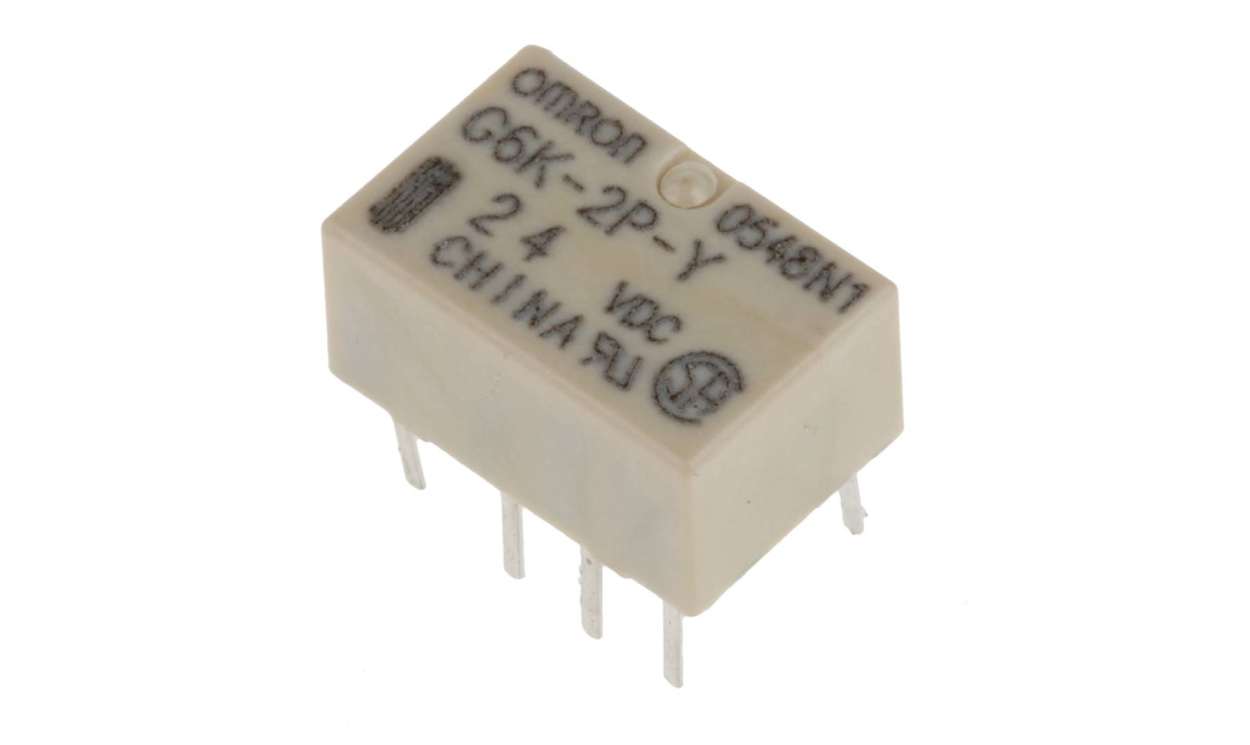

OMRON G6K-2P-Y 24DC | PCB Mount Signal Relay | 24 V DC Coil, DPDT, 1 A
DPDT contacts switching up to 1 A and a 24 V DC coil define the OMRON G6K-2P-Y 24DC, a PCB-mount signal relay. Further figures for the G6K-2P-Y 24DC: maximum switching voltages of 125 V AC and 60 V DC and a maximum DC switching power of 60 W.
- Coil voltage: 24 V DC
- Contact configuration: DPDT (2 poles)
- Maximum switching voltage: 125 V AC / 60 V DC
- Maximum switching power: 60 W DC
- Dimensions: 10 x 6.5 x 5 mm
- Operating temperature: -40 to +70 °C
- Detailed Description
- Specifications
- Downloads

Omron Non-Latching Relay
Features and Benefits
Coil power is 100mW
Coil resistance is 5.22Kohm
Low power consumption of approximately 100mW
Terminal type is through hole
Certifications
CSA certified
| Brand | Omron |
| Series | HFD4 |
| Coil Voltage | 24V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 1A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 60V dc |
| Maximum Switching Power DC | 60 W |
| Length | 10 mm (0.394 in) |
| Latching | No |
| Depth | 6.5 mm (0.256 in) |
| Height | 5 mm (0.197 in) |
| Dimensions | 10 x 6.5 x 5 mm (0.394×0.256×0.197 in) |
| Terminal Type | PCB Pin |
| Number of Poles | 2 |
| Application | Signal |
| Minimum Operating Temperature | -40 °C (-40 °F) |
| Maximum Operating Temperature | +70 °C (158 °F) |
