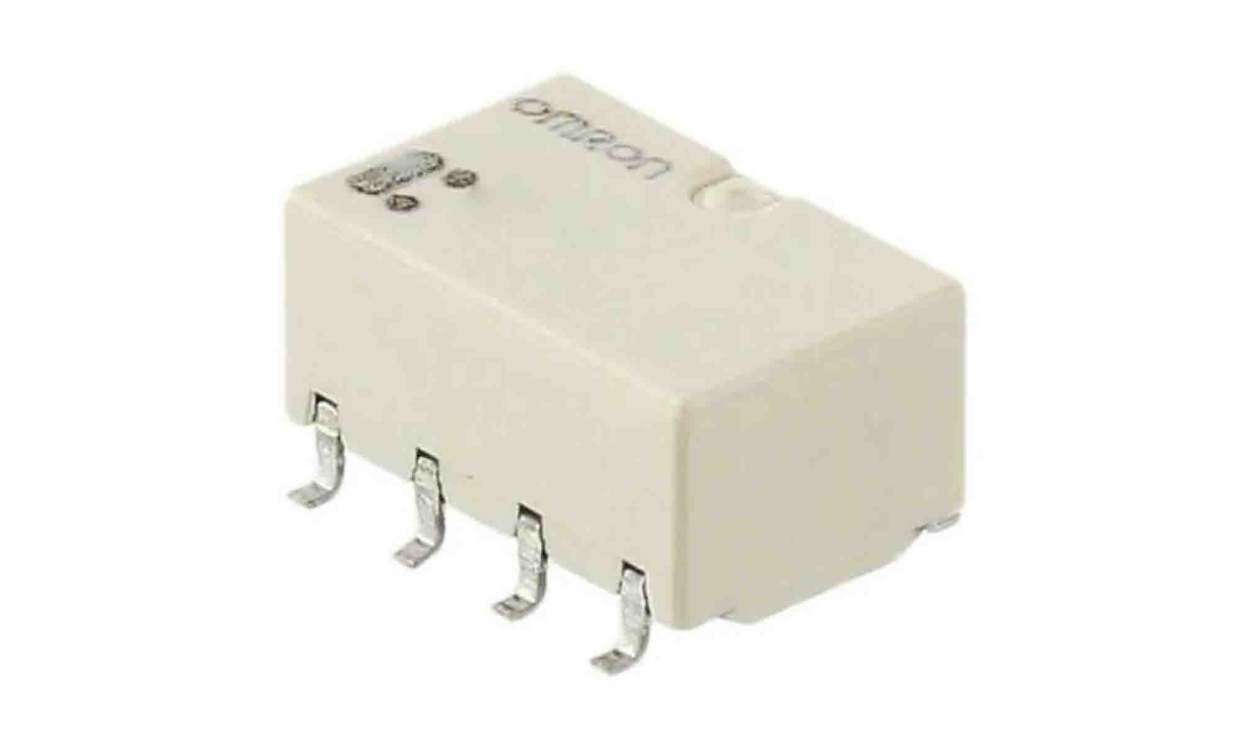

OMRON G6K-2F-Y-TR DC12 | Signal Relay | 12 V DC Coil, DPDT, 1 A, Surface Mount
Built around a 12 V DC coil, the OMRON G6K-2F-Y-TR DC12 is a non-latching surface-mount G6K series signal relay with DPDT contacts and 1 A switching current. Ratings for the G6K-2F-Y-TR DC12 include a maximum switching voltage of 125 V AC / 60 V DC and switching power up to 60 W DC. The coil specification for the G6K-2F-Y-TR DC12 gives a power of 100 mW and a resistance of 1300 Ω.
- Dimensions: 10 x 6.5 x 5.2 mm
- Terminals: surface mount
- Max switching current: 1 A DC
- Number of poles: 2
- Non-latching type
- Small size and low weight intended to improve mounting efficiency
- Detailed Description
- Specifications
- Downloads
-40°C to +70°C operating temperature
100mO maximum contact resistance
| Brand | Omron |
| Series | G6K |
| Coil Voltage | 12V dc |
| Contact Configuration | DPDT |
| Mounting Type | Surface Mount |
| Switching Current | 1A |
| Maximum Switching Current DC | 1 A |
| Maximum Switching Voltage AC | 125V ac |
| Maximum Switching Voltage DC | 60V dc |
| Maximum Switching Power DC | 60 W |
| Length | 10 mm (0.394 in) |
| Latching | No |
| Depth | 6.5 mm (0.256 in) |
| Height | 5.2 mm (0.205 in) |
| Dimensions | 10 x 6.5 x 5.2 mm (0.394×0.256×0.205 in) |
| Terminal Type | Surface Mount |
| Number of Poles | 2 |
| Coil Resistance | 1300Ω |
| Coil Power | 100mW |
| Features | Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint |
