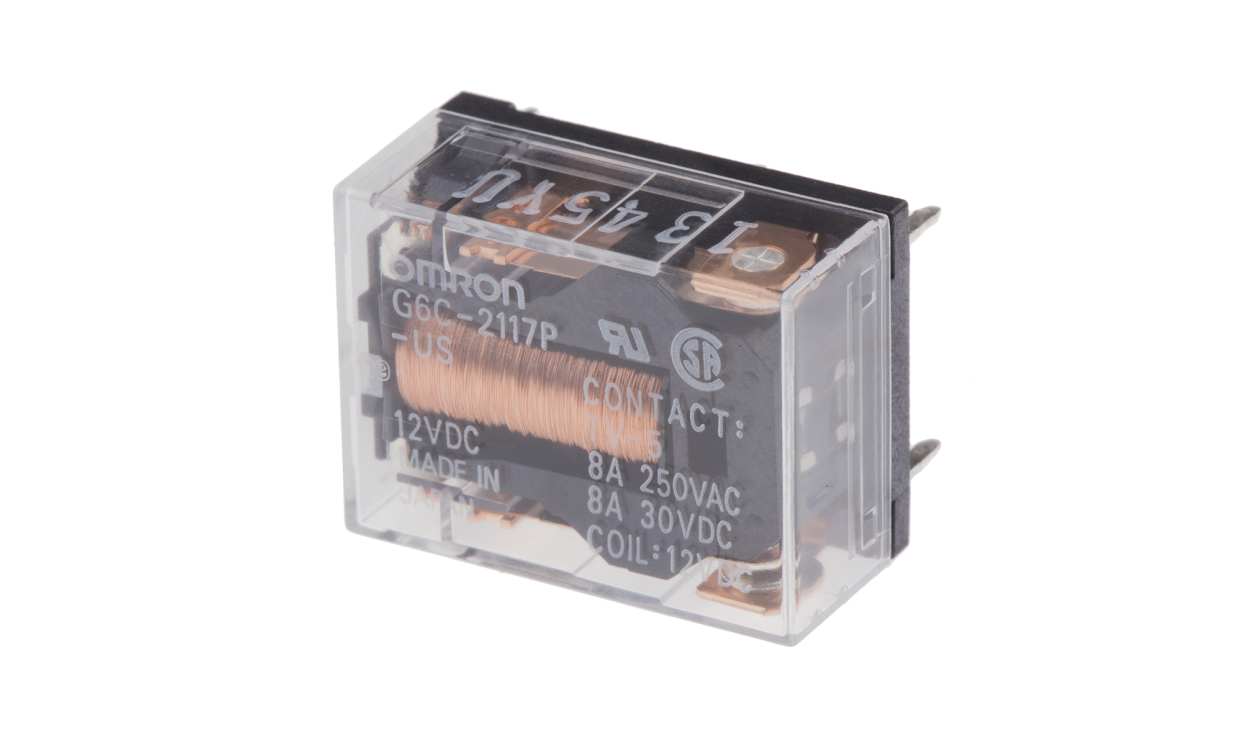

Name: Omron G6C-2117P-US DC12, PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, SPDT
Brand: OMRON
SKU: G6C-2117P-US DC12
Availability: OutOfStock

Omron G6C-2117P-US DC12, PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G6C-2117P-US DC12, PCB Mount Power Relay, 12V dc Coil, 8A Switching Current, SPDT

Part Number : G6C-2117P-US DC12

Availability: Sold out

Detailed Description
Specifications

G6C Series

Low power consumption, 200mW
Flux protection or fully sealed types available
Compact size, L20xW15xH10 mm

Approvals

UL, CSA (SEV for those with SV within the Manufacturer part number)

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	8A
Number of Poles	1
Series	G6C
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	20mm
Coil Resistance	720Ω
Coil Power	200mW
Isolation Coil To Contact	2kV ac
Depth	15mm
Minimum Operating Temperature	-25°C
Height	10mm
Life	100000 Operations
Maximum Operating Temperature	+70°C
