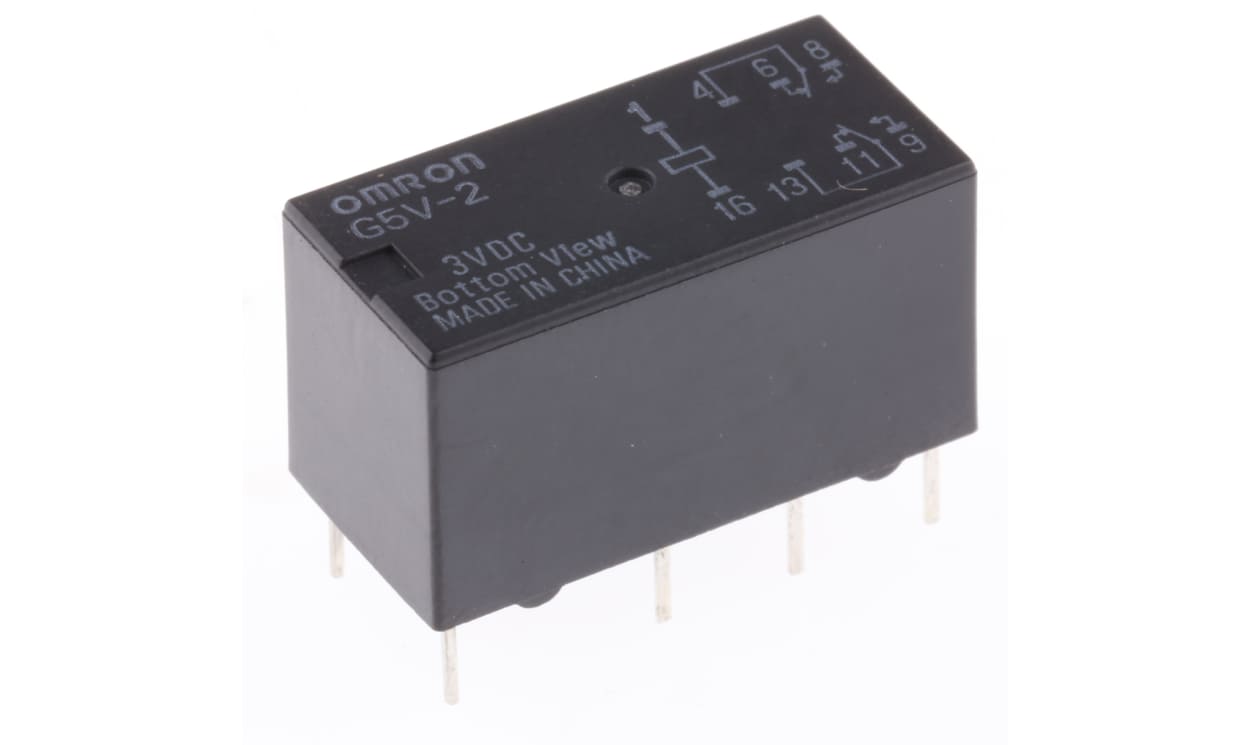

OMRON G5V-2 3DC | Signal Relay | 3 V DC Coil, DPDT, 2 A, PCB Mount
This DPDT non-latching signal relay, the OMRON G5V-2 3DC, is driven by a 3 V DC coil and handles 2 A in a PCB-mount format. The G5V-2 3DC (3 V DC version) has a maximum switching voltage of 125 V AC / 125 V DC and switching power up to 60 W DC.
- Terminals: through hole
- Max switching current: 2 A DC
- Contact material: gold-plated
- Life: 100,000 operations (electrical)
- Listed application: signal
- Number of poles: 2
- Detailed Description
- Specifications
- Downloads
G5V-2 Series
Conforms to BT Type 47 requirements, BT specification 4597
Ideal for signal switching applications
Approvals

| Brand | Omron |
| Series | MT |
| Coil Voltage | 3V dc |
| Contact Configuration | DPDT |
| Mounting Type | PCB Mount |
| Switching Current | 2A |
| Maximum Switching Current DC | 2 A |
| Maximum Switching Voltage AC | 125V |
| Maximum Switching Voltage DC | 125V |
| Maximum Switching Power DC | 60 W |
| Length | 20.2 mm (0.795 in) |
| Latching | No |
| Depth | 10 mm (0.394 in) |
| Height | 11 mm (0.433 in) |
| Dimensions | 20.5 x 10 x 11.5 mm (0.807×0.394×0.453 in) |
| Terminal Type | Through Hole |
| Number of Poles | 2 |
| Application | Signal |
| Contact Material | Gold Plated |
| Electrical Life | 10^5 Operations |
