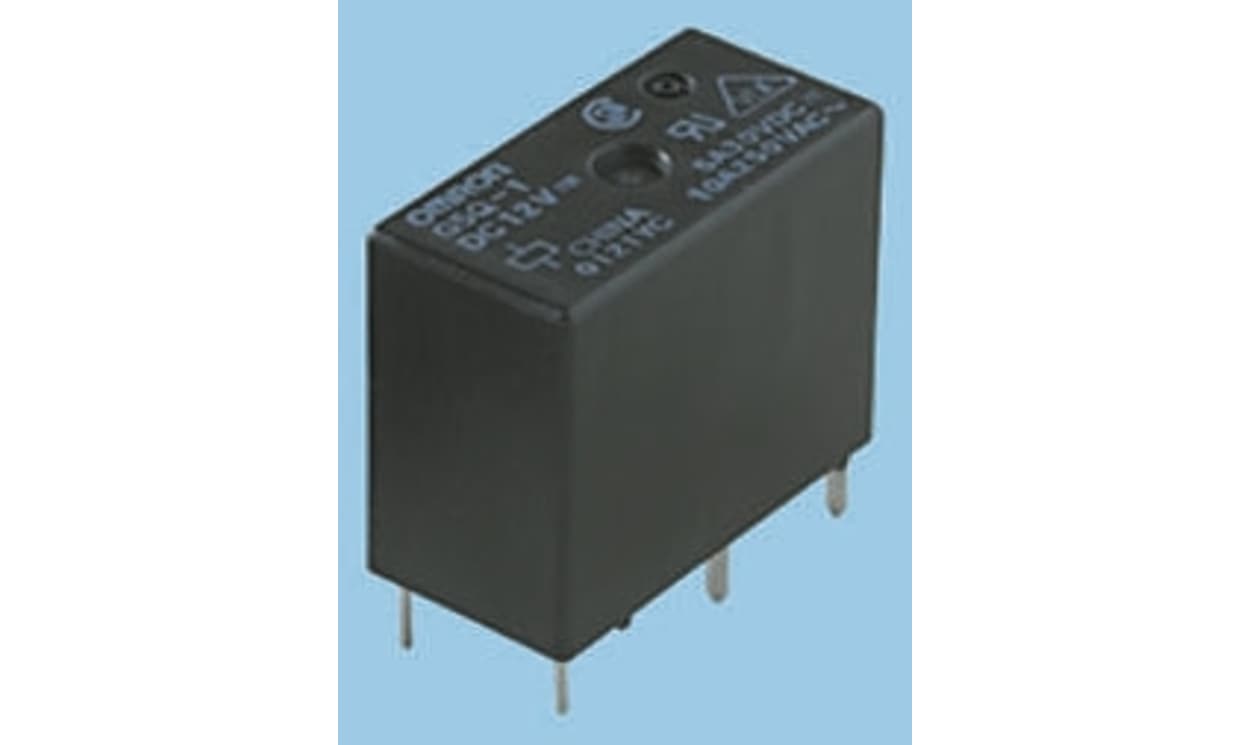

Name: Omron G5Q-1 DC24 (TY), PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G5Q-1 DC24 (TY)
Availability: OutOfStock

Omron G5Q-1 DC24 (TY), PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5Q-1 DC24 (TY), PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT

Part Number : G5Q-1 DC24 (TY)

Availability: Sold out

Detailed Description
Specifications

G5Q Series (USA Version)

Compact (20.3x15.8x10.3mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 8 kV (1.2 x 50μs) between coil and contacts
Low coil consumption
UL class F coil insulation

Approvals

UL, CSA, VDE

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G5Q
Latching	No
Terminal Type	Through Hole
Length	20.3mm
Coil Resistance	1440Ω
Maximum Operating Temperature	+85°C
Height	15.8mm
Contact Material	Silver
Depth	10.3mm
Minimum Operating Temperature	-40°C
Maximum Switching Power DC	150 W
Maximum Switching Power AC	1.25 kVA
Application	Power
