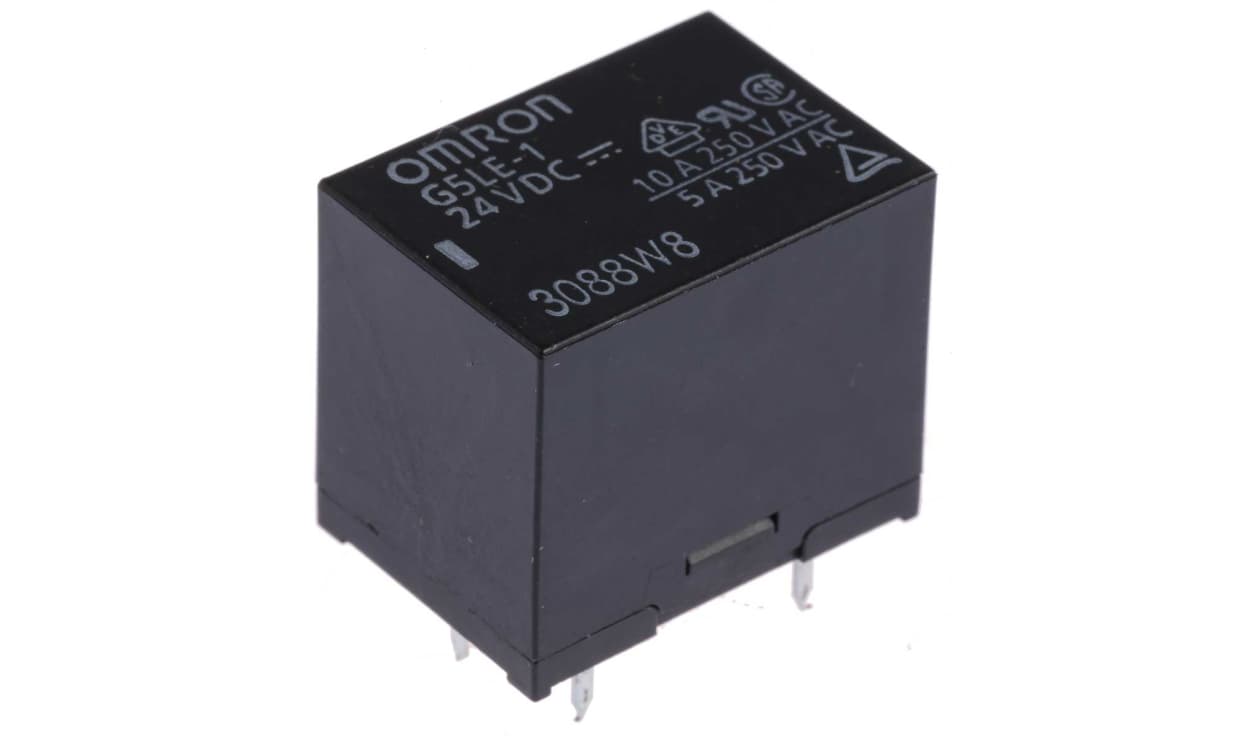

Name: Omron G5LE-1 24DC, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G5LE-1 24DC
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5LE-1 24DC, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT

Part Number : G5LE-1 24DC

Availability: Sold out

Detailed Description
Specifications

Omron Non-Latching Relay

The Omron G5LE series PCB mount non-latching relay has a contact configuration of SPDT. It is actuated with 24VDC coil voltage and 10A switching current. This relay has a high current capacity and is ideal for control circuit applications.

Features and Benefits

Subminiature sugar cube format
Withstands impulse of up to 4500V
Coil resistance is 1.44Kohm
PCB pin terminal type

Certifications

UL approved
CSA certified
VDE

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Latching	No
Series	G5LE
Terminal Type	PCB Pin
Length	22.5mm
Coil Resistance	1440Ω
Coil Power	400mW
Height	19mm
Minimum Operating Temperature	-25°C
Isolation Coil To Contact	2kV ac
Depth	16.5mm
Contact Material	Silver Alloy
Life	10000000 (Electrical) cycles
Maximum Operating Temperature	+85°C
Maximum Switching Power AC	1.25 kVA
