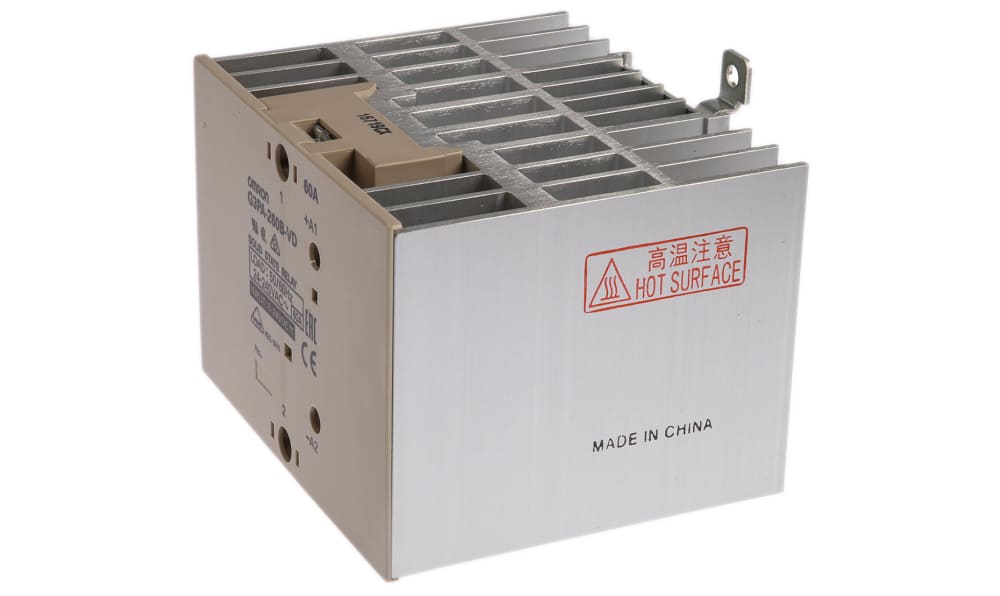

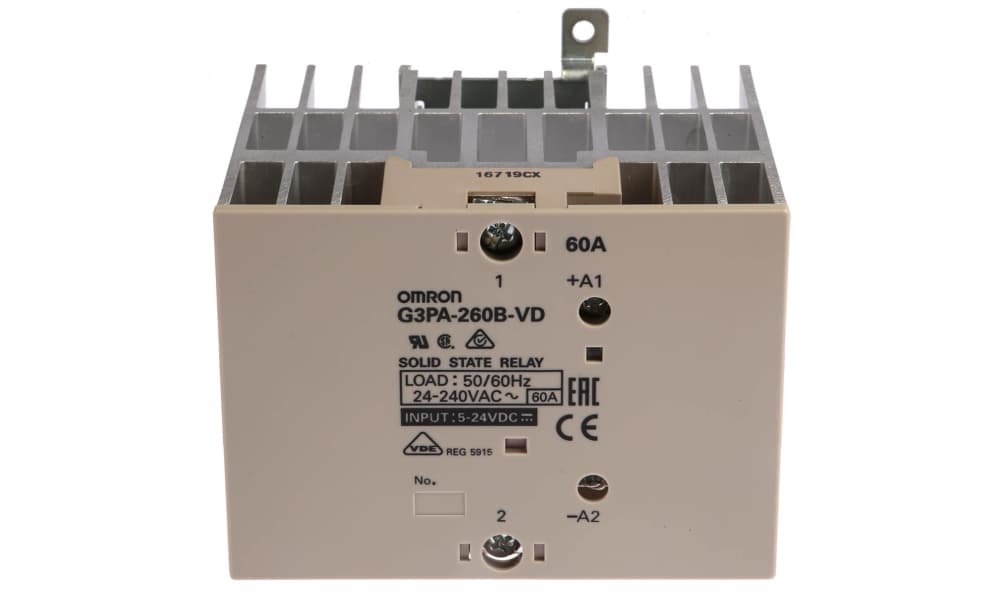

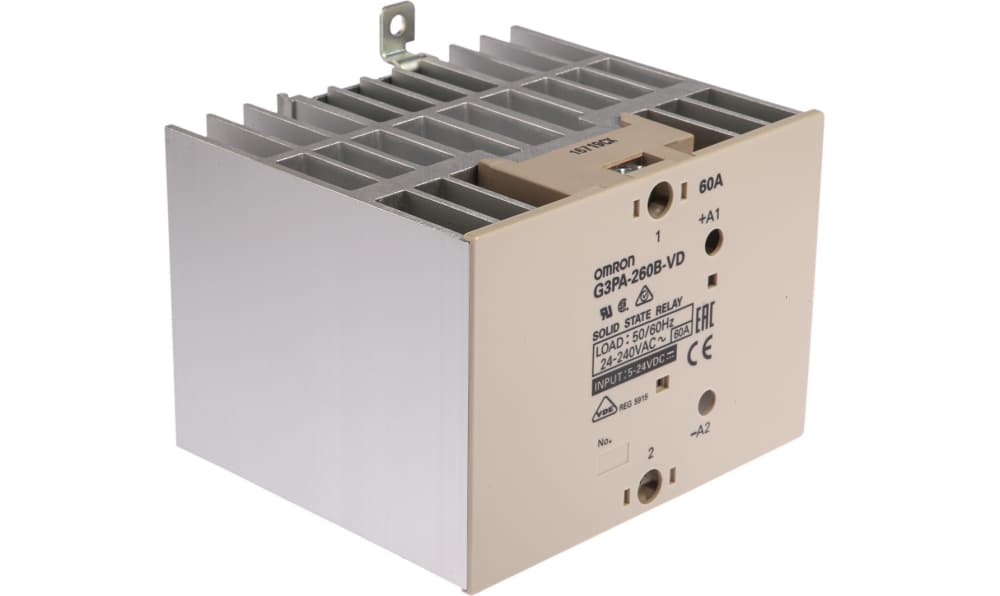

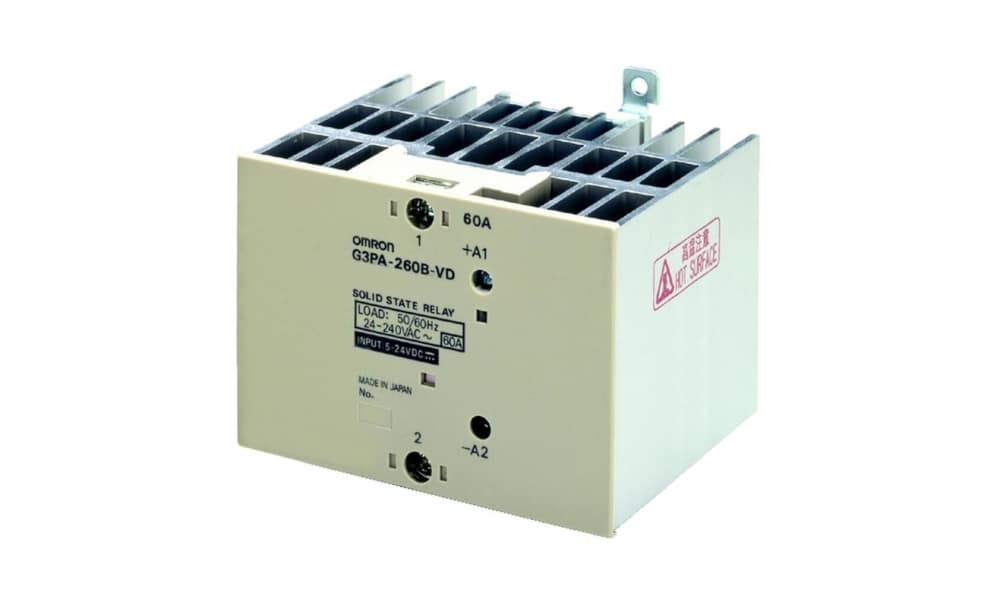

OMRON G3PA-260B-VD 5-24VDC | G3PA Solid State Relay | 4 to 30 V DC Control, 60 A, Panel Mount
This G3PA solid state relay, the OMRON G3PA-260B-VD 5-24VDC, combines a 4 to 30 V DC control input, a maximum load current of 60 A and a 19 to 264 V AC load voltage range. It uses a triac output, panel mounting and zero cross switching. It measures 100 x 110 x 100 mm.
- Control voltage: 4 to 30 V DC
- Maximum load current: 60 A
- Load voltage: 19 to 264 V AC
- Minimum load current: 0.5 A
- Operating temperature: -30 to +80 °C
- Detailed Description
- Specifications
- Downloads


Omron G3PA Series Solid State Relay, 60A Maximum Load Current, 264V Maximum Load Voltage - G3PA-260B-VD 5-24VDC
Features & Benefits
• Features screw terminals for secure and stable connections
• Enhanced dielectric strength of 4,000 V AC between input and output
• Built-in Triac technology ensures reliable and long-lasting performance
Applications
• Suitable for controlling heating elements in industrial settings
• Effective in machinery for efficient power modulation
• Ideal for requiring reliable and safe relay operations
How does the zero-cross switching feature benefit my system?
Can this relay handle multiple loads simultaneously?
What environmental conditions can it operate under?
How are the terminals connected securely?
Approvals
Note
| Brand | Omron |
| Series | G3PA |
| Maximum Load Voltage | 264 V |
| Maximum Load Current | 60 A |
| Mounting Type | Panel Mount |
| Minimum Load Voltage | 19 V ac |
| Output Device | Triac |
| Minimum Load Current | 0.5 A |
| Switching Type | Zero Cross |
| Load Voltage Range | 19 → 264V ac |
| Dimensions | 100 x 110 x 100 mm (3.94×4.33×3.94 in) |
| Maximum Control Voltage | 30 V |
| Control Voltage Range | 4 → 30 V dc |
| Maximum Operating Temperature | +80 °C (176 °F) |
| Length | 100 mm (3.94 in) |
| Height | 100 mm (3.94 in) |
| Depth | 110 mm (4.33 in) |
| Minimum Operating Temperature | -30 °C (-22 °F) |
| Operating Temperature Range | -30 → +80 °C (-22 to 176 °F) |
