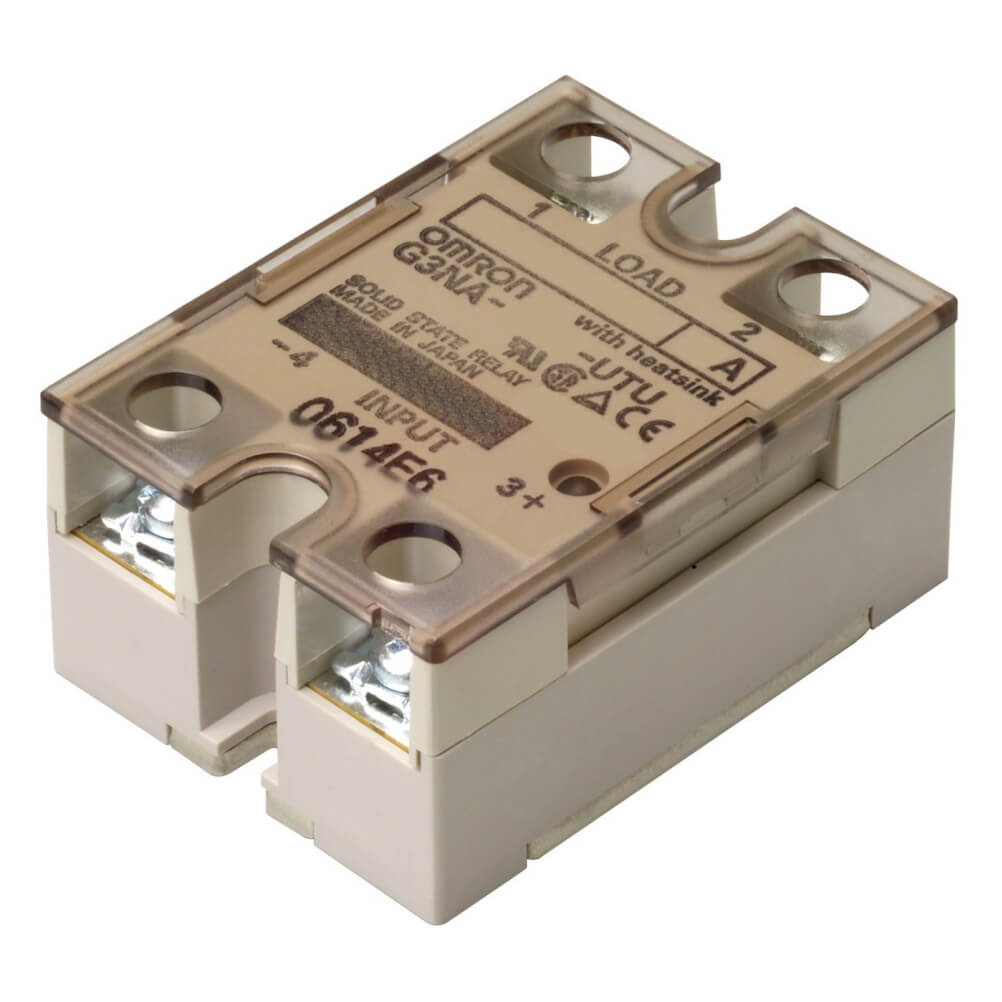

Omron G3NA-D210B-UTU 5-24VDC, G3NA Series Solid State Relay, DIN Rail Mount

Name: Omron G3NA-D210B-UTU 5-24VDC, G3NA Series Solid State Relay, DIN Rail Mount
Brand: OMRON
SKU: G3NA-D210B-UTU 5-24VDC
Availability: OutOfStock

Part Number : G3NA-D210B-UTU 5-24VDC

Solid state relay, surface mounting, 1-pole, 10 A, 5 to 200 VDC

Availability: Sold out

Detailed Description
Specifications
Features

Omron G3NA Series Solid State Relay, 24V DC Coil Voltage, Screw Terminal Type - G3NA-D210B-UTU DC5-24

This reliable Omron solid state relay is designed for a wide range of applications in various industries. With a compact design and fast turn on/off times, it provides efficient switching capabilities for various loads.

Features & Benefits

• SP contact configuration for versatility and optimal performance
• DIN Rail mounting type for easy installation and maintenance
• Screw terminal for secure connectivity and convenience
• 10A switching current for handling a range of loads
• Fast turn on/off time of 1 ms for precise control
• High operating temperature range of -30°C to +80°C for reliable performance
• Certified by UL, CSA, and TÜV for quality assurance
• Compact dimensions of 58 x 43 x 30 mm for space-saving installations

Applications

• Ideal for use in control panels, motor control systems, and industrial automation applications

Can it handle high temperatures?

It is designed to operate in temperatures ranging from -30°C to +80°C.

Will it fit in a compact space?

With dimensions of 58 x 43 x 30 mm, it is suitable for space-saving installations.

Is it easy to install?

With a DIN Rail mounting type and screw terminals, installation is convenient and secure.

Brand	Omron
Mounting Type	DIN Rail
Number of Poles	2
Terminal Type	Screw
Contact Configuration	SP
Series	G3NA
Dimensions	58 x 43 x 30mm
Maximum Operating Temperature	+80°C
Height	30mm
Standards Met	CE
Operating Temperature Range	-30 → +80°C
Minimum Operating Temperature	-30°C
Length	58mm
Depth	43mm

Solid state relay, surface mounting, 1-pole, 10 A, 5 to 200 VDC
