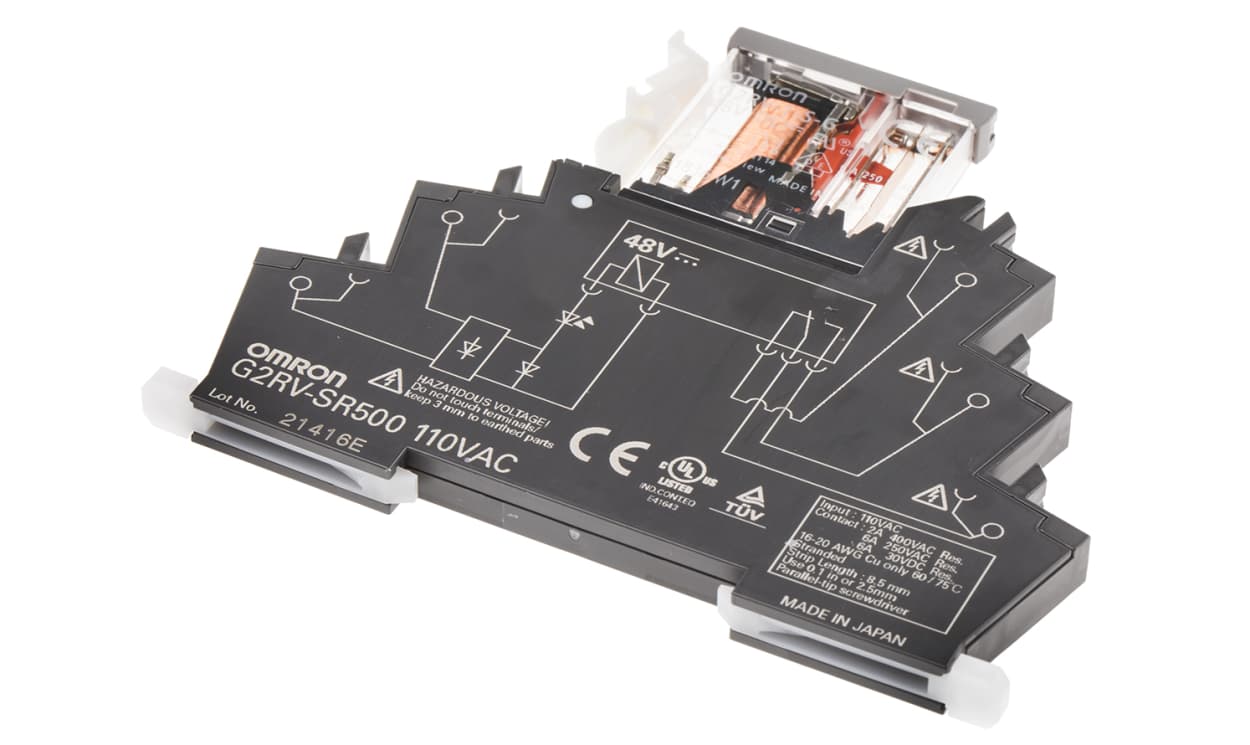

Name: Omron G2RV-SR500 AC110, DIN Rail Power Relay, 110V ac Coil, 6A Switching Current, SPDT
Brand: OMRON
SKU: G2RV-SR500 AC110
Availability: OutOfStock

Omron G2RV-SR500 AC110, DIN Rail Power Relay, 110V ac Coil, 6A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2RV-SR500 AC110, DIN Rail Power Relay, 110V ac Coil, 6A Switching Current, SPDT

Part Number : G2RV-SR500 AC110

Availability: Sold out

Detailed Description
Specifications

G2RV-SR Slim I/O Relays With Low Profile Socket

Omron G2RV-SR slim I/O relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G2RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

Slim design
LED operating status
Push-In Plus terminal blocks

When 1113044 is no longer for sale, please see RS article 2711836 for the updated version in the new range of relays from Omron.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	110V ac
Contact Configuration	SPDT
Mounting Type	DIN Rail
Switching Current	6A
Number of Poles	1
Series	G2RV
Latching	No
Terminal Type	Push In
Maximum Switching Voltage AC	440V ac
Maximum Switching Voltage DC	125V dc
Length	6.2mm
Coil Power	800mW
Standards Met	CE, CULus, TUV Certification, UL 508 File No. E41643
Contact Material	Silver Alloy
Height	90mm
Life	50000 (Electrical-NC) operations, 5000000 (Mechanical) operations, 70000 (Electrical-NO) operations
Depth	78mm
Maximum Operating Temperature	+55°C
Isolation Coil To Contact	4kV ac
