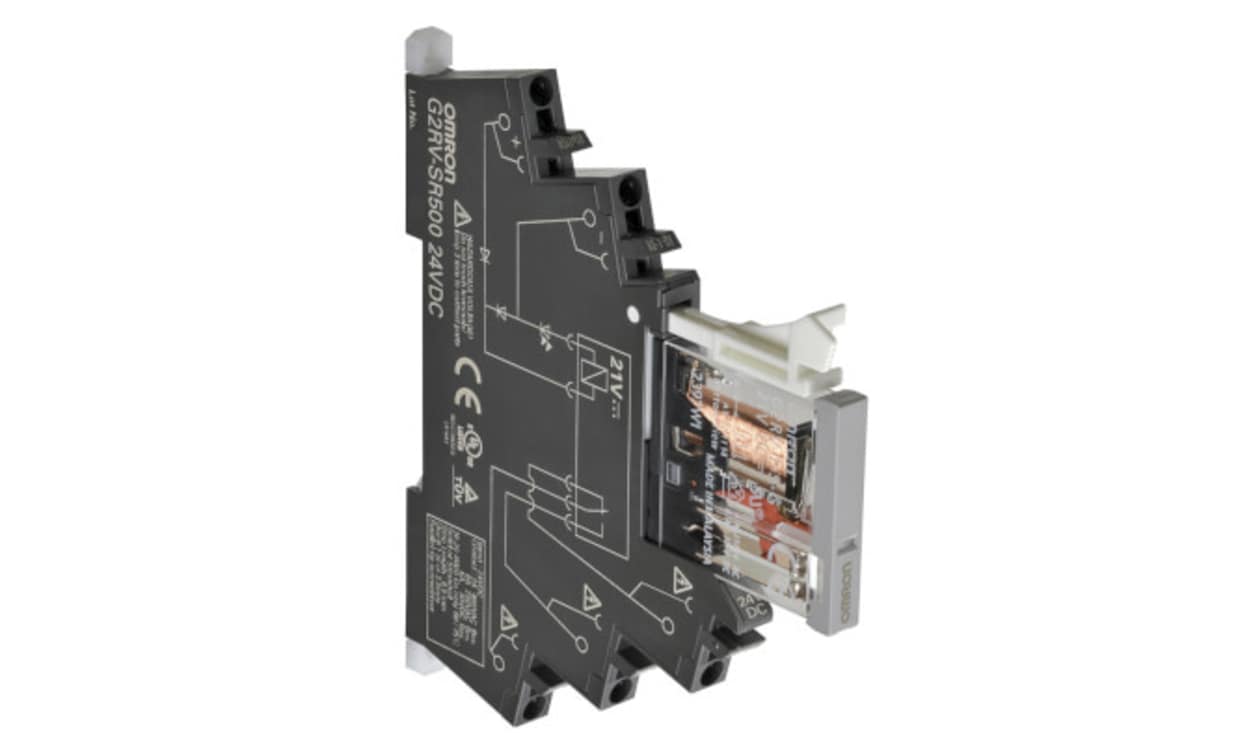

Name: Omron G2RV-SR500 AC/DC48, DIN Rail Power Relay, 48V ac/dc Coil, 6A Switching Current, SPDT
Brand: OMRON
SKU: G2RV-SR500 AC/DC48
Availability: OutOfStock

Omron G2RV-SR500 AC/DC48, DIN Rail Power Relay, 48V ac/dc Coil, 6A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2RV-SR500 AC/DC48, DIN Rail Power Relay, 48V ac/dc Coil, 6A Switching Current, SPDT

Part Number : G2RV-SR500 AC/DC48

Availability: Sold out

Detailed Description
Specifications

When 1788270 is no longer for sale, please see RS article 2711841 for the updated version in the new range of relays from Omron.

Having been designed from first principles, instead of being adapted from a PCB relay, Omron’s G2RV series is the only genuine slim industrial relay on the market. As a result, the G2RV offers a wide array of benefits to machine manufacturers and panel builders. Just 6mm wide, the relay is ideal for compact panels and equipment, yet it offers all of the durability and reliability required for industrial applications.

Push-in plus Technology – easy wiring
Lockable test switch models available
Large plug-in pins – excellent connection
LED/mechanical flag – check operation
Transparent housing – check condition
Slim outline – space saving
Special input type with gold plated contacts
G3RV compatible

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	48V ac/dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Switching Current	6A
Number of Poles	1
Series	G2RV
Latching	No
Terminal Type	Push In
Maximum Switching Voltage AC	440V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current DC	6 A
Maximum Switching Current AC	6 A
Length	6.2mm
Coil Power	250mW
Life	5000000 (Minimum) operations
Depth	77.9mm
Maximum Operating Temperature	+55°C
Minimum Operating Temperature	-40°C
Height	90mm
