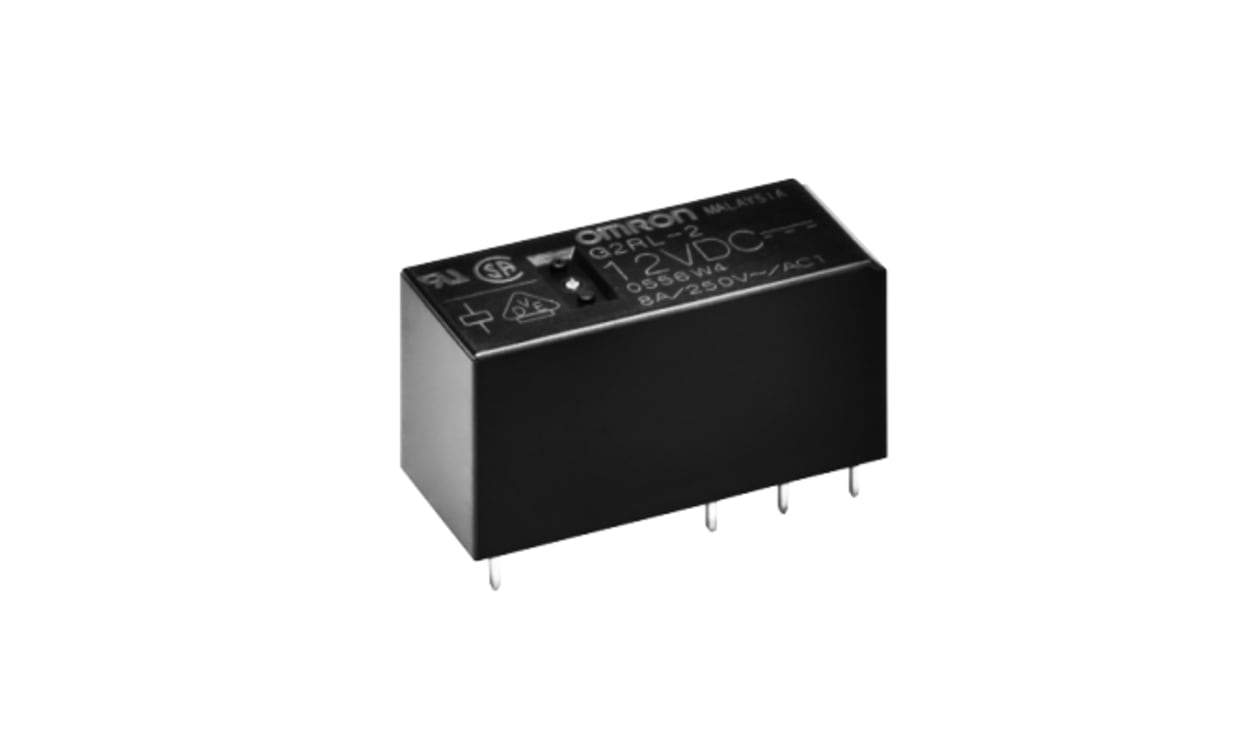

OMRON G2RL-2A-PW1 DC24 | PCB Power Relay | 24 V DC Coil, 8 A, DPST

Name: OMRON G2RL-2A-PW1 DC24 | PCB Power Relay | 24 V DC Coil, 8 A, DPST
Brand: OMRON
SKU: G2RL-2A-PW1 DC24
Availability: OutOfStock

Part Number : G2RL-2A-PW1 DC24

The OMRON G2RL-2A-PW1 DC24 is a PCB-mount G2RL series power relay with a 24 V DC coil and DPST contacts, rated for 8 A switching current. Further G2RL-2A-PW1 DC24 details: a coil resistance of 1.44 kΩ and 400 mW coil power.

Number of poles: 2
Coil-to-contact isolation: 10 kV
Mounting: PCB Mount

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron G2RL series low profile power relay with 15.7 mm height, ideal for incorporation in miniature equipment's. It has a 2 pole and use for home appliances and industrial machinery.

A wide variety of double pole, high-capacity (16 A)
IEC/EN 60335-1 conformed. (-HA Model)
Satisfies ambient operating temperature requirement of 85°C and 105°C (-CV Model)
Clearance and creepage distance: 8 mm / 8 mm min
Reduced power consumption with vol

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPST
Mounting Type	PCB Mount
Switching Current	8A
Number of Poles	2
Series	G2RL
Coil Resistance	1.44 kΩ
Coil Power	400mW
Isolation Coil To Contact	10kV
Number of Coils	Single
