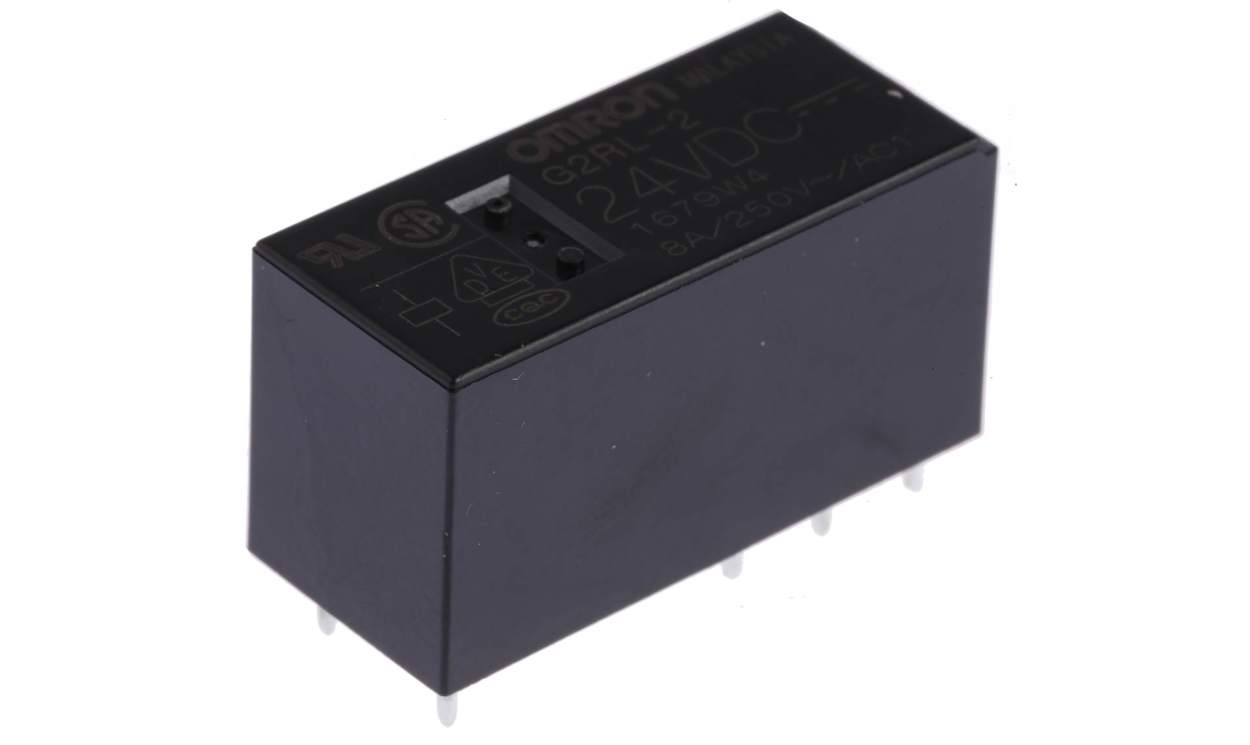

OMRON G2RL-2 DC24 | PCB Power Relay | 24 V DC Coil, 8 A, DPDT

Name: OMRON G2RL-2 DC24 | PCB Power Relay | 24 V DC Coil, 8 A, DPDT
Brand: OMRON
SKU: G2RL-2 DC24
Availability: OutOfStock

Part Number : G2RL-2 DC24

This 24 V DC coil version of the OMRON G2RL relay family, part number G2RL-2 DC24, is a PCB-mount power relay with DPDT contacts switching up to 8 A. Further G2RL-2 DC24 details: a coil resistance of 1440 Ω and non-latching operation.

Coil power: 400 mW
Number of poles: 2
Maximum AC switching power: 2 kVA
Coil-to-contact isolation: 5 kV AC
Contact material: silver
Terminal type: through-hole

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Power Relay

The Omron G2RL series 2-pole PCB mount non-latching relay has contact configuration of SPDT. It is actuated with 24VDC coil voltage and 8A switching current. This relay is ideal for incorporation in miniature equipment.

Features and Benefits

Tracking resistance is CTI>250
Coil power is 400mW
Coil resistance is 1.44Kohm
Isolation voltage for coil to contact is 5kVAC
Creepage/clearance is 10mm
Operating temperature ranging between 85°C and 105°C
Offers high insulation with insulation distance above 8 mm and impulse withstand voltage of 10kV between coil and contacts
Through hole terminal type

Certifications

UL recognised
CSA certified
VDE

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	8A
Number of Poles	2
Latching	No
Series	G2RL
Terminal Type	Through Hole
Length	29mm
Coil Resistance	1440Ω
Coil Power	400mW
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+85°C
Life	20000000 (Electrical) cycles
Depth	12.7mm
Height	15.7mm
Contact Material	Silver
Isolation Coil To Contact	5kV ac
Maximum Switching Power AC	2 kVA
