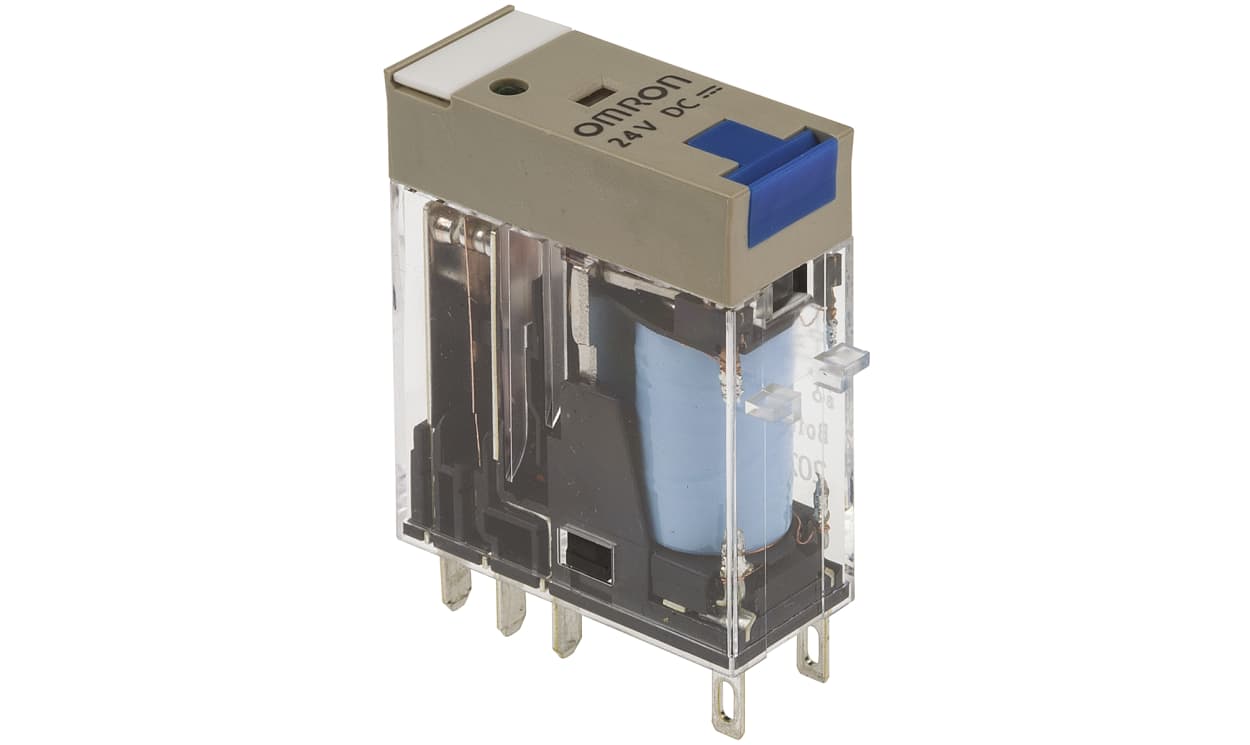

Omron G2R-2-SNI 24VDC (S), Plug In Power Relay, 24V dc Coil, 5A Switching Current, DPDT

Name: Omron G2R-2-SNI 24VDC (S), Plug In Power Relay, 24V dc Coil, 5A Switching Current, DPDT
Brand: OMRON
SKU: G2R-2-SNI 24VDC (S)
Availability: OutOfStock

Part Number : G2R-2-SNI 24VDC (S)

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, lockable test button, label facility

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, Plug-In Mounting, 1113Ω Coil Resistance - G2R Series - G2R-2-SNI 24DC(S)

Want to direct electrical flow in a jiffy? Add this power relay from OMRON to your automated system. As its coil is activated by 24V DC, it's a versatile all-rounder that's suited to managing lighting, heating or cooling systems. You can double your productivity, thanks to the unit's two-pole design that handles two circuits at once. A handy LED indicator warns you of any system issues in a flash, so you can stay on top of your workflow.

Features & Benefits

• Maximum switching voltage of 250V AC and 30V DC, so it can be used with heavy-duty applications
• Rapid 15ms operating time for efficiency
• Compact dimensions of 29 (L) x 13 (D) x 41.7mm (H) slot neatly into tight setups
• 5kV coil to contact isolation prevents hazardous surges from damaging your equipment

Applications

• Pharmaceutical manufacturing
• Power utilities
• Automotive industry

How many operations per hour does the device handle?

It withstands up to 18,000 operations per hour, so keeps pace with demanding applications.

Can I use this product in humid conditions?

Yes, the relay functions reliably in a relative humidity range between 5% and 85%.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	2
Series	G2R
Latching	No
Terminal Type	PCB Pin
Maximum Switching Voltage AC	250V ac
Maximum Switching Voltage DC	30V dc
Maximum Switching Current DC	5 A
Maximum Switching Current AC	5 A
Length	29mm
Coil Resistance	1113Ω
Coil Power	530mW
Standards Met	CE, CSA
Height	41.7mm
Depth	13mm
Isolation Coil To Contact	5kV

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, lockable test button, label facility
