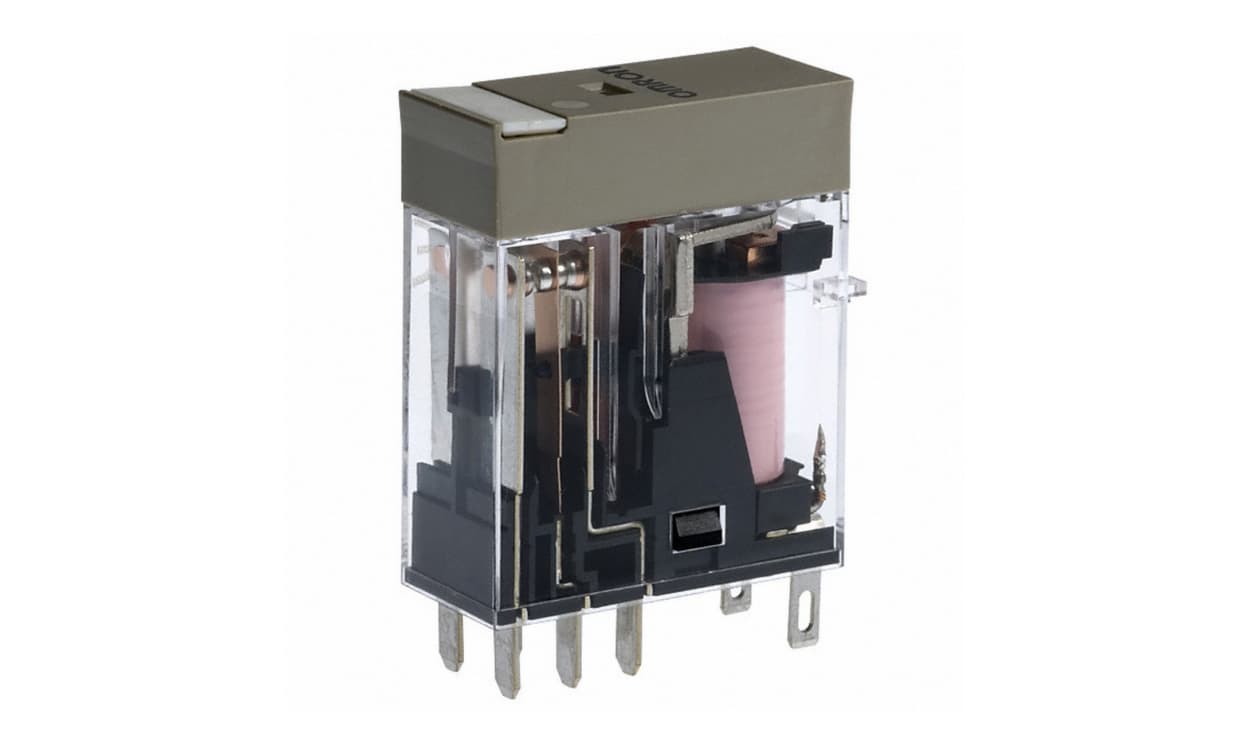

Name: Omron G2R-2-SN 48VAC, Plug In Non-Latching Relay, 48V ac Coil, 5A Switching Current, DPDT
Brand: OMRON
SKU: G2R-2-SN 48VAC
Availability: OutOfStock

Omron G2R-2-SN 48VAC, Plug In Non-Latching Relay, 48V ac Coil, 5A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2R-2-SN 48VAC, Plug In Non-Latching Relay, 48V ac Coil, 5A Switching Current, DPDT

Part Number : G2R-2-SN 48VAC

Availability: Sold out

Detailed Description
Specifications

Omron G2R-2 Series Non-Latching Relay, 48V AC Coil Voltage, DPDT Contact Configuration - G2R-2-SN AC48

This non-latching relay is engineered for various automation and control systems. With compact dimensions of 13 x 29 x 41.7 mm, this power plug-in relay operates effectively at a coil voltage of 48V AC. Designed to enhance control accuracy, it offers a double-pole, double-throw (DPDT) configuration suitable for various applications.

Features & Benefits

• Reduces wiring work significantly when paired with compatible sockets
• Integrated mechanical operation indicator for easy monitoring
• High switching power capacity of 1250VA AC y
• Versatile terminal type accommodates easy plug-in installation

Applications

• Utilised in factory automation systems for reliable control
• Integrated into control panels for effective switching
• Suitable for use in heating and ventilation systems
• Effective in lighting control for efficient operation

What advantages does the coil diagnostic function provide during operation?

This function offers self-diagnostic capabilities that ensure the relay's coil is functioning correctly, reducing downtime due to coil failure.

How does this relay support installation efficiency in automation projects?

The plug-in design allows for quick installation and replacement, significantly reducing the time and effort needed for wiring connections.

What are the implications of the temperature range on operational reliability?

The extensive temperature range of -40°C to +70°C ensures stable performance in various environmental conditions, making it suitable for demanding applications.

Brand	Omron
Coil Voltage	48V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	2
Series	G2R-2
Terminal Type	Plug In
Maximum Switching Voltage AC	380V
Maximum Switching Voltage DC	125V
Maximum Switching Current AC	5 A
Maximum Switching Current DC	5 A
Length	13mm
Coil Resistance	1113 Ω
Coil Power	900mW
Height	41.7mm
Contact Material	Silver Alloy
Standards Met	CE, CSA
Depth	29mm
Maximum Operating Temperature	+70°C
