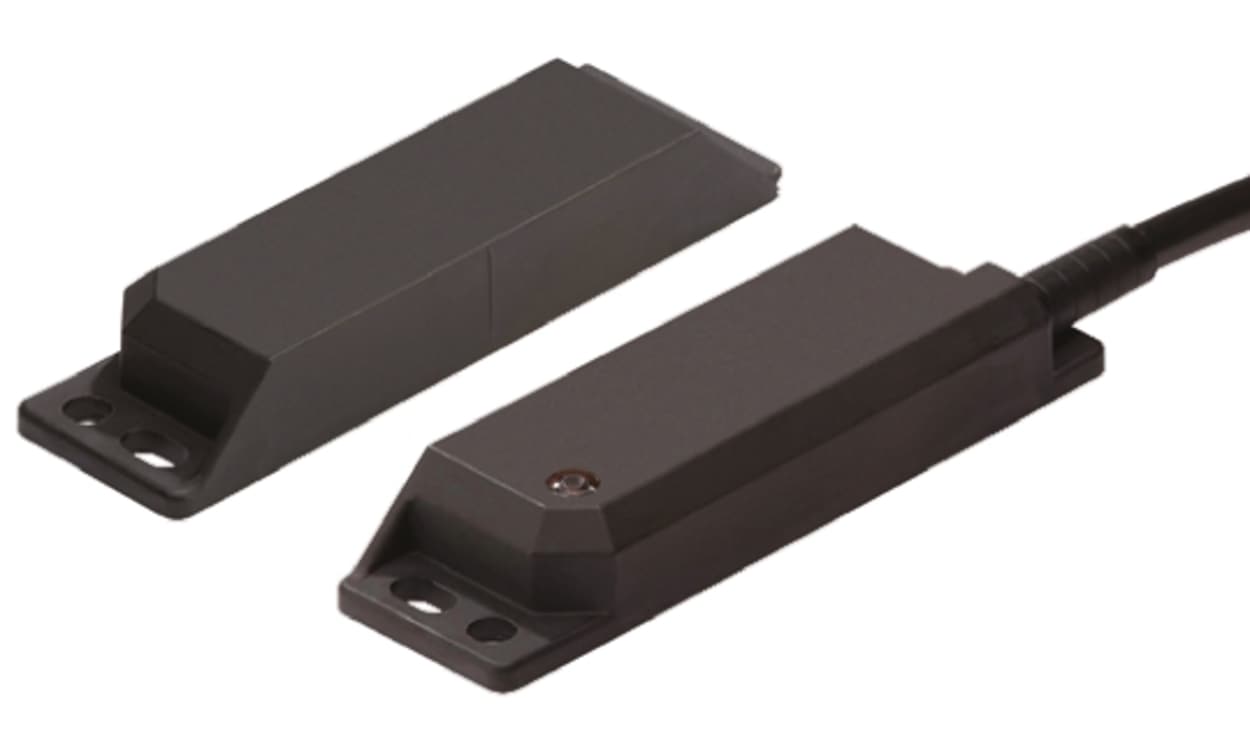

Name: Omron F3S-TGR-NLPC-21-10, F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable
Brand: OMRON
SKU: F3S-TGR-NLPC-21-10
Availability: OutOfStock

Omron F3S-TGR-NLPC-21-10, F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron F3S-TGR-NLPC-21-10, F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable

Part Number : F3S-TGR-NLPC-21-10

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron F3S-TGR-N_C Series Non-Contact Safety Switch, 24V DC Supply Voltage, IP67 - F3S-TGR-NLPC-21-10

This non-contact safety switch enhances operational safety in automated systems through a magnetic sensor technology that enables reliable detection without physical contact. Operating at a supply voltage of 24V dc and constructed from durable plastic, it is suitable for various safety applications and helps prevent accidental machine operation, thereby safeguarding personnel and equipment.

Features & Benefits

• Non-contact design minimises wear over time
• Coded actuator provides high tamper resistance
• Complies with safety category 4 for enhanced risk reduction
• IP67 rating ensures protection against dust and water
• 10m cable connection allows for flexible installation

Applications

• Used with safety circuits to prevent unauthorised access
• Ideal for protecting moving machinery and automated equipment
• Suitable for conveyor systems to enhance operator safety
• Effective in assembly lines where safety is critical

What installation requirements should I consider?

Ensure the installation area is clean and adheres to IP67 standards.

How can I verify compatibility with my safety system?

Check the specifications to confirm voltage and contact configurations.

What is the response time for switch activation?

The response time is typically instant due to the non-contact operation.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Plastic
Connection Type	10m Cable
Switch Type	Non Contact
Actuator Type	Coded
Safety Category	4
Sensor Principle	Magnetic
Actuator Included	Yes
Series	F3S-TGR-N_C
Switching Distance	17 mm
IP Rating	IP67
Length	88mm
Width	25mm
Number of Approach Directions	2
Depth	13mm

Omron F3S-TGR-NLPC-21-10, F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/2NC, 10m Cable

DOWNLOAD CATALOG

F3S-TGR-NLPC-21-10 Omron Machine Safety 0900766b814c686b

F3S-TGR-NLPC-21-10 Datasheet 0900766b8158c94d

F3S-TGR-NLPC-21-10 Brochure - Safety Interlock Switches A700000012229382
