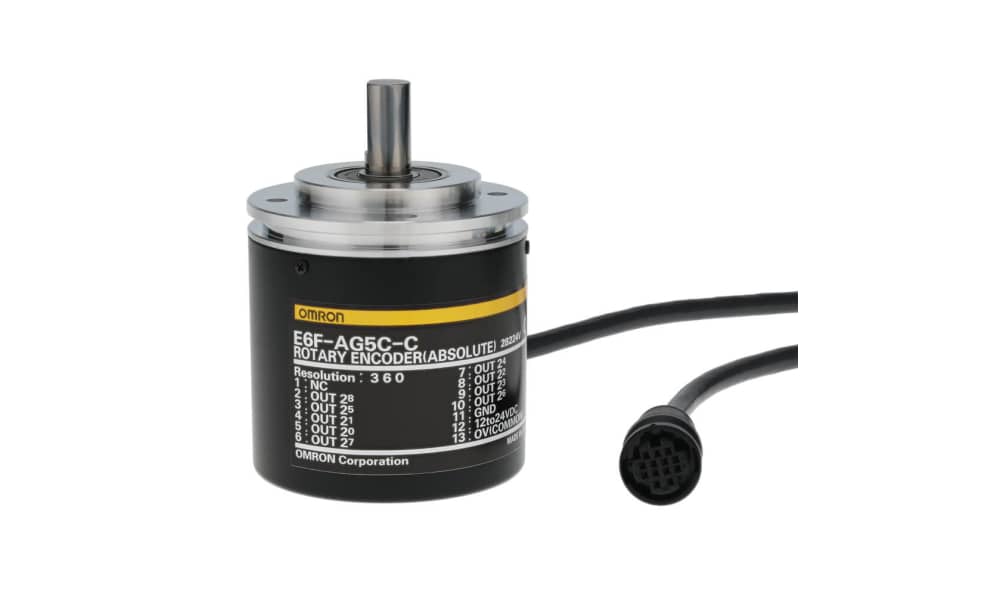

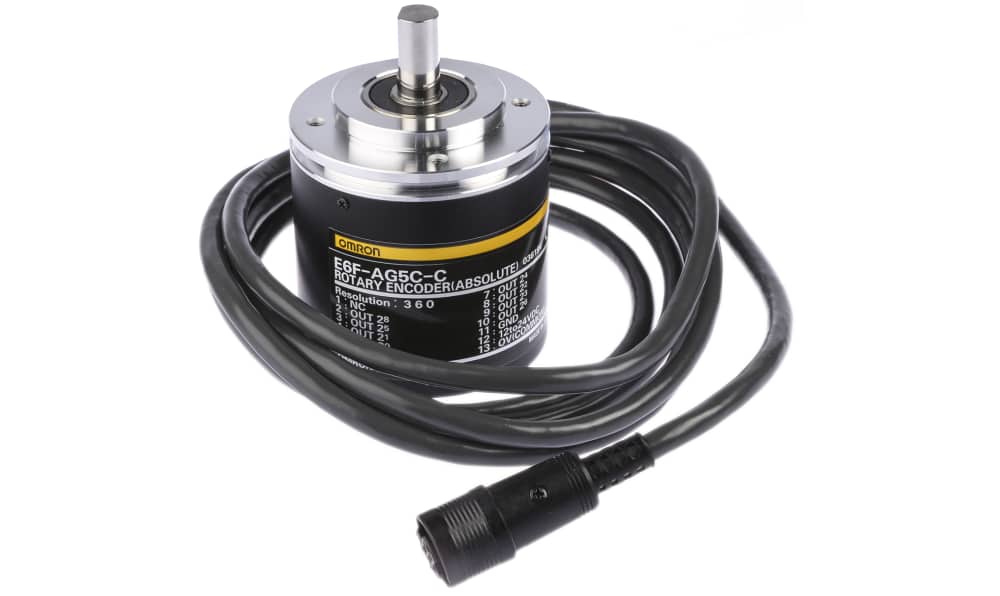

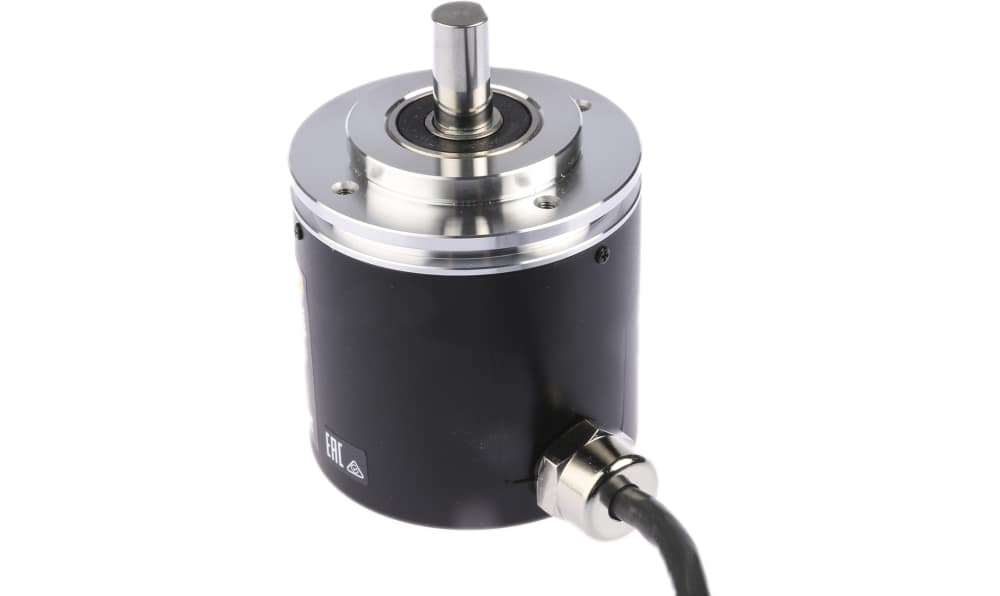

Omron E6F-AG5C-C 360 2M, E6F Series Absolute Absolute Encoder, 360 ppr, NPN Open Collector Signal, Solid Type, 10mm Shaft

Name: Omron E6F-AG5C-C 360 2M, E6F Series Absolute Absolute Encoder, 360 ppr, NPN Open Collector Signal, Solid Type, 10mm Shaft
Brand: OMRON
SKU: E6F-AG5C-C 360 2M
Availability: OutOfStock

Part Number : E6F-AG5C-C 360 2M

Availability: in stock

Detailed Description
Specifications
Downloads

Omron Series E6F Absolute Encoder, 360 Pulses Per Revolution, 10mm Shaft Diameter - E6F-AG5C-C 360 2M

This absolute encoder is designed for precision applications within automation and industrial environments. With an overall height of 85mm and a width of 60mm, this unit offers reliable performance and a compact design. It features a solid shaft type with a diameter of 10mm, ensuring durability and stability under various operating conditions. This encoder operates efficiently between supply voltages of 12 to 24 V DC and is rated for a maximum speed of 5000rpm.

Features & Benefits

• High-resolution capabilities up to 1024 counts for precise measurements
• Robust shaft rating with radial load tolerance of 120N
• Effective operation within -10°C to +70°C temperature range
• SSI-Gray interface for smooth communication with digital systems

Applications

• Utilised in cam positioners for accurate positioning control
• Applicable in robotics for precise movement sensing
• Used in machine tools for feedback and control systems
• Enhanced automation in packaging and labelling equipment

How does the resolution influence the performance in demanding applications?

A higher resolution enables more precise control and measurement, beneficial in applications requiring fine adjustments or where small increments in movement are critical. This ensures the encoder can accurately track positions in automated machinery.

What types of outputs can be expected from this encoder?

It features NPN open collector outputs that allow for effective interfacing with various electronic devices and controllers, making it suitable for multiple industrial applications.

What safeguards should be in place to protect the encoder during operation?

In addition to adhering to the IP65 rating, it's essential to avoid exposing the encoder to environments that exceed its specified temperature and humidity ranges, ensuring optimal functionality and longevity.

What is the recommended connection method for integrating this encoder?

The device is designed for connection via a system connector, facilitating easy integration into existing setups while providing secure connections to control systems.

How does the shaft type impact its performance?

The solid shaft design ensures greater robustness against loading forces and contributes to the stability of the encoder during high-speed operation, maintaining accuracy in readings.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Absolute
Series	E6F
Pulses Per Revolution	360
Maximum Revolutions	5000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Supply Voltage	12 → 24 V dc
Shaft Diameter	10mm
Resolution	10 Bit
IP Rating	IP65
Interface	SSI-Gray
Overall Height	85mm
Overall Width	60mm
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+70°C
Connection Type	System
Switching Frequency	20 kHz
