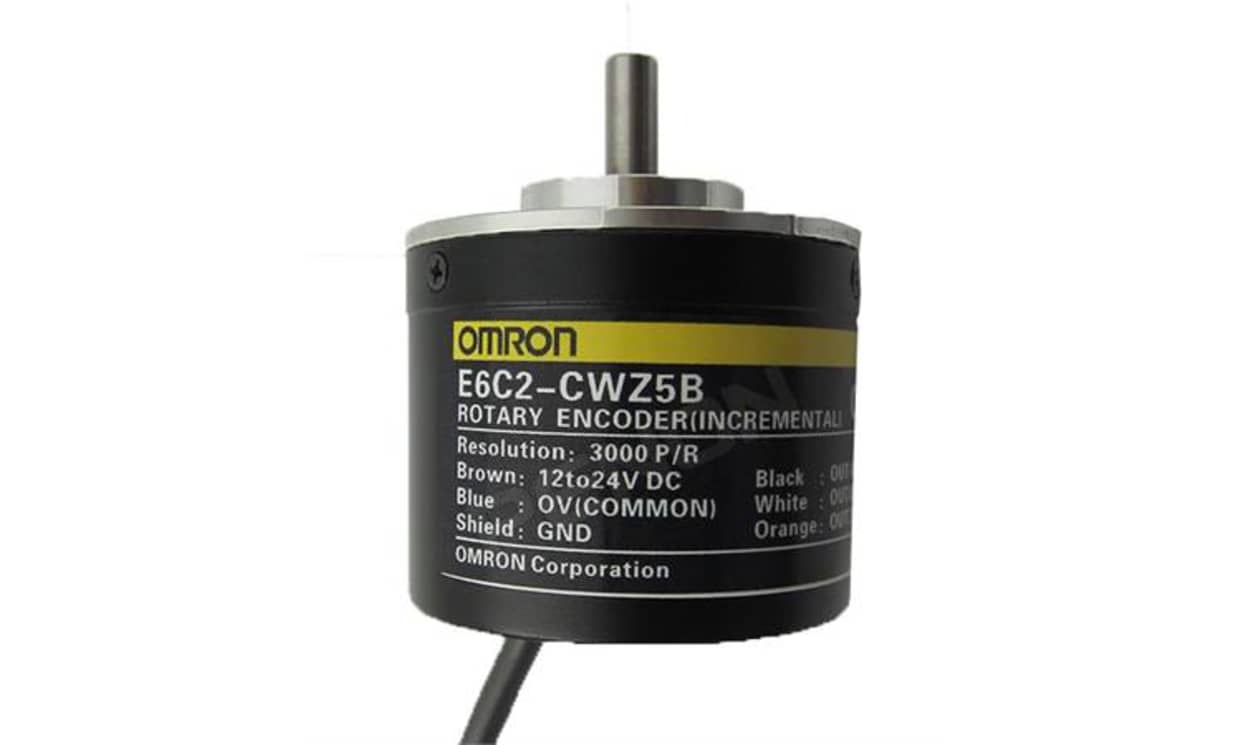

OMRON E6C2-CWZ5B 100P/R 2M | Incremental Encoder | 100 ppr, PNP Open Collector

Name: OMRON E6C2-CWZ5B 100P/R 2M | Incremental Encoder | 100 ppr, PNP Open Collector
Brand: OMRON
SKU: E6C2-CWZ5B 100P/R 2M
Availability: OutOfStock

Part Number : E6C2-CWZ5B 100P/R 2M

The OMRON E6C2-CWZ5B 100P/R 2M is an incremental encoder with 100 ppr and a PNP open-collector output. It is supplied from 12 to 24 V and rated for up to 6000 rpm.

100 ppr
PNP open collector
12 to 24 V supply
6000 rpm maximum

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron E6C2-CW series is a Incremental Rotary Encoder having 100 Pulses Per Revolution Shaft model with PNP open collector , Pre-wired models (2 m)

Degree of protection IEC: IP64

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	100
Maximum Revolutions	6000rpm
Output Signal Type	PNP Open Collector
Shaft Type	Radial, Thrust
Supply Voltage	12 → 24 V
