OMRON E6B2-CWZ6C 500P/R 2M | Incremental Encoder | 500 ppr, NPN, 6 mm Solid Shaft, IP50

Name: OMRON E6B2-CWZ6C 500P/R 2M | Incremental Encoder | 500 ppr, NPN, 6 mm Solid Shaft, IP50
Brand: OMRON
SKU: E6B2-CWZ6C 500P/R 2M
Availability: OutOfStock

Part Number : E6B2-CWZ6C 500P/R 2M

Producing 500 ppr from an NPN open-collector output, the OMRON E6B2-CWZ6C 500P/R 2M is part of the E6B2 incremental encoder series. It has a 6 mm solid shaft, IP50 rating and works from 5 to 24 V DC.

500 ppr
NPN open collector output
5 to 24 V DC
6 mm solid shaft, 6000 rpm
IP50, 59 mm height
100 kHz switching frequency

Availability: in stock

Detailed Description
Specifications
Downloads

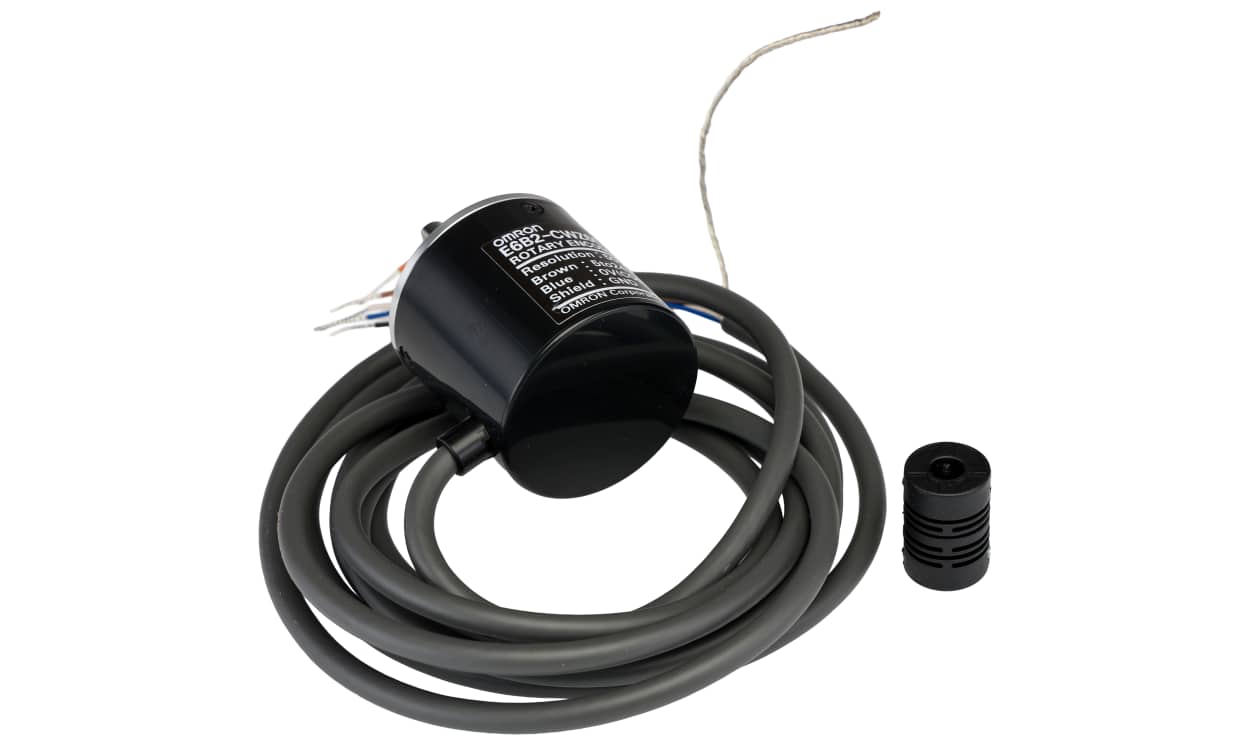

Omron E6B2 Series Incremental Encoder, 500 Pulses Per Revolution, 6mm Shaft Diameter - E6B2-CWZ6C 500P/R 2M

This incremental encoder is a robust and versatile device designed for precise position and speed measurement in various industrial applications. With a solid shaft diameter of 6mm and an operating voltage range of 5 to 24 V DC, this high-precision encoder supports up to 500 pulses per revolution (PPR) and can handle maximum revolutions of 6000 rpm. Its IP50 rating ensures protection against dirt and dust ingress, making it suitable for challenging environments.

Features & Benefits

• Supports a wide supply voltage range from 5 to 24 V DC
• Provides high-resolution measurements with 500 pulses per revolution
• Capable of withstanding radial loads of 30N and thrust loads of 20N
• Enhanced shock resistance due to a metal disk construction

Applications

• Used in robotics for precise movement control
• Effective in conveyor systems for accurate position feedback
• Utilised in CNC machinery for position tracking
• Suitable for industrial automation tasks requiring precise rotational measurement

What is the maximum load capacity for this encoder in different directions?

It can accommodate a radial load of up to 30N and a thrust load of 20N, allowing for versatile use in demanding environments.

What types of output signal types can I expect with this device?

The encoder features an NPN open collector output, ensuring compatibility with a wide range of control systems for efficient signal relay.

How does this encoder ensure operational reliability?

It includes a load short-circuit and reverse connection protection circuit to prevent damage and enhance performance reliability during use.

What operating temperature range does this encoder support?

The device can function in temperatures from -10°C to +70°C, making it suitable for various industrial settings and climate conditions.

Can I easily adjust the starting position of this encoder?

Yes, it features an easy-to-adjust zero index setting with an origin indicating function, simplifying the process of aligning the device to a specific point.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Series	E6B2
Pulses Per Revolution	500
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Supply Voltage	5 → 24 V dc
Shaft Diameter	6mm
IP Rating	IP50
Overall Height	59mm
Switching Frequency	100 kHz
