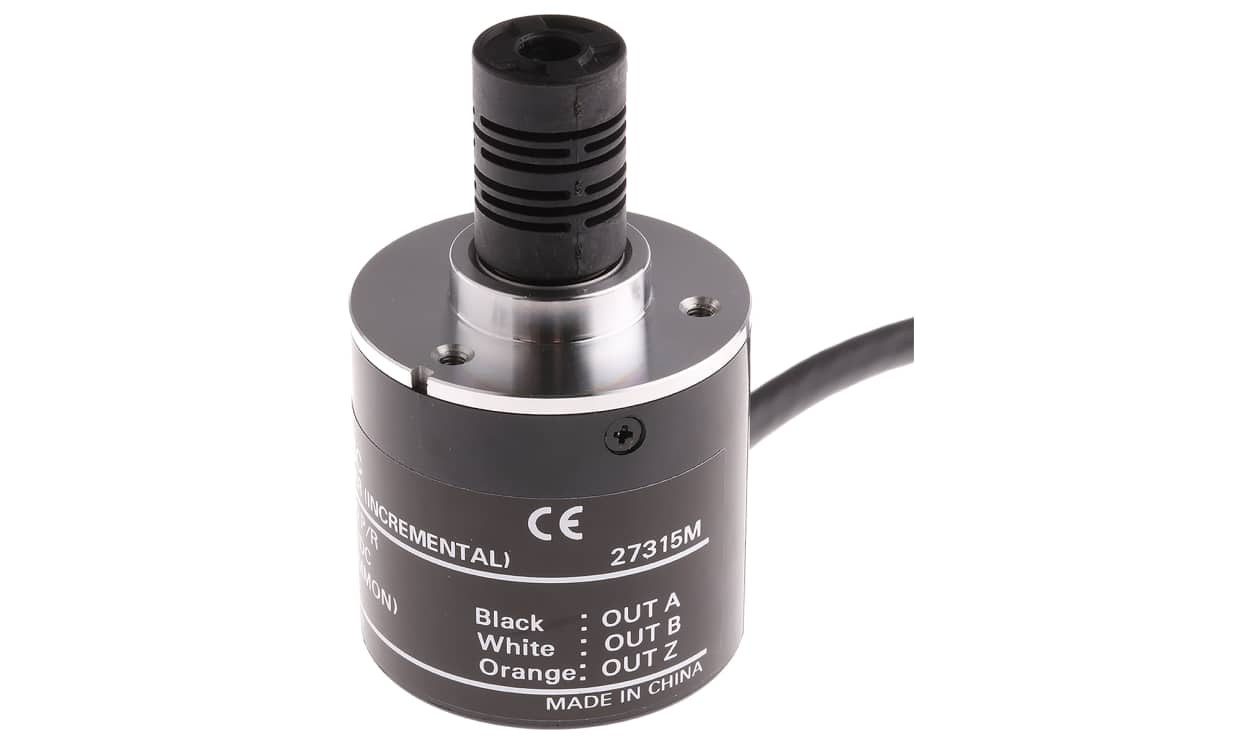

Omron E6B2-CWZ6C 360P/R 2M, E6B2 Series Incremental Incremental Encoder, 360 ppr, NPN Open Collector Signal, Solid Type, 6mm Shaft

Name: Omron E6B2-CWZ6C 360P/R 2M, E6B2 Series Incremental Incremental Encoder, 360 ppr, NPN Open Collector Signal, Solid Type, 6mm Shaft
Brand: OMRON
SKU: E6B2-CWZ6C 360P/R 2M
Availability: OutOfStock

Part Number : E6B2-CWZ6C 360P/R 2M

Encoder, incremental, 360ppr, 5-24 VDC, 3-phase, NPN output

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E6B2 Series Incremental Encoder, 360 Pulses Per Revolution, 6mm Shaft Diameter - E6B2CWZ6C360PR2M

This incremental encoder is designed for precision in various industrial applications. It features an incremental rotary encoder with a solid 6mm shaft diameter. This robust device operates efficiently within a supply voltage range of 5 to 24 V DC, ensuring adaptability across multiple systems.

Features & Benefits

• Operates at a maximum speed of 6000 rpm for high-performance requirement
• 360 pulses per revolution enhance measurement precision
• Features a zero index adjustment for easy setup and calibration
• Switching frequency up to 100kHz supports rapid signal processing

Applications

• Utilised in CNC machines for accurate positioning
• Effective in robotics for precise motion control
• Ideal for conveyor systems to monitor speed and position
• Used in automated manufacturing for process control
• Suitable for audio equipment to maintain signal integrity

What kind of protection does this encoder offer against environmental factors?

It features an IP50 rating, providing protection against dust but not liquid ingress, making it suitable for indoor applications.

Can this encoder handle significant axial and radial loads?

Yes, it can withstand up to 30N in the radial direction and 20N in the thrust direction, allowing for diverse installation scenarios.

What type of output can I expect from this encoder?

It provides an NPN open collector output, which is ideal for interfacing with various control systems.

Is it possible to adjust the zero index on this encoder?

Yes, this encoder includes an easy-to-adjust zero index feature for simplified calibration and origin setting.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Series	E6B2
Pulses Per Revolution	360
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Supply Voltage	5 → 24 V dc
Shaft Diameter	6mm
IP Rating	IP50
Overall Height	59mm
Overall Width	40mm
Switching Frequency	100 kHz
