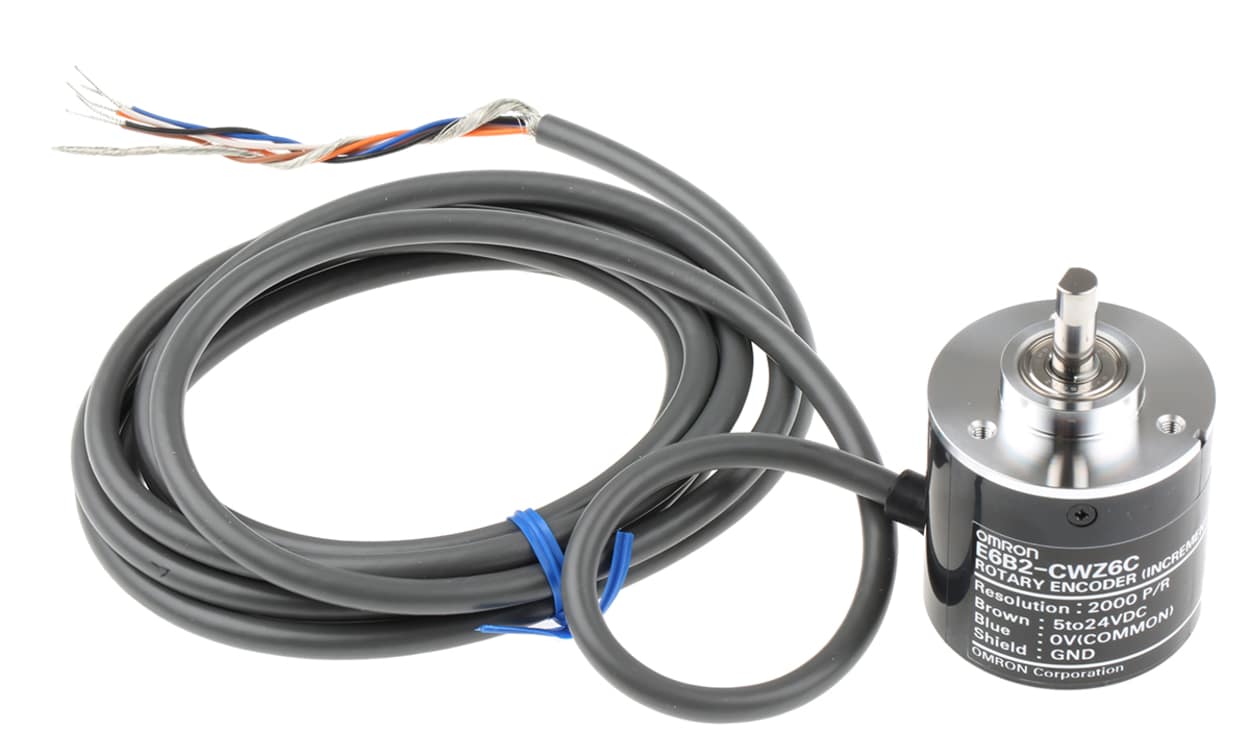

Omron E6B2-CWZ6C 2000P/R 2M, E6B2 Series Incremental Incremental Encoder, 2000 ppr, NPN Open Collector Signal, Solid Type, 6mm Shaft

Name: Omron E6B2-CWZ6C 2000P/R 2M, E6B2 Series Incremental Incremental Encoder, 2000 ppr, NPN Open Collector Signal, Solid Type, 6mm Shaft
Brand: OMRON
SKU: E6B2-CWZ6C 2000P/R 2M
Availability: OutOfStock

Part Number : E6B2-CWZ6C 2000P/R 2M

Encoder, incremental, 2000ppr, 5-24VDC, 3-phase, NPN output, 2m cable

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E6B2 Series Incremental Encoder, NPN Open Collector Output Signal Type, 6000RPM Maximum - E6B2-CWZ6C 2000P/R 2M BY OMS

This incremental encoder is designed for precise rotary position measurement in various industrial applications. It delivers reliable performance with a solid shaft construction suitable for high-speed operations. Offering a pulse count of 2000 per revolution, it provides accurate feedback for motion control systems. The encoder operates within a voltage range of 5 to 24V DC, ensuring versatility across different setups.

Features & Benefits

• High-resolution feedback with 2000 pulses per revolution
• Maximum speeds of 6000 rpm for rapid response
• NPN open collector output allows for easy integration
• Solid shaft construction enhances durability
• IP50 rating protects against dust and foreign objects
• Operates at switching frequencies up to 100 kHz

Applications

• Provides positional feedback in automated assembly lines
• Ensures precise motion control in CNC machinery
• Delivers accurate angular measurements in robotics
• Monitors rotational speed in conveyor systems
• Facilitates efficient product handling in packaging machinery

How is it powered?

It operates within a voltage range of 5 to 24V DC, allowing for flexible power supply options.

What tools are required for installation?

Standard tools for mounting and connecting wires are sufficient for installation, ensuring a straightforward setup.

Is it compatible with existing systems?

Yes, its common NPN open collector output makes it compatible with various electronic systems.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Series	E6B2
Pulses Per Revolution	2000
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Shaft Diameter	6mm
Supply Voltage	5 → 24 V dc
IP Rating	IP50
Overall Height	59mm
Switching Frequency	100 kHz
