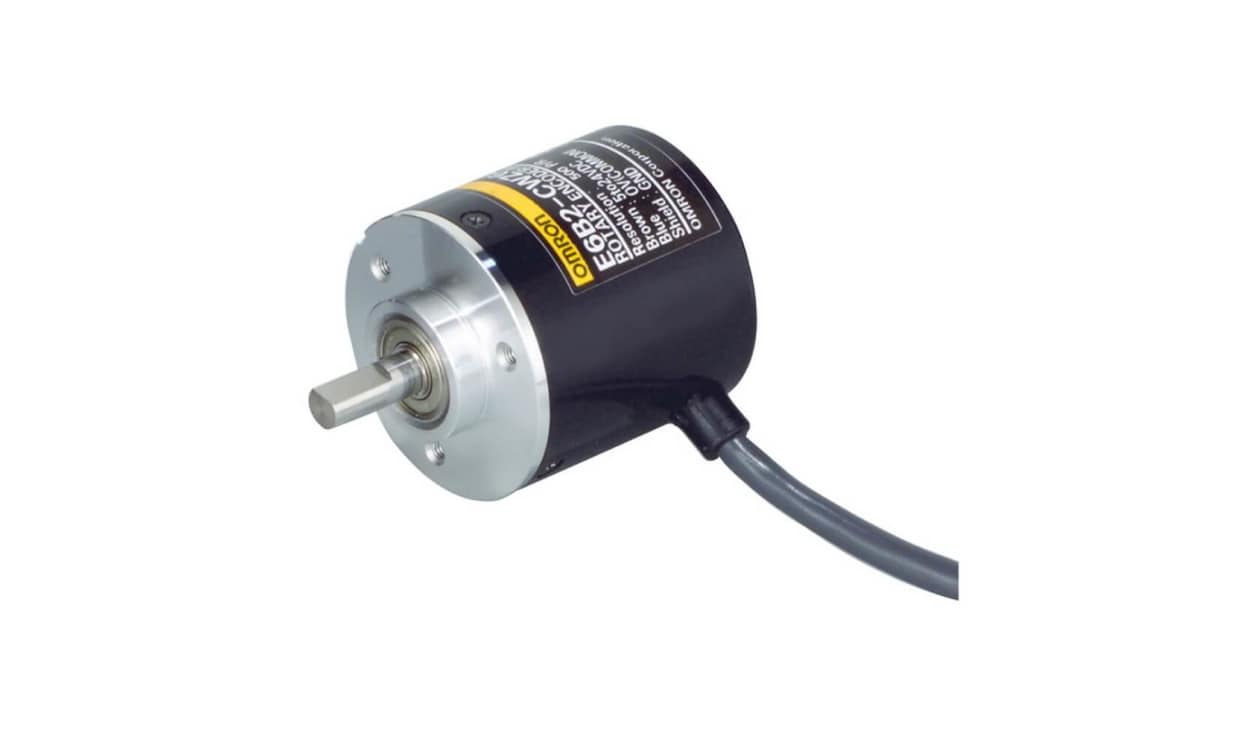

Omron E6B2-CWZ6C 100P/R 2M, E6B2-C Series Incremental Incremental Encoder, 100ppr ppr, NPN Open Collector Signal, Radial, Thrust Type, 6mm

Name: Omron E6B2-CWZ6C 100P/R 2M, E6B2-C Series Incremental Incremental Encoder, 100ppr ppr, NPN Open Collector Signal, Radial, Thrust Type, 6mm
Brand: OMRON
SKU: E6B2-CWZ6C 100P/R 2M
Availability: OutOfStock

Part Number : E6B2-CWZ6C 100P/R 2M

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E6B2-C Series Incremental Encoder, 100 ppr Pulses Per Revolution, 6mm Shaft Diameter - E6B2-CWZ6C 100P/R 2M

This incremental encoder is a compact industrial solution designed for precise motion detection and control. With a diameter of 40mm, it features an incremental design that delivers a resolution of 100 pulses per revolution (PPR), allowing for accurate feedback in various applications. The encoder operates across a supply voltage of 5 to 24V DC and can achieve maximum rotational speeds of 6000 RPM, making it suitable for high-speed operations in automation and control systems.

Features & Benefits

• Provides NPN open collector output for versatile interfacing
• Designed with a radial shaft for easy integration into existing systems
• Achieves high performance with a maximum response frequency of 100kHz
• Boasts an IP50 rating for moderate dust protection, ensuring consistent operation
• Capable of operating effectively within a temperature range from -10°C to +70°C
• Supports a current rating of 80mA for reliable signal transmission

Applications

• Used with robotics for accurate positional feedback
• Ideal for conveyor belt systems to monitor speed and position
• Utilised in CNC machinery for precise control of cutting tools
• Employed in automated packaging equipment for enhanced efficiency
• Perfect for requiring feedback in assembly lines

What is the maximum environmental temperature for operation?

The device can function effectively in environmental conditions ranging from -10°C to +70°C, ensuring reliable performance in varied industrial environments.

How can the incremental encoder improve motion control in my equipment?

With a resolution of 100 PPR and support for high-speed operation up to 6000 RPM, it enables precise motion detection, enhancing the overall control accuracy of your machinery.

What type of output signal should I expect from this encoder?

The encoder provides an NPN open collector output, which is ideal for direct interfacing with most control systems, ensuring straightforward integration.

What is the significance of the IP50 rating for this product?

The IP50 rating indicates that the device is protected against limited dust ingress, making it suitable for use in environments where dust may be present but does not require full waterproof ratings.

How does the supply voltage range affect the operation of the encoder?

The encoder operates within a supply voltage range of 5 to 24V DC, allowing flexibility in various applications and ensuring compatibility with many control systems.

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	100ppr
Series	E6B2-C
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	6mm
Supply Voltage	5 → 24 V dc
Resolution	100
Steps Per Revolution	100ppr
IP Rating	IP50
Minimum Operating Temperature	+70°C
Maximum Operating Temperature	-10°C
Current Rating	80 mA
Switching Frequency	100 kHz
