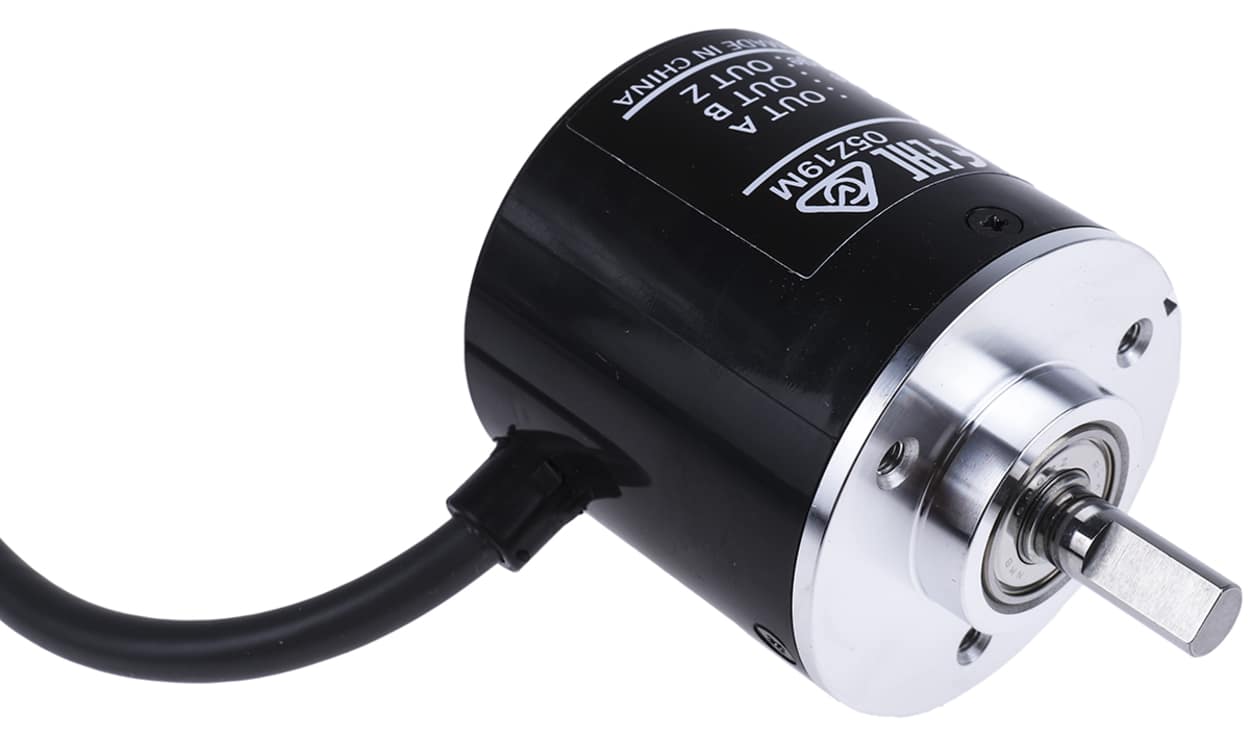

OMRON E6B2-CWZ6C 1000P/R 2M | Incremental Encoder | 1000 ppr, NPN, 6 mm Solid Shaft, IP50

Name: OMRON E6B2-CWZ6C 1000P/R 2M | Incremental Encoder | 1000 ppr, NPN, 6 mm Solid Shaft, IP50
Brand: OMRON
SKU: E6B2-CWZ6C 1000P/R 2M
Availability: OutOfStock

Part Number : E6B2-CWZ6C 1000P/R 2M

The OMRON E6B2-CWZ6C 1000P/R 2M gives 1000 ppr through an NPN open-collector output with a 100 kHz switching frequency. This E6B2 series incremental encoder has a 6 mm solid shaft, IP50 protection and a 5 to 24 V DC supply range.

1000 ppr, NPN open collector
100 kHz switching frequency
5 to 24 V DC supply
6 mm solid shaft, 6000 rpm max
IP50, 59 mm overall height
Cable connection

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E6B2 Series Incremental Encoder, IP50 , NPN Open Collector - E6B2-CWZ6C 1000P/R 2M

This incremental encoder by Omron is a high-quality device designed for measuring accurate rotational movements. With an IP50 rating, it ensures reliable performance even in challenging environments. The encoder technology used is incremental, providing precise readings. The device features a solid 6mm shaft and operates at speeds up to 6000 rpm, making it suitable for a wide range of industrial applications.

Features & Benefits

• NPN open collector output signal type for seamless connectivity
• Supply voltage range of 5 to 24 V DC for versatile power options
• Solid shaft type ensuring durability and stability
• High-frequency operation up to 100 kHz for rapid data transmission
• Easy-to-adjust zero index for precise measurements

Applications

• Robotics and CNC machinery
• Motor control and position sensing

Can it handle high-speed rotations?

Yes, the Omron incremental encoder can handle speeds up to 6000 rpm efficiently.

Will it work with different supply voltages?

Yes, with a voltage range of 5 to 24 V DC, this encoder is compatible with various power sources.

Is the zero-index adjustment user-friendly?

Yes, the zero index adjustment is easy to do, ensuring accurate measurements every time.

Omron Incremental Rotary Encoders

Brand	Omron
Encoder Technology	Incremental
Series	E6B2
Pulses Per Revolution	1000
Maximum Revolutions	6000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Solid
Shaft Diameter	6mm
Supply Voltage	5 → 24 V dc
IP Rating	IP50
Overall Height	59mm
Connection Type	Cable
Switching Frequency	100 kHz
