OMRON E6B2-CWZ5B 500P/R 2M | Incremental Encoder | 500 ppr, PNP Open Collector, 6 mm Shaft

Name: OMRON E6B2-CWZ5B 500P/R 2M | Incremental Encoder | 500 ppr, PNP Open Collector, 6 mm Shaft
Brand: OMRON
SKU: E6B2-CWZ5B 500P/R 2M
Availability: OutOfStock

Part Number : E6B2-CWZ5B 500P/R 2M

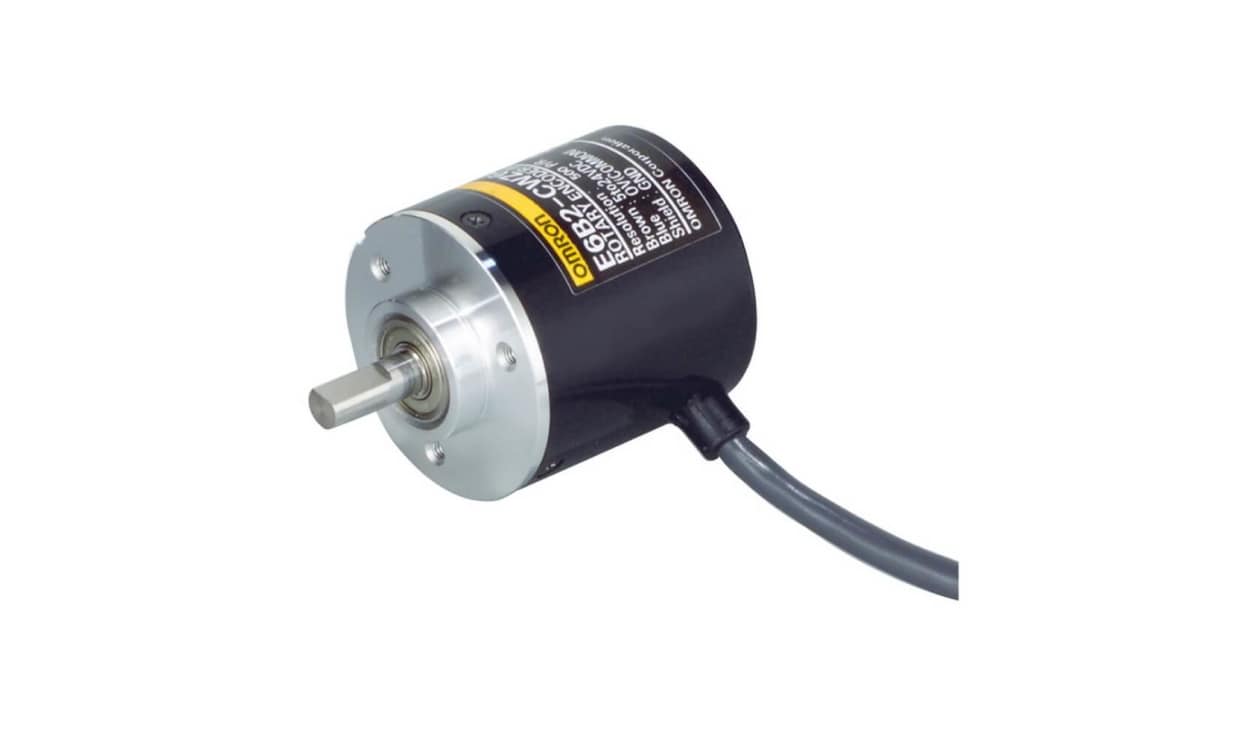

This E6B2-C series incremental encoder, OMRON E6B2-CWZ5B 500P/R 2M, outputs 500 pulses per revolution through a PNP open-collector stage. It fits a 6 mm shaft and is specified for speeds up to 6000 rpm.

E6B2-C series
500 ppr resolution
PNP open collector signal
6 mm shaft
6000 rpm maximum

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron general purpose incremental rotary encoder with large shaft of 40 diameter has a wide operating voltage range from 5 to 24 VDC. A large load of 30 N in the radial direction and 20 N in the thrust direction are permitted. The load short-circuit and reversed connection protecting circuit assure high operation reliability.

Shock resistance strengthened by metal disk
Available with line driver output

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	500ppr
Series	E6B2-C
Maximum Revolutions	6000rpm
Output Signal Type	PNP Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	6mm

OMRON E6B2-CWZ5B 500P/R 2M | Incremental Encoder | 500 ppr, PNP Open Collector, 6 mm Shaft

DOWNLOAD CATALOG

OMRON E6B2-CWZ5B 500P/R 2M | Incremental Encoder | 500 ppr, PNP Open Collector, 6 mm Shaft
