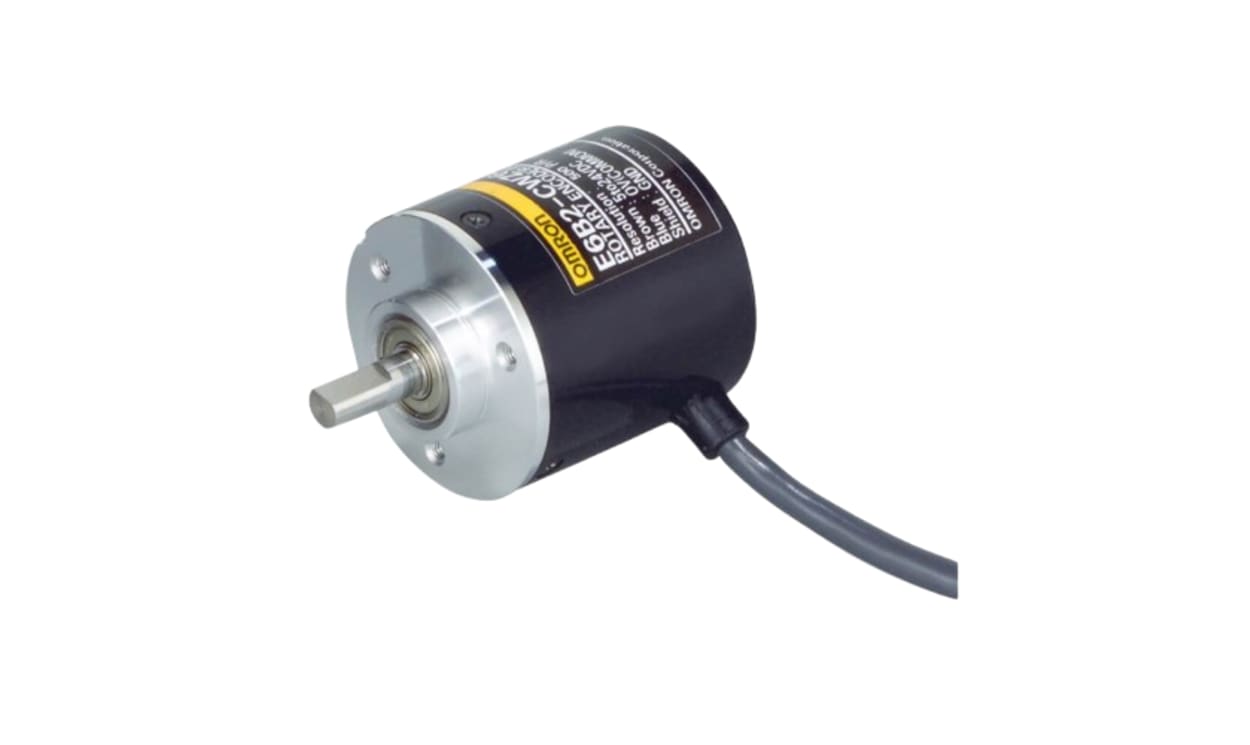

OMRON E6B2-CWZ1X 2000P/R 0.5M | Incremental Encoder | 2000 ppr, Line Driver, 5 V

Name: OMRON E6B2-CWZ1X 2000P/R 0.5M | Incremental Encoder | 2000 ppr, Line Driver, 5 V
Brand: OMRON
SKU: E6B2-CWZ1X 2000P/R 0.5M
Availability: OutOfStock

Part Number : E6B2-CWZ1X 2000P/R 0.5M

OMRON E6B2-CWZ1X 2000P/R 0.5M: an incremental encoder from the E6B2-C series set at 2000 ppr with a Line Driver output. It runs from 5 V and is rated to 6000 rpm.

Resolution: 2000 ppr
Output: Line Driver
Supply voltage: 5 V
Maximum speed: 6000 rpm

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E6B2-C Incremental Encoder, 2000 Pulses Per Revolution, Line Driver Output - E6B2-CWZ1X 2000P/R 0.5M

This incremental encoder is designed to enhance precision in various automation applications. The compact unit, featuring a shaft diameter of 6mm, delivers high-resolution performance with 2000 pulses per revolution. It supports a maximum speed of up to 6000 RPM, making it suitable for high-speed applications in the industrial sector.

Features & Benefits

• Wide supply voltage range from 5 to 24 V DC supports diverse usage
• Adjustable zero index with an origin indicating function for easy calibration
• Robust design withstands radial loads of 30 N and thrust loads of 20 N
• Line driver output allows for signal transmission up to 100m

Applications

• Utilised for precision measurement in industrial automation
• Used in robotics for accurate motor control
• Applicable in CNC machines for enhanced performance tracking
• Suitable for conveyor systems requiring precise speed monitoring

What operating conditions can this encoder withstand?

Operating between -10°C and +70°C ensures performance across varied environments, making it ideal for demanding tasks in industrial settings.

How does the line driver output benefit connectivity?

The line driver output maintains signal integrity over longer distances, enabling reliable data transmission even in complex installations.

What is the significance of the adjustable zero index feature?

This feature simplifies setup and adjustment processes, allowing users to easily achieve the correct orientation without extensive recalibration.

What are the implications of the encoder's IP50 rating?

The IP50 rating indicates a degree of protection against dust ingress, making it suitable for clean environments while still ensuring robust performance against minor contaminants.

How does the encoder’s design contribute to its reliability?

The inclusion of a shock-resistant metal disk enhances durability, ensuring consistent functionality in rigorous operational conditions.

Brand	Omron
Encoder Technology	Incremental
Pulses Per Revolution	2000
Series	E6B2-C
Maximum Revolutions	6000rpm
Output Signal Type	Line Driver
Shaft Type	Radial, Thrust
Supply Voltage	5 V
