Omron E6A2-CS5C 100P/R 2M, E6A2-C Series Incremental Incremental Encoder, 100ppr ppr, NPN Open Collector Signal, Radial, Thrust Type, 4mm

Name: Omron E6A2-CS5C 100P/R 2M, E6A2-C Series Incremental Incremental Encoder, 100ppr ppr, NPN Open Collector Signal, Radial, Thrust Type, 4mm
Brand: OMRON
SKU: E6A2-CS5C 100P/R 2M
Availability: OutOfStock

Part Number : E6A2-CS5C 100P/R 2M

Availability: in stock

Detailed Description
Specifications
Downloads

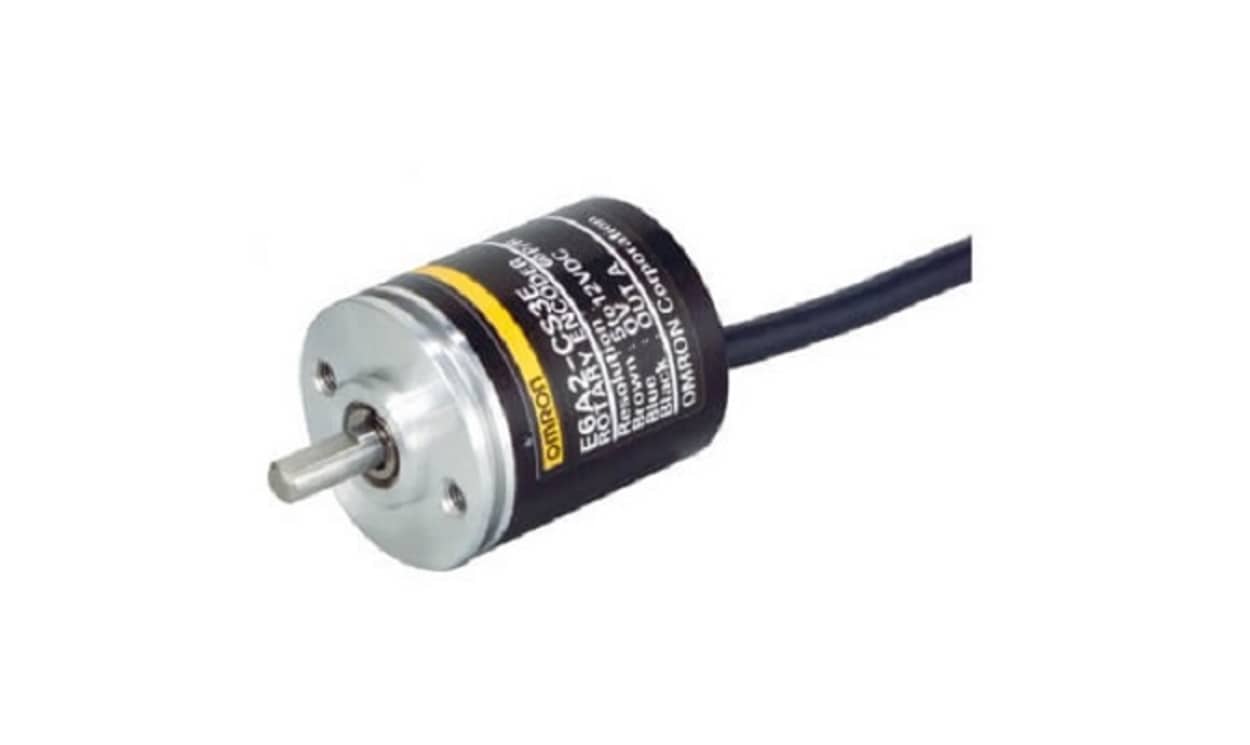

The Omron compact incremental rotary encoder with an external diameter of 25 mm meets positioning requirements. It is a line-up type with a starting point output.

Shock resistance strengthened by metal disk
Ensures maximum measurement precision

Brand	Omron
Encoder Technology	Incremental
Series	E6A2-C
Pulses Per Revolution	100ppr
Maximum Revolutions	5000rpm
Output Signal Type	NPN Open Collector
Shaft Type	Radial, Thrust
Shaft Diameter	4mm
