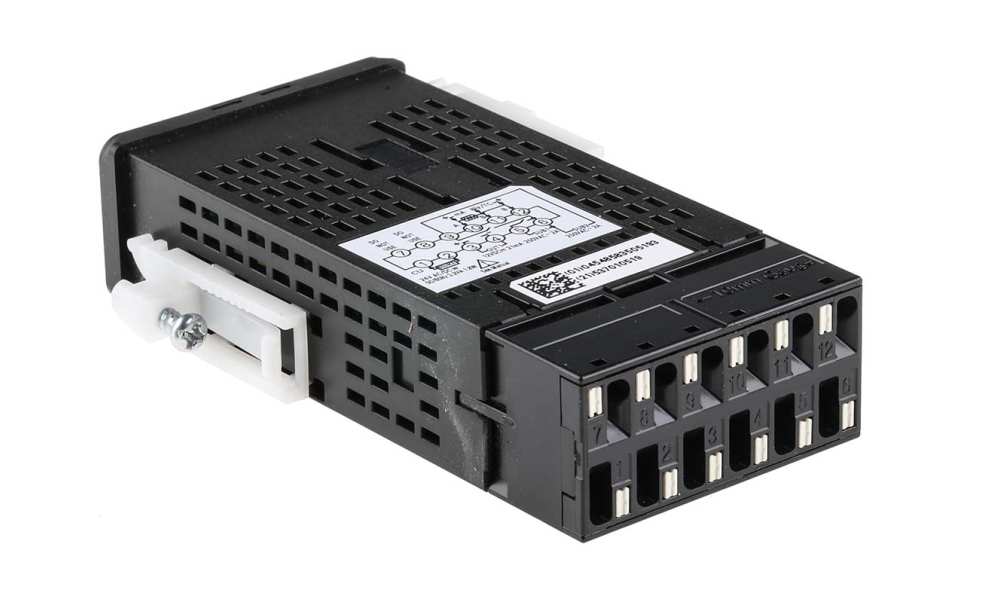

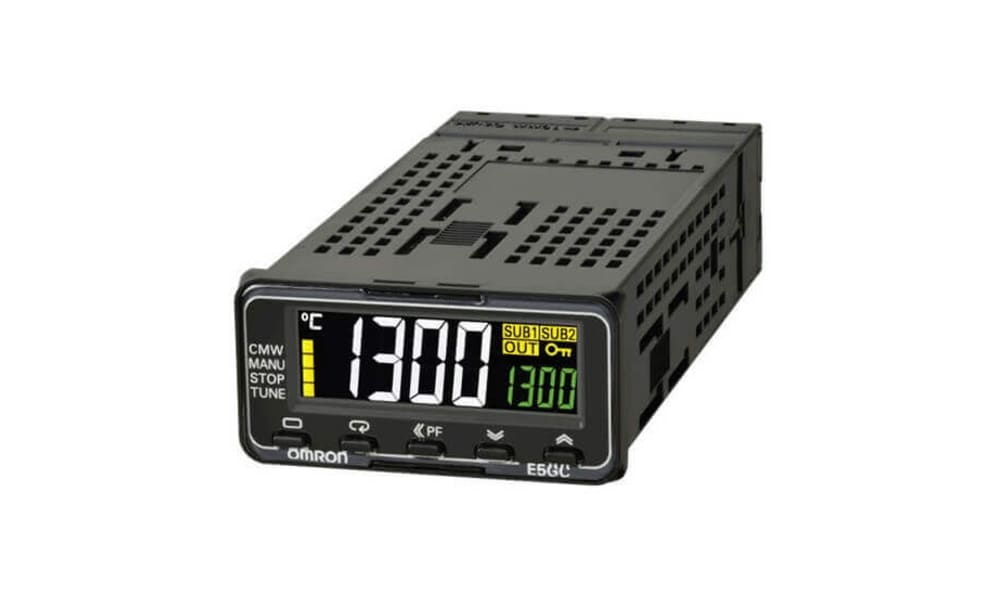

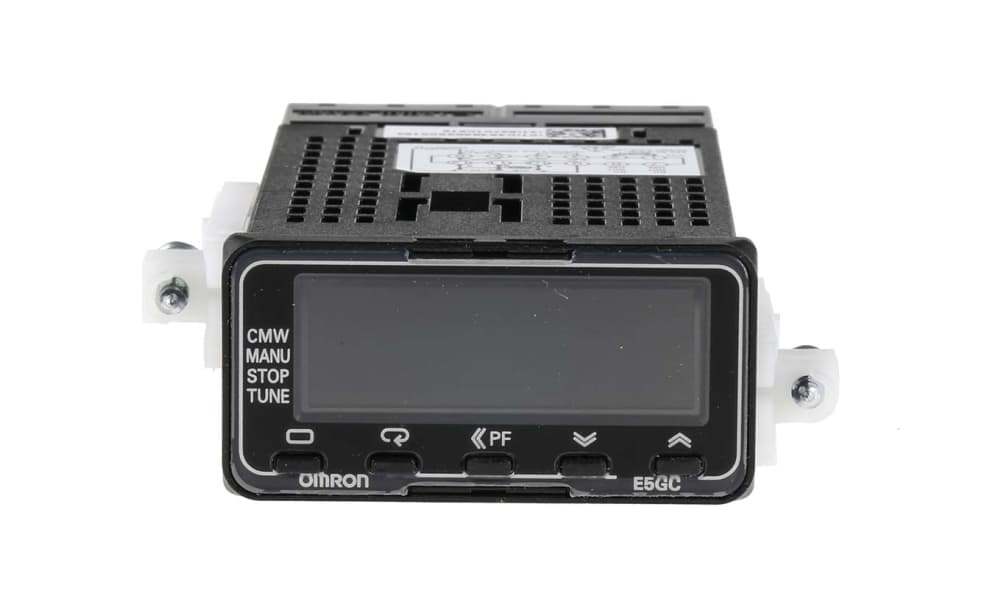

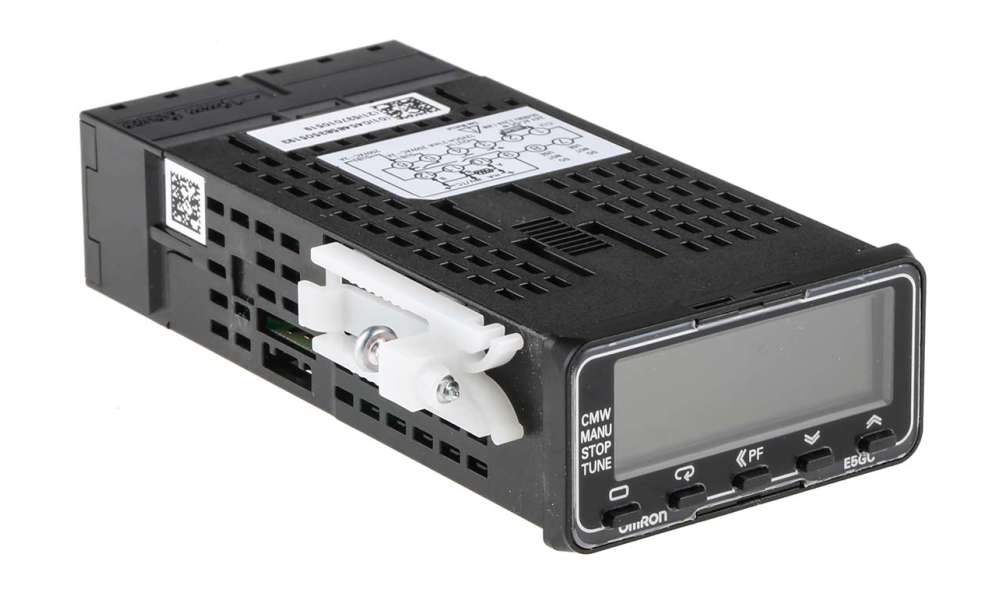

OMRON E5GC-QX2DCM-000 | PID Temperature Controller | 48 x 48 mm, SSR Output, 24 V AC/DC

Name: OMRON E5GC-QX2DCM-000 | PID Temperature Controller | 48 x 48 mm, SSR Output, 24 V AC/DC
Brand: OMRON
SKU: E5GC-QX2DCM-000
Availability: OutOfStock

Part Number : E5GC-QX2DCM-000

The OMRON E5GC-QX2DCM-000 is a 48 x 48 mm panel-mount PID temperature controller from the E5GC series, fitted with one SSR/logic output and powered from 24 V AC/DC; the specified temperature range is -200 to +1300 °C (Type K).

Control: ON/OFF, PID, 2-PID
Input types: universal (platinum RTD, Pt100, thermocouple, analogue)
Protection: IP00, IP20, IP66
Display: LCD, single line, white
Panel depth: 92 mm
Operating temperature: -10 °C to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E5GC Series PID Temperature Controller, 24V AC/DC Supply Voltage, Panel Mounting - E5GC-QX2DCM-000

This PID temperature controller is crucial for accurate temperature management across various industrial applications. With a broad temperature range and versatile input options, it maintains precise control over processes that require strict thermal regulation. Its panel mount design allows for easy integration into different environments, making it suitable for automation, electronics, and electrical industries.

Features & Benefits

• Supports ON/OFF and PID control modes for flexibility
• Universal input compatibility for a range of sensor types
• Solid State Relay facilitates quick and dependable switching
• LCD display ensures clear visibility of parameters
• IP66 rating protects against dust and moisture
• Compact design enables easy installation in confined spaces

Applications

• Temperature monitoring in manufacturing processes
• Ideal for laboratory equipment needing precise thermal control
• Utilised in HV AC systems for environmental management
• Employed in food processing for temperature compliance
• Suitable for plastic extrusion and other thermal applications

What temperature sensors can be used with it?

It is compatible with PT100, thermocouples, and analogue inputs.

How to mount it in my control panel?

The controller is designed for panel mounting, ensuring straightforward installation.

What is the significance of the IP66 rating?

This rating indicates that the device is protected against dust and water ingress.

Is it easy to configure the control settings?

Yes, it features a user-friendly interface for simple setup and adjustments.

What maintenance is required for optimal performance?

Regular checks of connections and calibration adjustments are advisable for accuracy.

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+400 → +800 (B Thermocouple) °C, -200 → +1300 (K Thermocouple) °C, Maximum of +200 (R & S Thermocouple) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	LCD, Single Line
IP Rating	IP00, IP20, IP66
Range	Omron E5GC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5GC
Mounting Type	Panel Mount
Additional Functionality	ON/OFF
Termination Type	Push In
Display Colour	White
Panel Depth	92mm
