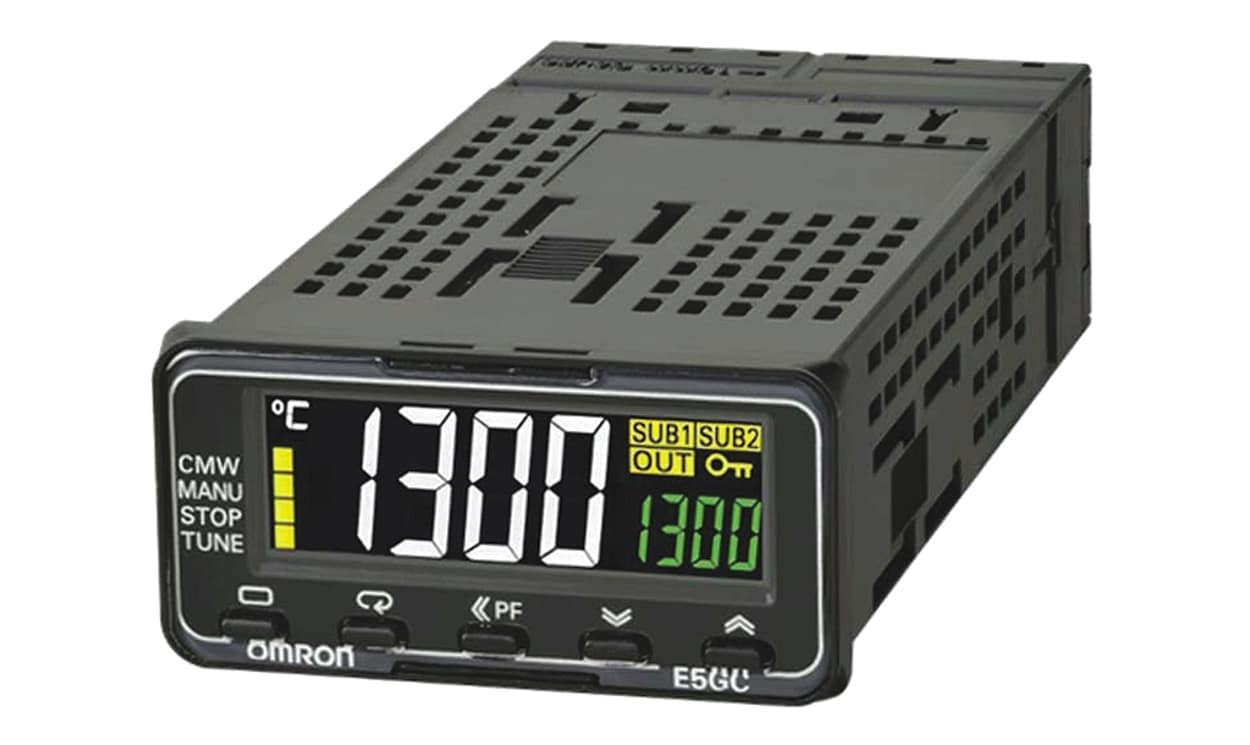

OMRON E5GC-CX2DCM-000 | PID Temperature Controller | 48 x 48 mm, 4-20 mA Output, 24 V AC/DC

Name: OMRON E5GC-CX2DCM-000 | PID Temperature Controller | 48 x 48 mm, 4-20 mA Output, 24 V AC/DC
Brand: OMRON
SKU: E5GC-CX2DCM-000
Availability: OutOfStock

Part Number : E5GC-CX2DCM-000

OMRON's E5GC-CX2DCM-000 brings one 4-20 mA linear output to a 48 x 48 mm E5GC PID temperature controller, supplied at 24 V AC/DC and built for panel-mount use; the listed temperature range is -200 to +1300 °C (Type K).

ON/OFF, PID, 2-PID control
Input types: universal (platinum RTD, Pt100, thermocouple, analogue)
IP rating: IP00, IP20, IP66
Display: LCD, single line, white
Depth behind panel: 92 mm
Ambient operating range: -10 °C to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

E5GC Digital Temperature Controllers (48 x 24mm)

The E5GC series of temperature controllers with a compact body (48 x 24 mm) that is ideal for small equipment, laboratory instruments, and others.

The Easy-to-read high contrast display with white characters and 10.5 mm large characters is visible from large distances and from any angle.

PID temperature controller with auto-tuning
Compact body from 48 x 24 mm
4-digit dual display show PV and SV at the same time
Universal input from TC, Pt sensors, analog current and voltage
High-speed sampling at 50 ms
Easy to set up, and operate intuitively via CX-Thermo without power supply
Functions for diagnosis for secure operations
Easy connections to a PLC with programless communications
Alarm for loop break or PV change rate, heater burnout or sensor burnout detection
Available with screw terminals or screwless clamp terminals for different wiring method
- E5GC-_6 with screw terminal blocks
- E5GC-_C with screwless clamp terminal blocks

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Linear, Analogue, 4-20 mA
Supply Voltage	24 V ac/dc
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+400 → +800 (B Thermocouple) °C, -200 → +1300 (K Thermocouple) °C, Maximum of +200 (R & S Thermocouple) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	LCD, Single Line
IP Rating	IP00, IP20, IP66
Range	Omron E5GC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Series	E5GC
Mounting Type	Panel Mount
Additional Functionality	ON/OFF
Display Colour	White
Panel Depth	92mm
Termination Type	Push In

OMRON E5GC-CX2DCM-000 | PID Temperature Controller | 48 x 48 mm, 4-20 mA Output, 24 V AC/DC
