OMRON E5EC-RX4A5M-000 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC

Name: OMRON E5EC-RX4A5M-000 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5EC-RX4A5M-000
Availability: OutOfStock

Part Number : E5EC-RX4A5M-000

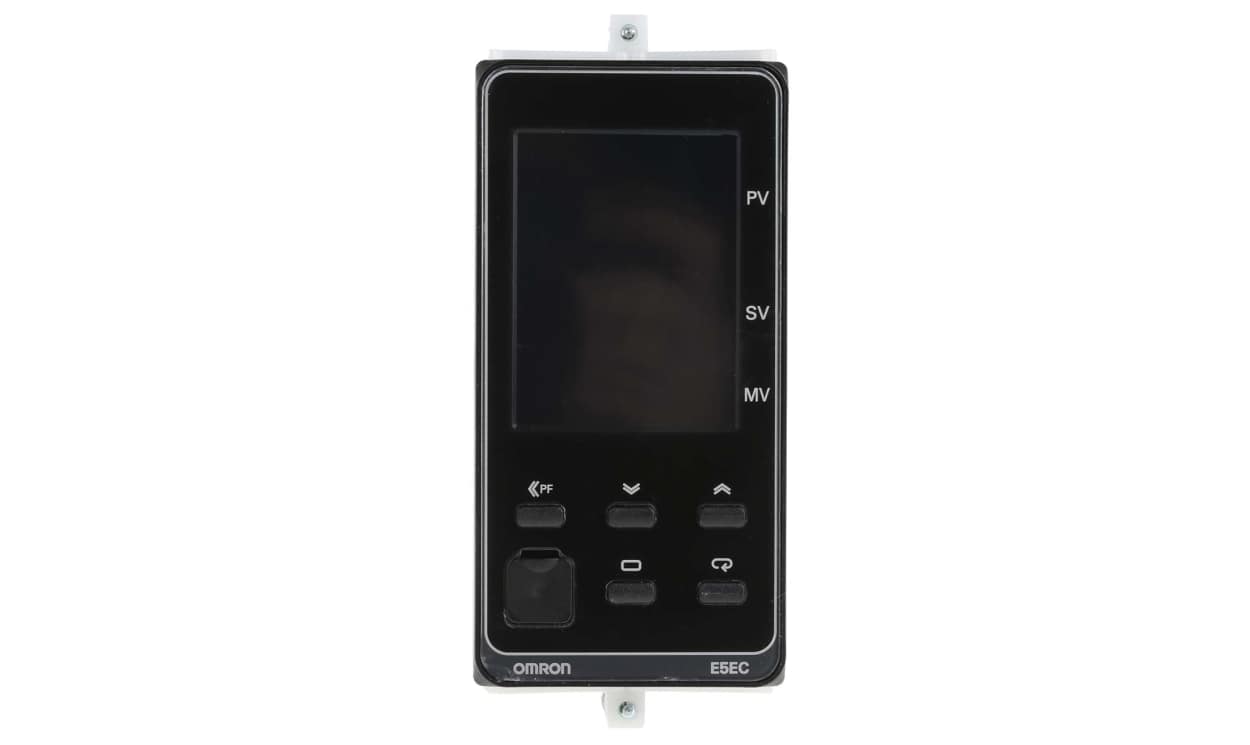

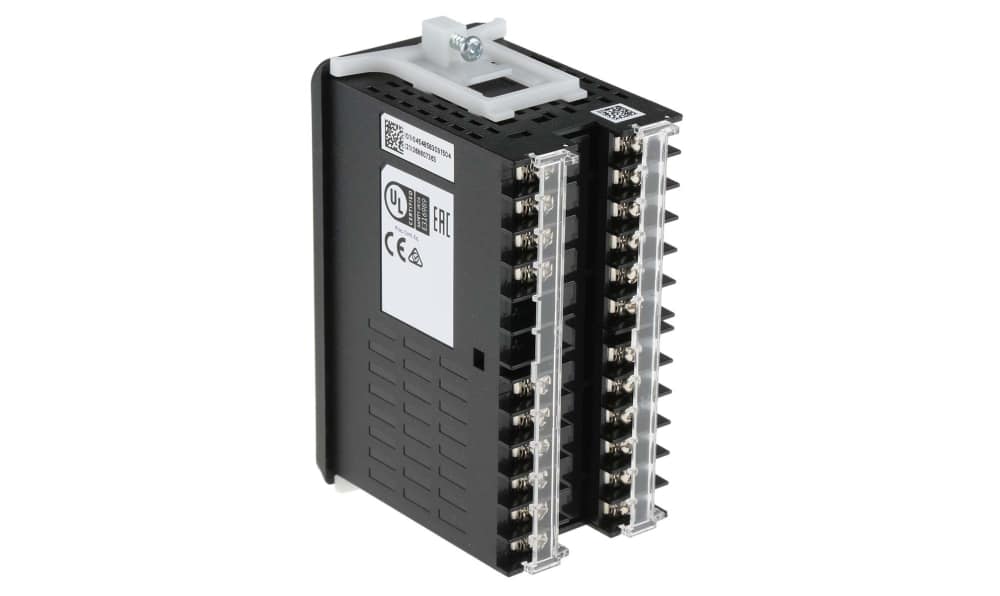

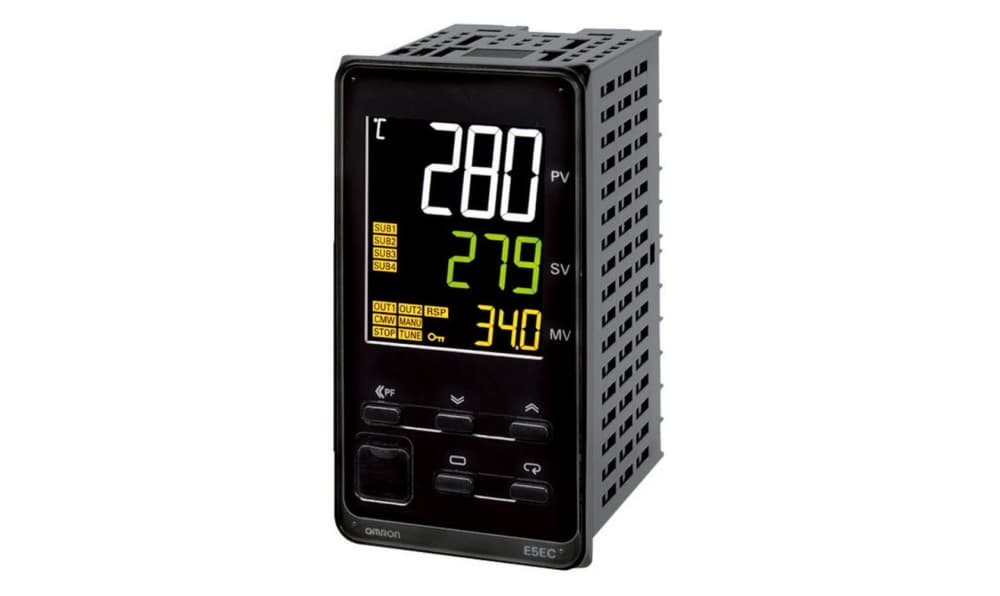

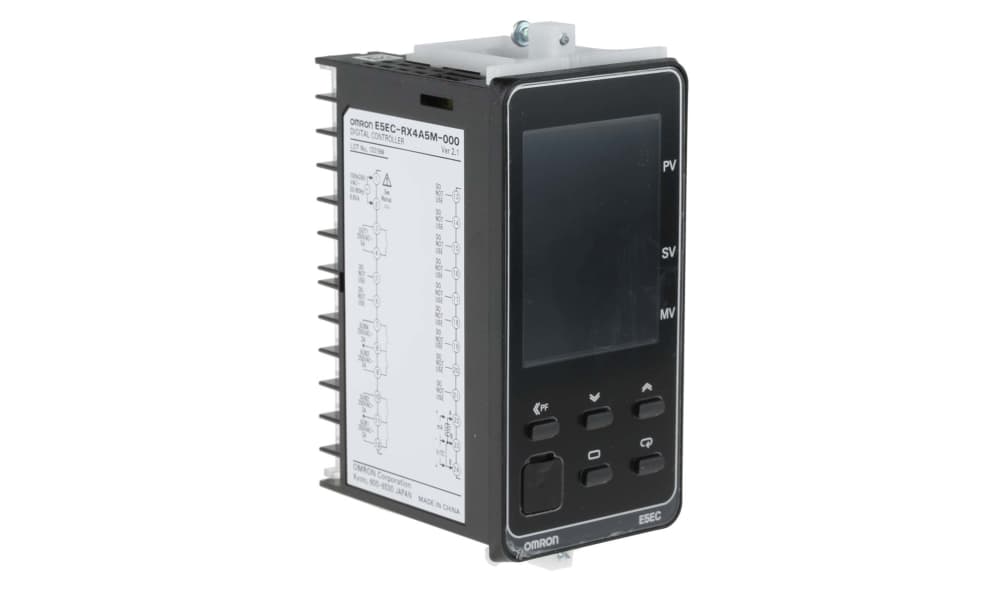

With one relay output and a 100 to 240 V AC supply, the E5EC-series OMRON E5EC-RX4A5M-000 is a panel-mount PID temperature controller measuring 48 x 48 mm; it takes a universal input covering platinum RTD, Pt100, thermocouple and analogue.

Control: ON/OFF, PID, 2-PID
Depth behind panel: 60 mm
Operating temperature: -10 °C to +55 °C
Terminals: screw terminal block
Mounting: panel mount

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E5EC Series PID Temperature Controller, 100 to 240V AC Supply Voltage, -200 to +2300°C Temperature Range - E5EC-RX4A5M-000

This PID Temperature Controller is designed for precise temperature regulation across various industrial applications. It features versatile input options and strong performance in challenging conditions. With its ability to manage a wide temperature range, this controller supports automation tasks in both electrical and mechanical industries.

Features & Benefits

• Supports ON/OFF, PID, and 2-PID control types for operational flexibility
• Digital display for easy monitoring and control
• Compatible with multiple input types, including PT100 and thermocouples
• IP66 rating for improved protection against dust and water
• Designed for panel mounting for straightforward integration into control systems
• Effective operation in temperatures from -10 to +55°C

Applications

• Utilised with heating systems in manufacturing processes
• Maintaining temperature in laboratory equipment
• Employed in food processing for precise cooking temperature control
• Applied in HV AC systems for climate regulation
• Suitable for industrial furnaces requiring high-temperature management

What types of sensors can be connected?

It supports various sensors, including platinum resistance thermometers and thermocouples.

How can it benstallation be performed?

Installation is straightforward with screw terminal blocks for easy wiring.

Is it suitable for outdoor use?

While it has a high IP rating, it is best suited for controlled indoor environments.

What settings can be adjusted after installation?

Users can modify control parameters, including set points and control types.

Does it provide any alarm functions?

Yes, it can be configured to deliver alarm signals based on temperature deviations.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Control Type	ON/OFF, PID, 2-PID Controller
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Range	+10 → +70 °C, +115 → +165 °C, +140 → +260 °C, +60 → +120 °C
Mounting Type	Panel Mount
Series	E5EC
Termination Type	Screw terminal block
Panel Depth	60mm
