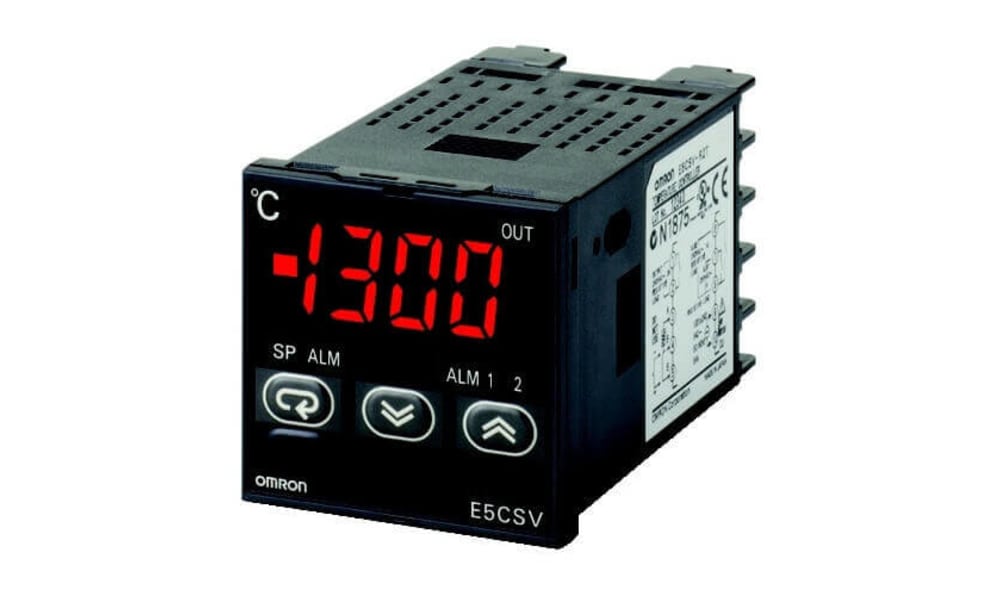

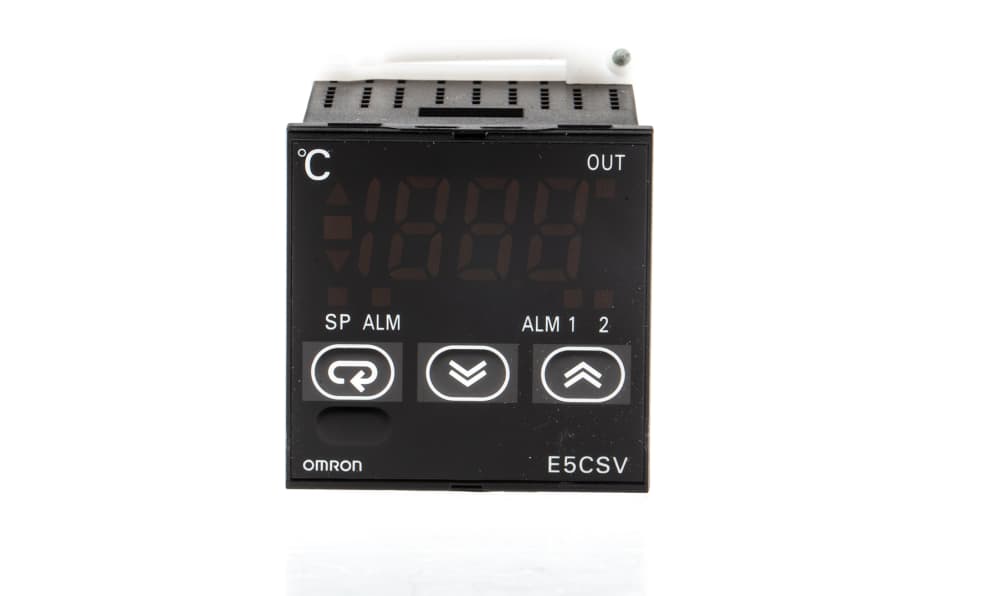

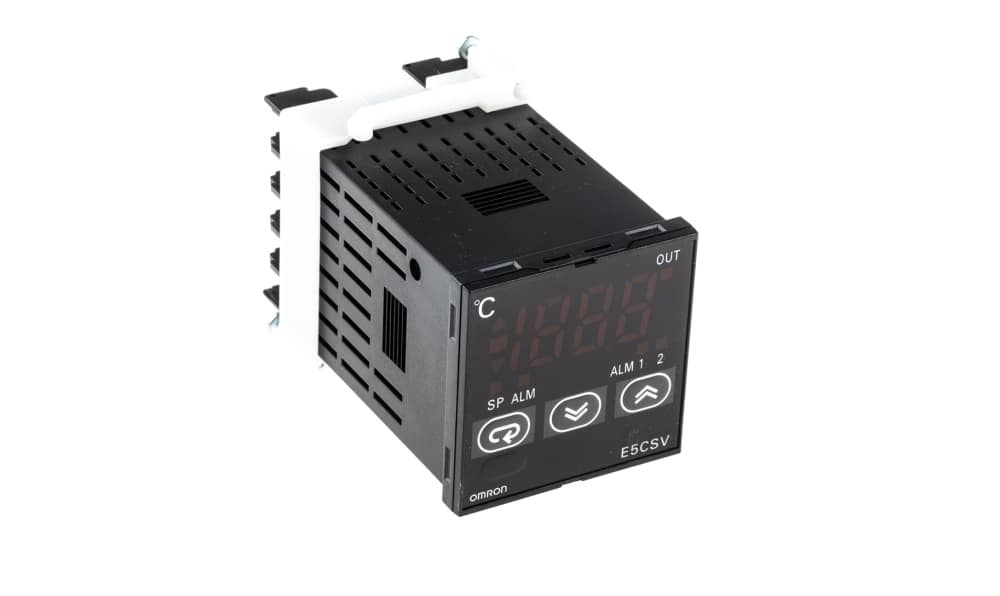

OMRON E5CSV-R1T-500 AC100-240 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC

Name: OMRON E5CSV-R1T-500 AC100-240 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC
Brand: OMRON
SKU: E5CSV-R1T-500 AC100-240
Availability: OutOfStock

Part Number : E5CSV-R1T-500 AC100-240

The OMRON E5CSV-R1T-500 AC100-240 is a 48 x 48 mm panel-mount PID temperature controller from the E5CSV series, fitted with two relay outputs and powered from 100 to 240 V AC; its stated temperature range covers -99 to +1700 °C (thermocouple), -99 to +850 °C (platinum RTD).

Control modes: ON/OFF, PID, 2-PID
Input types: platinum RTD, Pt100, thermocouple
Protection: IP66
Display: single display, black (bottom), red (top)
Depth behind panel: 78 mm
Ambient operating range: -10 °C to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

OMRON PID Temperature Controller, LCD Display, Finger-Safe Case - E5CSV Series - E5CSV-R1T-500 AC100-240

Choose this PID temperature controller from OMRON to make managing your environment a piece of cake. It combines a multi-input thermocouple and platinum resistance thermometer and is capable of measuring between -100°C and +1700°C. You also get a control relay you can link to connected devices such as heaters and fans. Whenever the built-in deviation indicator detects an abnormality, the controller sends a signal to activate heating or cooling. This comes in handy when you need tight regulation of ambient conditions and makes it a great shout for processes like food production that are sensitive to temperature fluctuations.

Features & Benefits

• Finger-safe cover means you don't need to worry about the risk of electric shocks
• Device is self-calibrating thanks to full PID autotune and adaptive self-tune options
• Sealed front panel controls let you use it in dusty or moist conditions, making it a safe bet for harsh settings
• Large, digital LCD display for easy reading

Applications

• Breweries and bottling plants
• Industrial automation
• Pharmaceutical production

Does this PID controller come with an alarm?

Yes. There's a built-in alarm function with a choice of eight different modes, so you can choose the one that best suits your application.

Brand	Omron
Output Type	Relay
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	2
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	Single
IP Rating	IP66
Series	E5CSV
Input Type	Platinum Resistance Thermometer, PT100, Thermocouple
Mounting Type	Panel Mount
Range	-99 → +1700 (Thermocouple) °C, -99 → +850 (Platinum Resistance Thermometer) °C

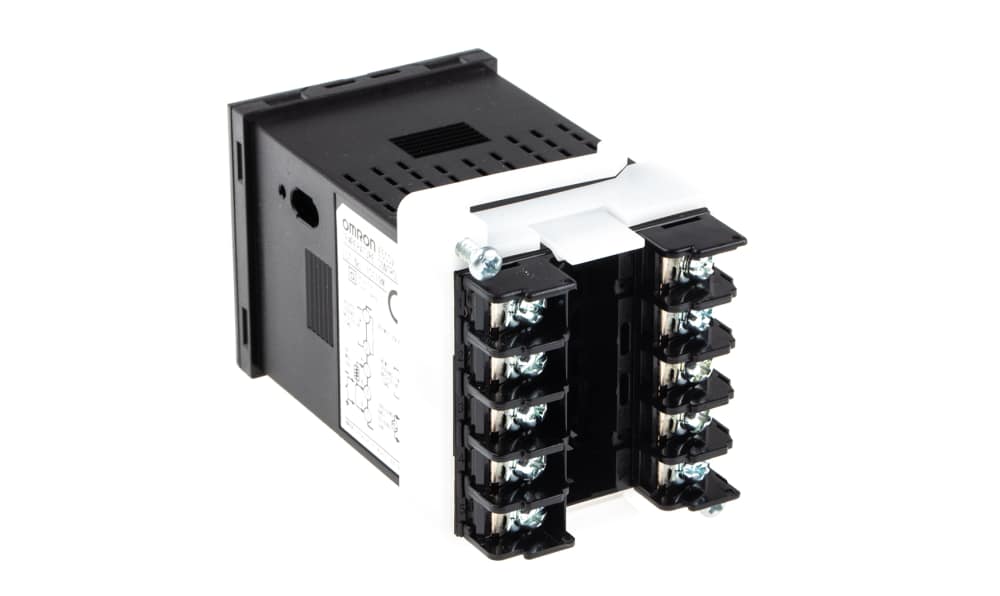

Termination Type	Screw terminal block
Display Colour	Black (Bottom), Red (Top)
Panel Depth	78mm

OMRON E5CSV-R1T-500 AC100-240 | PID Temperature Controller | 48 x 48 mm, Relay Output, 100-240 V AC

DOWNLOAD CATALOG

E5CSV-R1T-500 AC100-240 Datasheet 0900766b815c01b9

E5CSV-R1T-500 AC100-240 Brochure - E5CSV Temperature Controller A700000010145314
