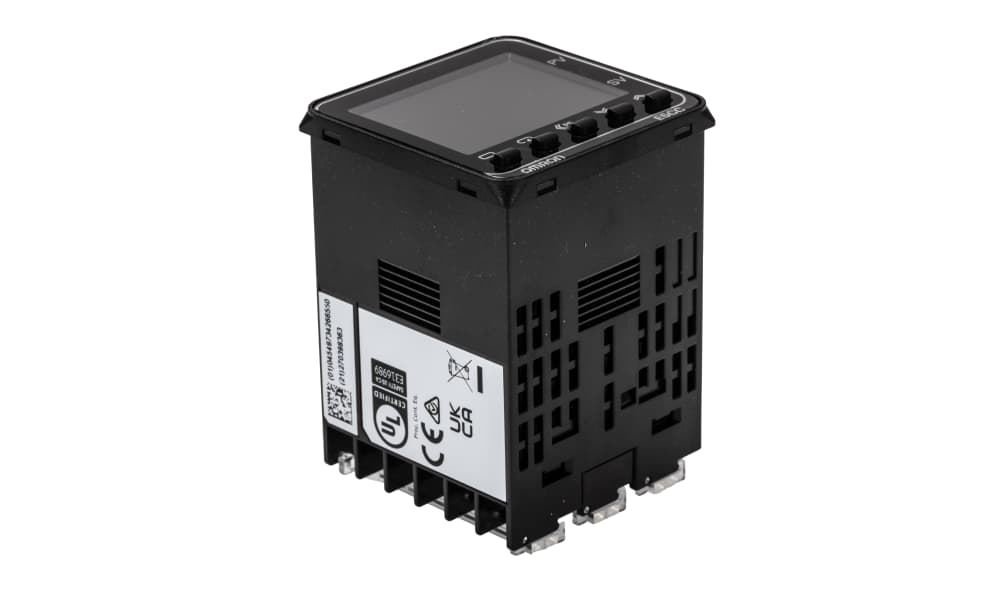

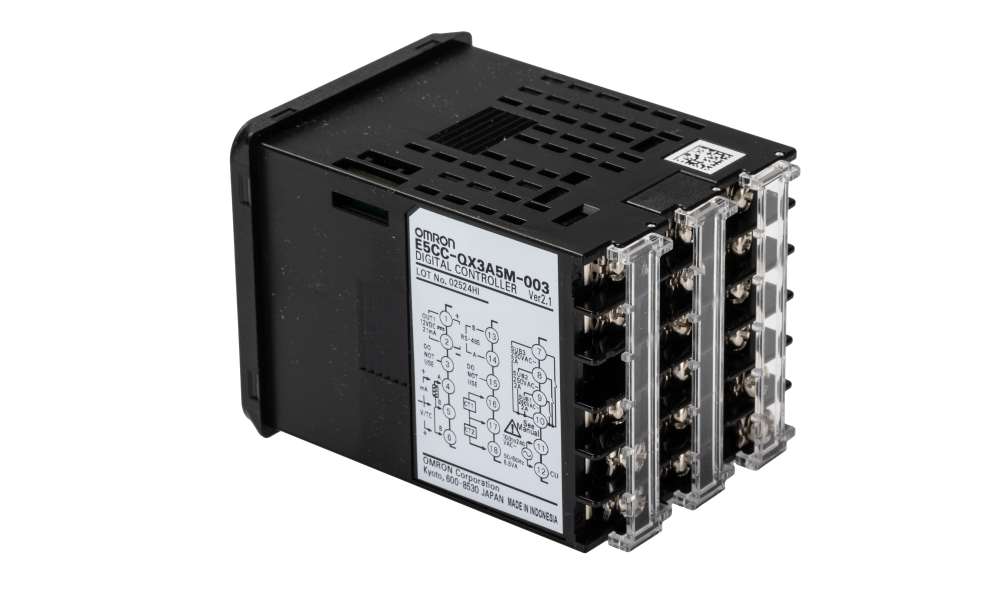

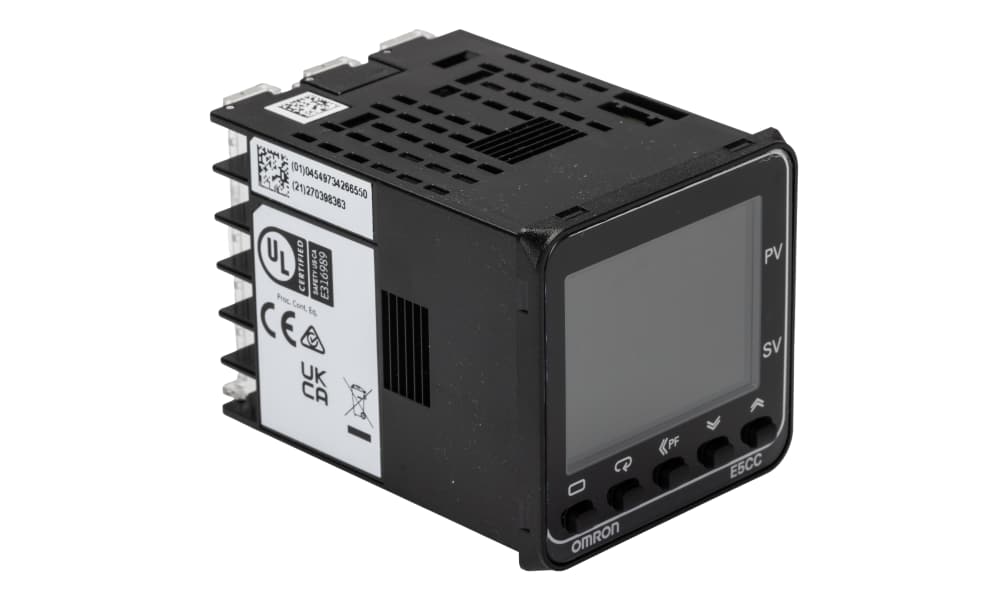

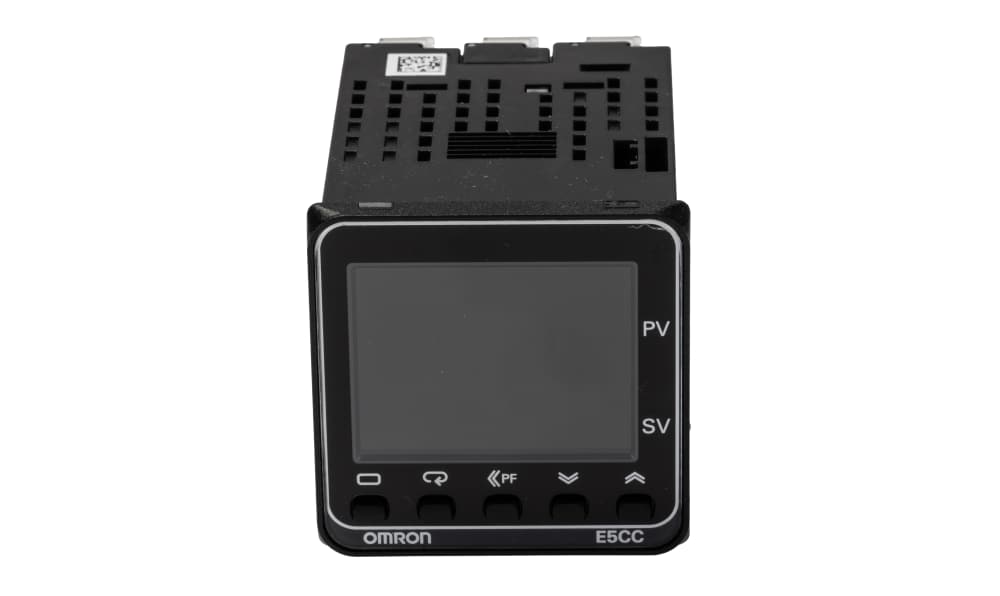

Name: Omron E5CC-QX3A5M-003, E5CC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac
Brand: OMRON
SKU: E5CC-QX3A5M-003
Availability: OutOfStock

Omron E5CC-QX3A5M-003, E5CC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5CC-QX3A5M-003, E5CC Panel Mount PID Temperature Controller, 48 x 48mm, 1 Output SSR, Solid State Relay, Logic, 100 → 240 V ac

Part Number : E5CC-QX3A5M-003

Availability: Sold out

Detailed Description
Specifications

Omron E5CC Series PID Temperature Controller, Solid State Relay/Logic Output, 100 to 240V AC Supply Voltage - E5CC-QX3A5M-003

This PID temperature controller is designed for precise temperature management in various industrial environments. It features universal input capabilities, accommodating multiple sensor types such as thermocouples and platinum resistance thermometers. Efficient ON/OFF and PID control modes enhance its functionality, making it a key component in automation and control applications.

Features & Benefits

• Supports universal input, ensuring compatibility with many sensors
• ON/OFF and PID control modes for flexible temperature management
• 11-segment digital display for straightforward monitoring
• Solid State Relay output optimises control and minimises wear

Applications

• Precise monitoring of temperature-sensitive processes
• Ideal for integration into automation and control systems
• Used in manufacturing processes requiring temperature regulation
• Compatible with various sensor types for maximum adaptability

What sensor types can I use with this controller?

You can use thermocouples, platinum resistance thermometers, and other universal input sensors.

How do I set the temperature range for optimal performance?

The temperature range can be configured through the controller’s settings to suit the specific application.

Can I integrate it into an existing control system?

Yes, its universal input capabilities allow for compatibility with most existing automation and control systems.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-10 → +55 °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital
IP Rating	IP00, IP20, IP66
Series	E5CC
Mounting Type	Panel Mount
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Additional Functionality	ON/OFF, PID Controller
Range	0 → +260 (Infrared Temperature Sensor) °C, 0 → 10 V, 0 → 20 mA, -200 → +2300 (Thermocouple) °C, -200 → +850 (Platinum Resistance Thermometer) °C
Display Colour	White
Termination Type	Screw terminal block
Panel Depth	72.1mm
