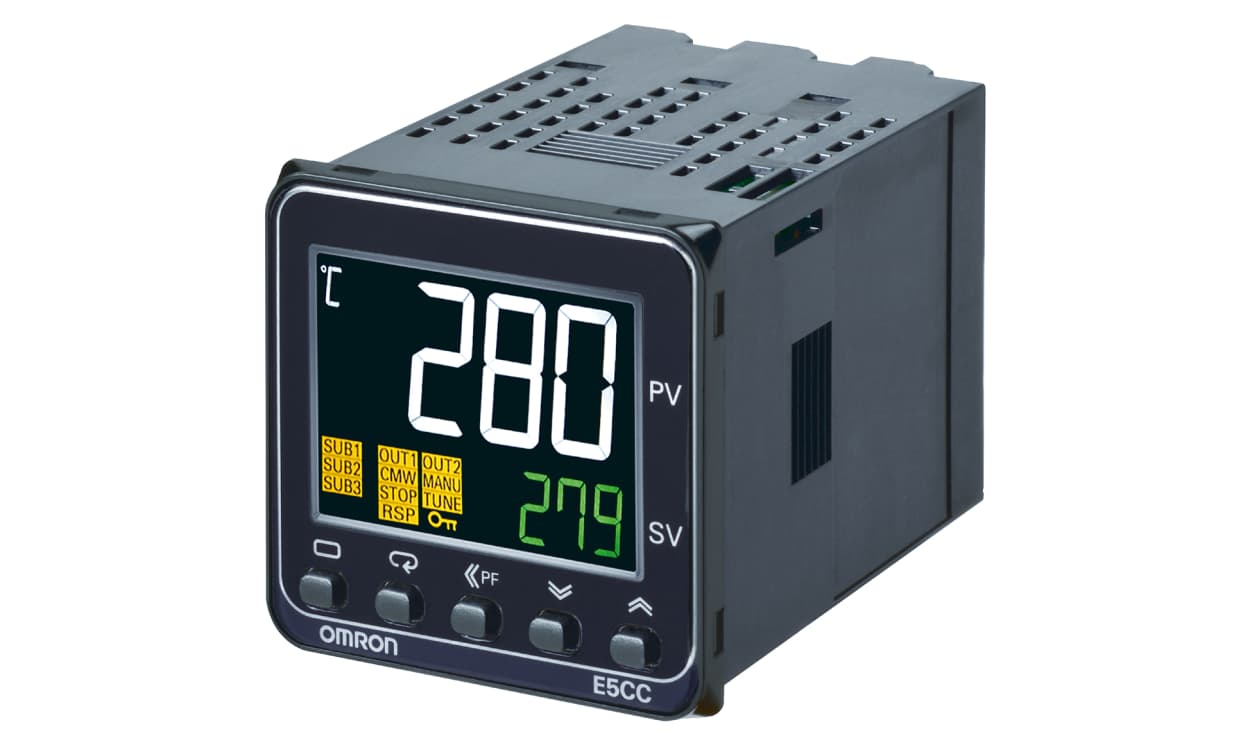

OMRON E5CC-QX2ABM-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

Name: OMRON E5CC-QX2ABM-000 | E5CC PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5CC-QX2ABM-000
Availability: OutOfStock

Part Number : E5CC-QX2ABM-000

This E5CC PID Temperature Controller from OMRON, part number E5CC-QX2ABM-000, pairs an SSR (logic) output with a 100-240 V AC supply, in a 48 x 48 mm format. Supported control on the E5CC-QX2ABM-000: ON/OFF, PID and 2-PID control; sensor connection is via universal input (thermocouple, Pt100, analogue).

1 output with 3 inputs
Listed IP ratings: IP00, IP20, IP66
Readout: 11-Segment Digital Display, white colour
Wiring: push-in
Sensor ranges include Type K -200 to +1300 °C, Type J -100 to +850 °C and Pt100 -200 to +850 °C
Operates from -10 to +55 °C

Availability: in stock

Detailed Description
Specifications
Downloads

E5CC Digital Temperature Controller

Omron’s E5CC range of temperature controllers are a premium PID based controller that support a wide variety of applications. Covering a comprehensive array of sensor inputs including a universal input, Thermocouple, PT as well as Analogue current/voltage inputs. The E5CC range of temperature controllers offer various configurations to exactly suit your program and application requirements for a reliable and easy to use system.

The controller’s compact 48 x 48 mm unit is an industry standard size and can fit in to most typical system units for a fast and effortless installation. Featuring a large white PV display, the E5CC’s large 15.2 mm LED characters provide increased visibility in any application.

PID control within the E5CC range can be set to separately control heating and cooling processes. This functionality allows for programming to control different systems with response characteristics specified to each application. Auto-tuning of PID control functions allow initial parameters to be configured quickly and easily for smooth fast installation and commissioning. The E5CC range also features standard ON/OFF control for more basic applications.

Features and Benefits

• Large white LCD display
• 15.2 mm characters
• Dual PV/SV 4-digit display
• 50 ms high-speed sampling
• Short 60 mm housing case
• Easy connection to PLC with communications that require no programming
• Component communications can be used to link temperature controllers to each other
• Easy set up with CX-Thermo software (Windows XP, 7) without additional power supply via USB conversion cable

Approvals

Omron E5CC Series PID Temperature Controller, 48mm size, 100 to 240 V AC Supply Voltage - E5CC-QX2ABM-000

This PID temperature controller from Omron provides precise temperature management for a variety of industrial applications. With compact dimensions of 48 x 48mm, it integrates seamlessly into panel installations. The controller supports a wide range of thermocouple inputs and operates effectively across a supply voltage of 100 to 240V AC.

Features & Benefits

• Suitable for SSR, solid state relay, and logic outputs
• Capable of ON/OFF, PID, and 2-PID control types
• Wide temperature range supports various thermocouples
• Features an 11-segment digital display for easy reading
• Panel mount design simplifies installation in any setting
• High IP66 rating for resistance against dust and water

Applications

• Used for precise temperature control in industrial ovens
• Ideal for heating systems requiring reliable automation
• Employed in laboratories for experiments needing accurate readings
• Supports various manufacturing processes requiring temperature regulation

What input types can this controller accommodate?

It can handle universal inputs, including thermocouples and platinum resistance thermometers, ensuring flexibility for various applications.

How does this controller ensure reliable performance in challenging environments?

With an IP66 rating, it provides excellent protection against dust and water, making it suitable for use in harsh industrial settings.

What is the maximum operating temperature for this device?

The controller can operate safely up to a maximum temperature of +55 °C, suitable for a wide range of industrial applications.

Can it be used with multiple thermocouple types?

Yes, it supports an extensive variety of thermocouples, including Types B, J, K, N, R, S, T, PLII, and U, allowing it to adapt to specific measurement needs.

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Inputs	3
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	+100 → +1800 (Type B Thermocouple) °C, 0 → +1300 (Type PLII Thermocouple) °C, 0 → +1700 (Type R Thermocouple) °C, 0 → +1700 (Type S Thermocouple) °C, 0 → +2300 (Type W Thermocouple) °C, -100 → +850 (Type J Thermocouple) °C, -100 → +850 (Type L Thermocouple) °C, -199.9 → +400 (Type T Thermocouple) °C, -199.9 → +400 (Type U Thermocouple) °C, -199.9 → +500 (JPt100) °C, -200 → +1300 (Type K Thermocouple ) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +850 (Pt100) °C
Control Type	ON/OFF, PID, 2-PID Controller
Display Type	11-Segment Digital Display
IP Rating	IP00, IP20, IP66
Series	E5CC
Range	Omron E5CC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Mounting Type	Panel Mount
Additional Functionality	ON/OFF, PID Controller
Display Colour	White
Termination Type	Push In
