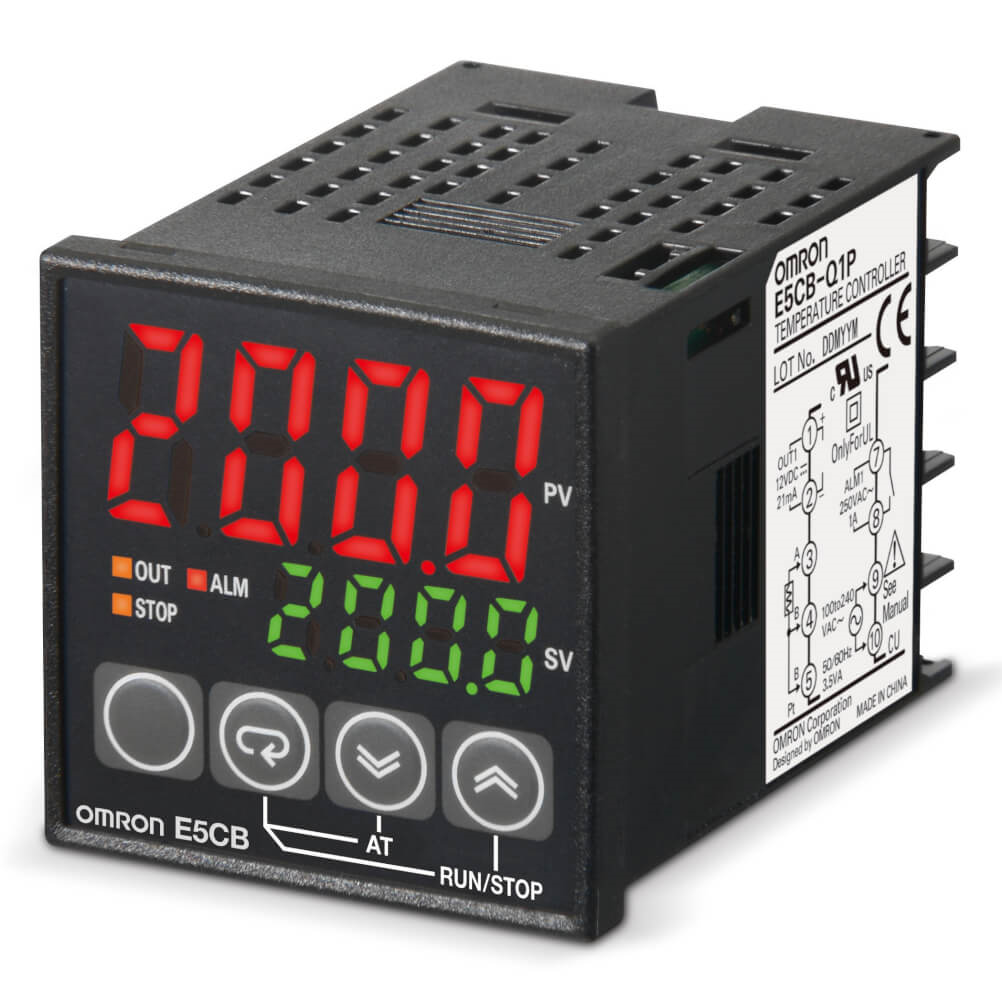

OMRON E5CB-Q1TC 100-240 VAC | E5CB PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

Name: OMRON E5CB-Q1TC 100-240 VAC | E5CB PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC
Brand: OMRON
SKU: E5CB-Q1TC 100-240 VAC
Availability: OutOfStock

Part Number : E5CB-Q1TC 100-240 VAC

With an SSR (logic) output and a 100-240 V AC supply, the OMRON E5CB-Q1TC 100-240 VAC is an E5CB PID Temperature Controller in a 48 x 48 mm format. Part E5CB-Q1TC 100-240 VAC takes thermocouple input and offers ON/OFF, PID and 2-PID control.

12 VDC pulsed control output
One alarm relay
1 output
Panel depth of 60 mm
Available with a communication module
Wiring: screw terminal block

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron E5CB Series PID Temperature Controller, 100 to 240V AC Supply Voltage, Panel Mounting - E5CB-Q1TC AC100-240

This PID temperature controller is designed for effective heater control and industrial applications, providing precise temperature regulation. With functionalities such as ON/OFF and PID control modes, it is ideal for various settings, from factory automation to laboratory environments. Its robust design and versatility make it a valuable tool for professionals in electrical, mechanical, and automation sectors.

Features & Benefits

• Large LED display for enhanced visibility
• Response time of 250ms with fast sampling
• Temperature control range from -200 to +1700°C
• Suitable for panel mounting, facilitating easy installation
• Supports multiple input options, including thermocouple connectivity
• IP66 rating ensures protection against dust and moisture

Applications

• Accurate temperature management in heating systems
• Manufacturing processes requiring precise thermal control
• Laboratory settings with stringent temperature monitoring
• HV AC systems for improved environmental control

How to adjust the settings for temperature control?

You can modify the settings using the digital adjustments available on the front panel keys.

Is it compatible with various sensor types?

Yes, it supports both thermocouple and platinum resistance thermometer inputs.

What is the maximum temperature range it can handle?

It functions effectively within a temperature range of -200 to +1700°C.

Can it be mounted in confined spaces?

Yes, as a panel mount controller, it is designed for installation in limited spaces while ensuring adequate airflow around the unit.

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	100 → 240 V ac
Size	48 x 48mm
Number of Outputs	1
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Display Type	LED
IP Rating	IP00, IP20, IP66
Mounting Type	Panel Mount
Additional Functionality	ON/OFF
Range	Omron E5CB
Input Type	Thermocouple
Series	E5CB
Panel Depth	60mm
Display Colour	Red/Green
Termination Type	Screw terminal block

Temp. controller, LITE, 1/16DIN (48 x 48mm), 12 VDC pulsed output, ON/OFF or PID Control, Thermocouple input, 1 Alarm Rel., 100-240 VAC

OMRON E5CB-Q1TC 100-240 VAC | E5CB PID Temperature Controller | 48x48 mm, SSR Output, 100-240 V AC

DOWNLOAD CATALOG

E5CB-Q1TC 100-240 VAC Datasheet 0900766b815c01b6

E5CB-Q1TC 100-240 VAC Brochure - E5CB Temperature Controller A700000011915831
