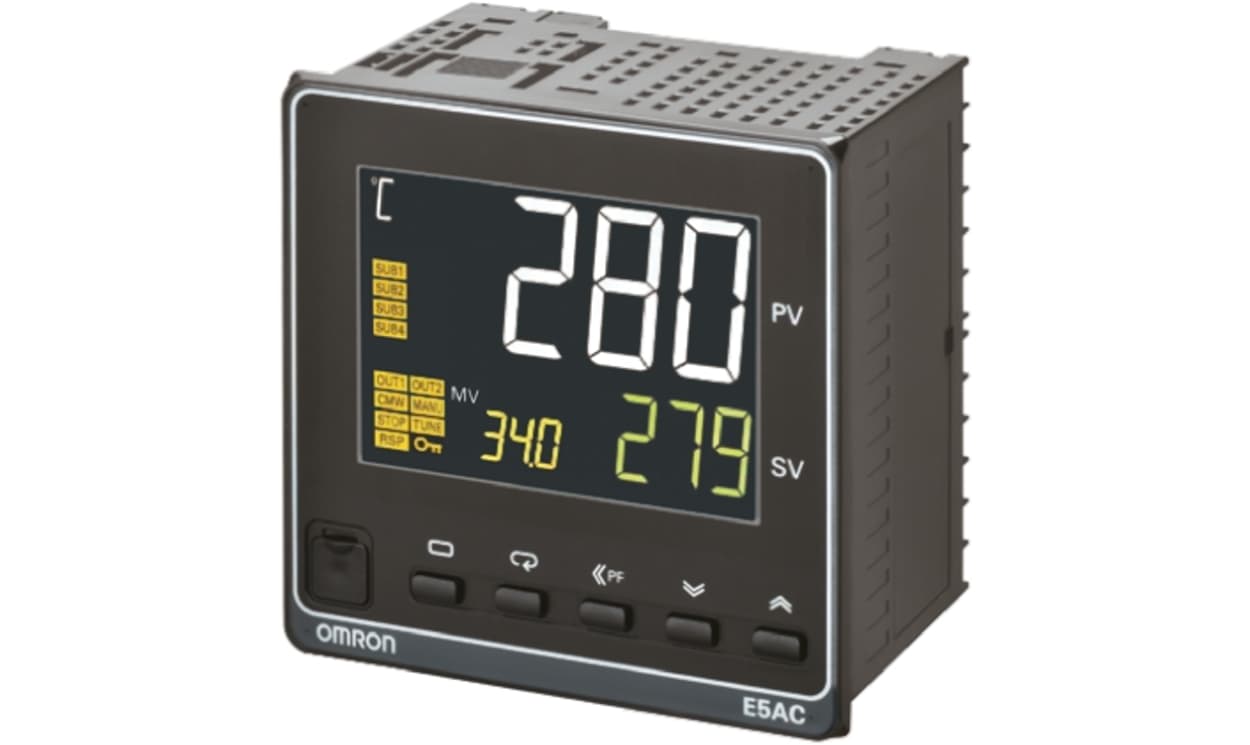

Name: Omron E5AC-QX4D5M-000, E5AC Panel Mount PID Temperature Controller, 96 x 96mm, 1 Output SSR, Solid State Relay, Logic, 24 V ac/dc Supply
Brand: OMRON
SKU: E5AC-QX4D5M-000
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron E5AC-QX4D5M-000, E5AC Panel Mount PID Temperature Controller, 96 x 96mm, 1 Output SSR, Solid State Relay, Logic, 24 V ac/dc Supply

Part Number : E5AC-QX4D5M-000

Availability: Sold out

Detailed Description
Specifications

E5AC Digital Temperature Controllers (96 x 96mm)

The Temperature Controllers Series E5AC set new global standards in the crucial areas of precision, user friendliness and control performance.
This series will save you time and effort in set-up and operation, while enabling faster and more accurate monitoring/control of your process.
The high-visibility display of the new series is also extremely easy to read and virtually eliminates any possibility for human error.

High-contrast, white LCD display visible from large distances and from any angle
Easy to set up and operate intuitively via CX-Thermo without power supply
High-speed sampling at 50 ms
Functions for diagnosis for secure operations
Useful timer and logic operation functions eliminating the need of a PLC
Tool ports are provided both on the top panel and the front panel
Short body with depth of only 60 mm

Omron - E5GC, E5CC, E5EC, E5AC, E5DC, E5CN & E5CB Ranges

Brand	Omron
Output Type	SSR, Solid State Relay, Logic
Supply Voltage	24 V ac/dc
Size	96 x 96mm
Number of Outputs	1
Minimum Operating Temperature	-10°C
Maximum Operating Temperature	+55°C
Temperature Range	-200 → +2300 °C
Control Type	ON/OFF, PID, 2-PID Controller
Communication Module Available	Yes
Display Type	LCD
IP Rating	IP00, IP20, IP66
Series	E5AC
Mounting Type	Panel Mount
Additional Functionality	ON/OFF
Range	Omron E5AC
Input Type	Universal, Platinum Resistance Thermometer, PT100, Thermocouple, Analogue
Display Colour	White
Termination Type	Screw terminal block
Panel Depth	60mm
