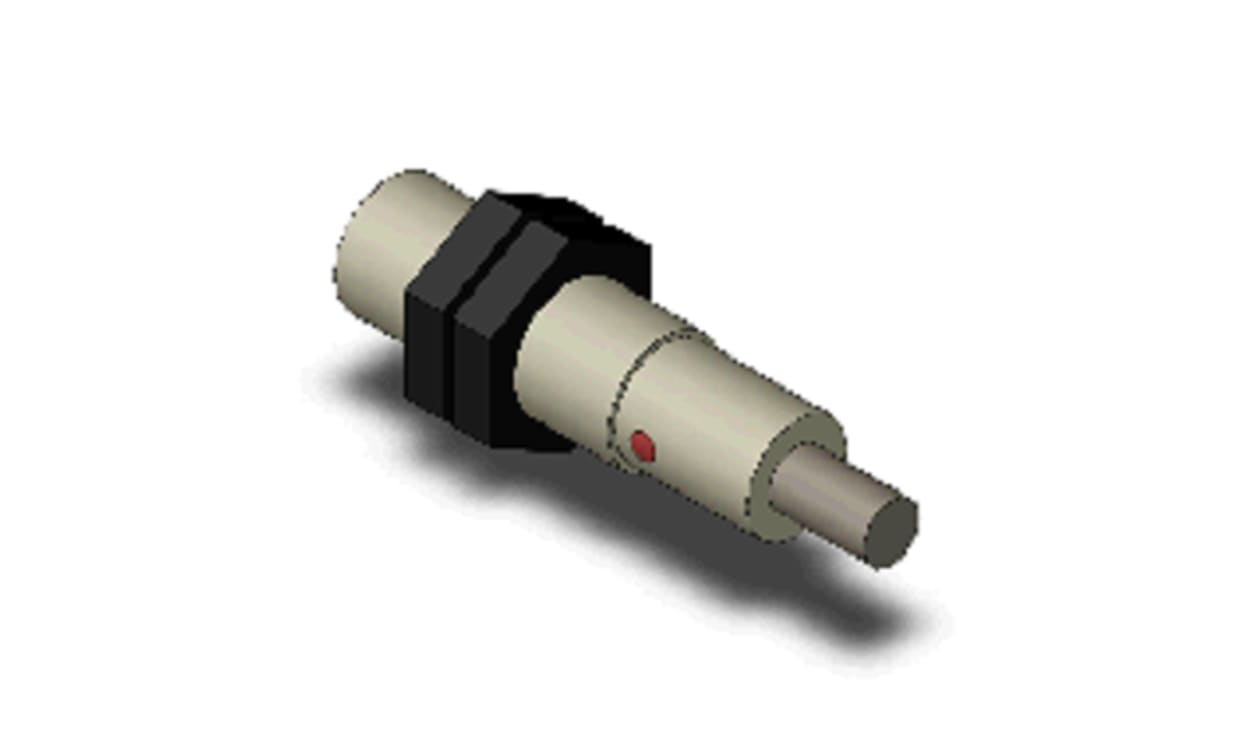

OMRON E2F-X2Y1 2M | Threaded Inductive Proximity Sensor | M12, 2 mm Sensing, 2-Wire NO

Name: OMRON E2F-X2Y1 2M | Threaded Inductive Proximity Sensor | M12, 2 mm Sensing, 2-Wire NO
Brand: OMRON
SKU: E2F-X2Y1 2M
Availability: OutOfStock

Part Number : E2F-X2Y1 2M

Connected by a 2 m pre-wired cable, the OMRON E2F-X2Y1 2M inductive proximity sensor detects targets at up to 2 mm from its M12 threaded body and switches a 2-wire normally open output. This E2F-X2Y1 2M unit is powered from 24 to 240 V AC, rated IP68 and specified for -25 to +70 °C.

M12 thread size, 2 mm detection range
Output: 2-Wire NO, switching current 5 to 100 mA
Supply voltage 24 to 240 V AC; connection by a 2 m pre-wired cable
IP68 rated, operating temperature -25 to +70 °C
Flush mounting (shielded), switching frequency 25 Hz
Length 43 mm

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron proximity sensor is a inductive, AC 2-wire model has plastic body material and 2 mm sensing distance, shielded type.

Electrical connection -2 m PVC cable
Normally open (NO) contact configuration
M12 size

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	2 mm
Output Function	NO
Digital Switching Output Type	2-Wire
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	24 → 240 V ac
IP Rating	IP68
Length	43mm
Mounting Type	Flush
Minimum Operating Temperature	-25°C
Switching Frequency	25 Hz
Maximum Operating Temperature	+70°C
Maximum Switching Frequency	25Hz
Shielding	Shielded
Switching Current	5 → 100 mA
