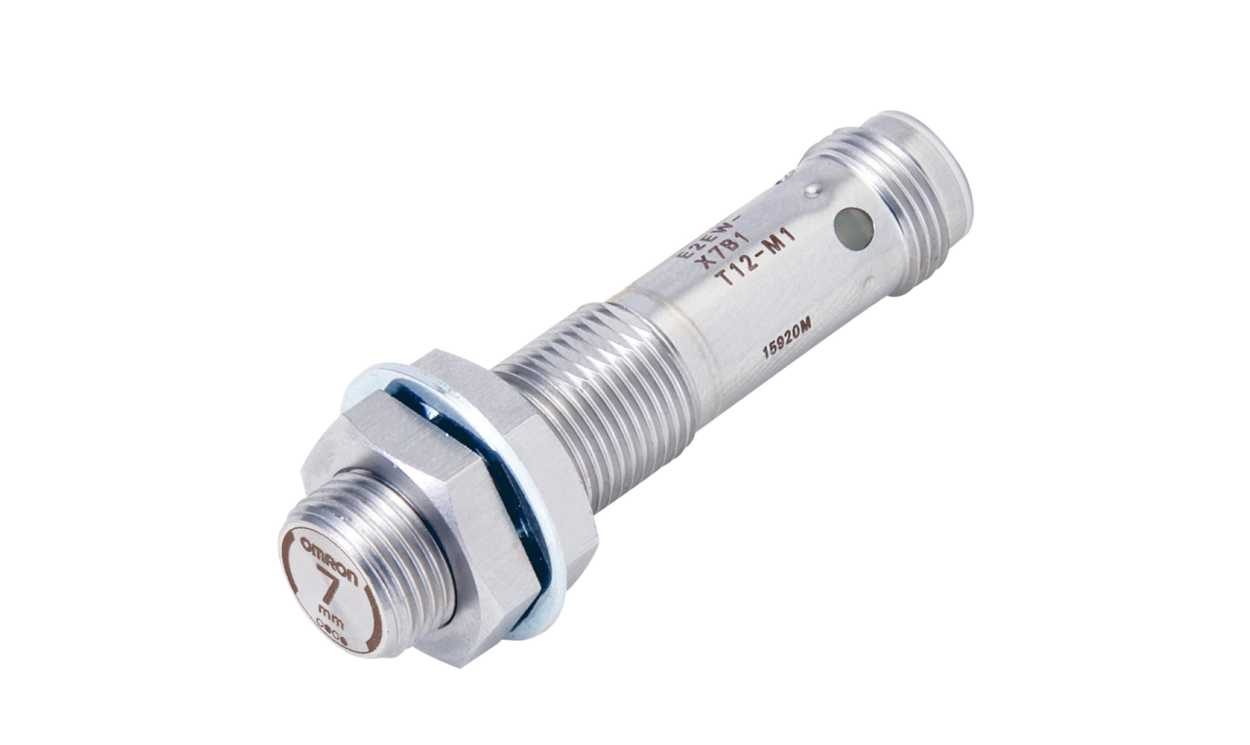

OMRON E2EW-X7B212-M1 | Threaded Inductive Proximity Sensor | M12, 7 mm Sensing, PNP NC

Name: OMRON E2EW-X7B212-M1 | Threaded Inductive Proximity Sensor | M12, 7 mm Sensing, PNP NC
Brand: OMRON
SKU: E2EW-X7B212-M1
Availability: OutOfStock

Part Number : E2EW-X7B212-M1

The OMRON E2EW-X7B212-M1 is an M12 threaded inductive proximity sensor with a 7 mm sensing distance and a PNP normally closed output, connected by an M12 connector. Listed data for E2EW-X7B212-M1 include IP67 protection, a 10 to 30 V DC supply and an operating range of 0 to +85 °C.

7 mm sensing distance, M12 thread
Output: PNP NC, switching current 200 mA
Supply voltage 10 to 30 V DC; connection by an M12 connector
IP67 rated, operating temperature 0 to +85 °C
Flush mounting (shielded), E2EW series
Length 54.4 mm

Availability: in stock

Detailed Description
Specifications

The Omron E2EW series shielded proximity sensor offer equivalent sensing distances for both iron and aluminium. Laser printing sensing distance on its active face to prevent replacement errors. It has 7 mm sensing distance and robust full stainless steel housing with metal sensing face.

Quasi-flush mounted
NC operation mode
UL and CSA certification
IP67 degree of protection (IP)

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	7 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	54.4mm
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	0°C
Switching Current	200 mA
Maximum Operating Temperature	+85°C
Shielding	Shielded
Series	E2EW
Switching Frequency	2 Hz
Maximum Switching Frequency	2Hz
