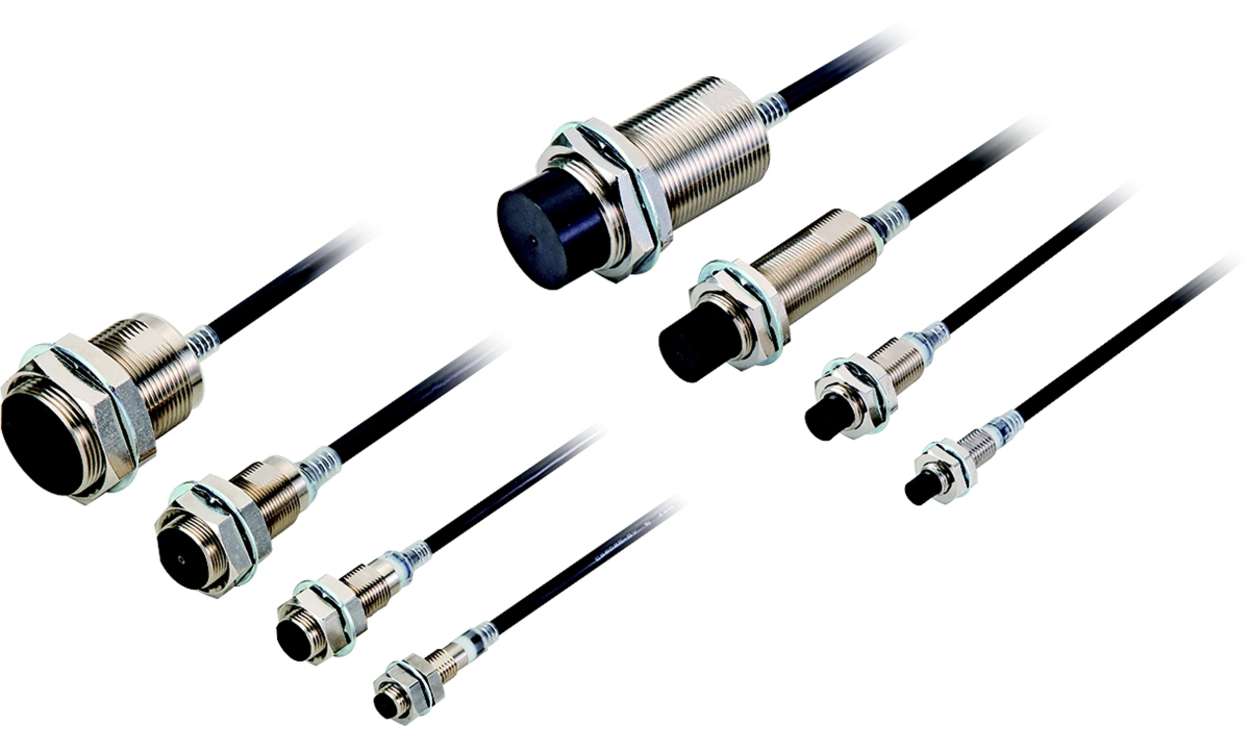

OMRON E2EQ-X7D112-T 2M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, 2 m Cable

Name: OMRON E2EQ-X7D112-T 2M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, 2 m Cable
Brand: OMRON
SKU: E2EQ-X7D112-T 2M
Availability: OutOfStock

Part Number : E2EQ-X7D112-T 2M

Offering 7 mm detection from an M12 threaded barrel, the OMRON E2EQ-X7D112-T 2M switches a 2-wire normally open (NO) output and connects via a 2 m pre-wired cable. The E2EQ-X7D112-T 2M operates from 10 to 30 V DC and measures 47.1 mm in length, with IP67 protection.

Mounting type: flush
Works from -25 to +70 °C
Brass housing
Approvals: CE Certificate, CSA C22.2 No.14-13, UL 508, UL Certified
Series: E2E-NEXT

Availability: in stock

Detailed Description
Specifications
Downloads

Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance. E2E NEXT Proximity Sensors use "Thermal Distance Control": long-distance and stable detection technology, newly developed by OMRON."Thermal Distance Control" with "PROX2" write temperature correction values externally when shipped and minimize the sensing distance changes due to temperature changes, which could not be done by the conventional analog IC.

With high-brightness LED the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	7 mm
Output Function	NO
Digital Switching Output Type	2-Wire
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
Length	47.1mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Brass
Width	21mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Series	E2E-NEXT
Standards Met	CE Certificate, CSA C22.2 No.14-13, UL 508, UL Certified

OMRON E2EQ-X7D112-T 2M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NO, 2 m Cable

DOWNLOAD CATALOG

E2EQ-X7D112-T 2M E2E-Datasheet A700000009830224
