OMRON E2EQ-X22B1T30-M1 | M30 Inductive Proximity Sensor | 22 mm Range, PNP NO, M12 Connector

Name: OMRON E2EQ-X22B1T30-M1 | M30 Inductive Proximity Sensor | 22 mm Range, PNP NO, M12 Connector
Brand: OMRON
SKU: E2EQ-X22B1T30-M1
Availability: OutOfStock

Part Number : E2EQ-X22B1T30-M1

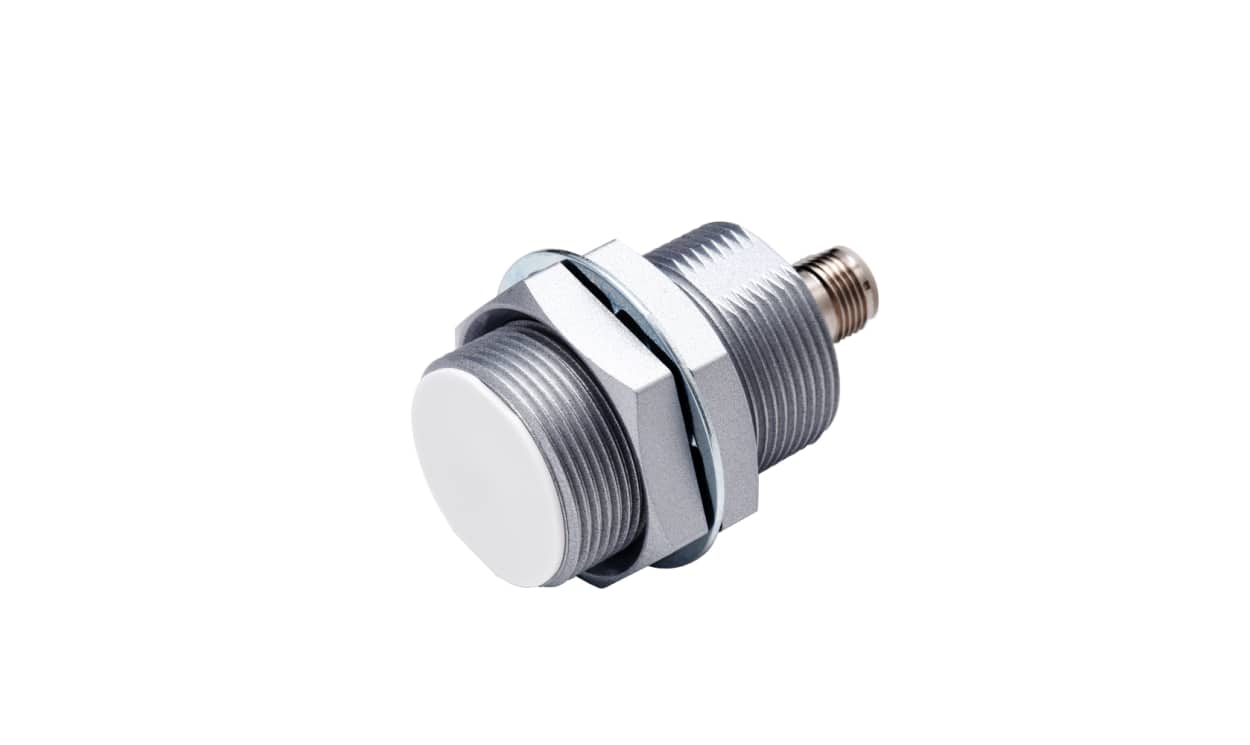

The OMRON E2EQ-X22B1T30-M1 is an M30 inductive proximity sensor with a 22 mm sensing distance, a PNP normally open (NO) output and an M12 connector. Rated IP67, the E2EQ-X22B1T30-M1 runs on 10 to 30 V DC and measures 58 mm in length.

Quasi-flush mounting
Switching frequency up to 200 Hz
Switching current: 100 mA
Operating temperature -25 to +70 °C
OMRON E2EQ series

Availability: in stock

Detailed Description
Specifications

The Omron E2EQ series sensor has coating and the base material is brass. This proximity sensor is shielded with NO operation mode having DC 3 wire PNP output. This proximity sensor have 22 mm sensing distance.

IP degree of protection is IP67
Operating temperature is -25°C to 70°C

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	22 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	58mm
IP Rating	IP67
Mounting Type	Quasi-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	200Hz
Shielding	Shielded
Switching Current	100 mA
Series	E2EQ
Maximum Operating Temperature	+70°C
Switching Frequency	200 Hz
