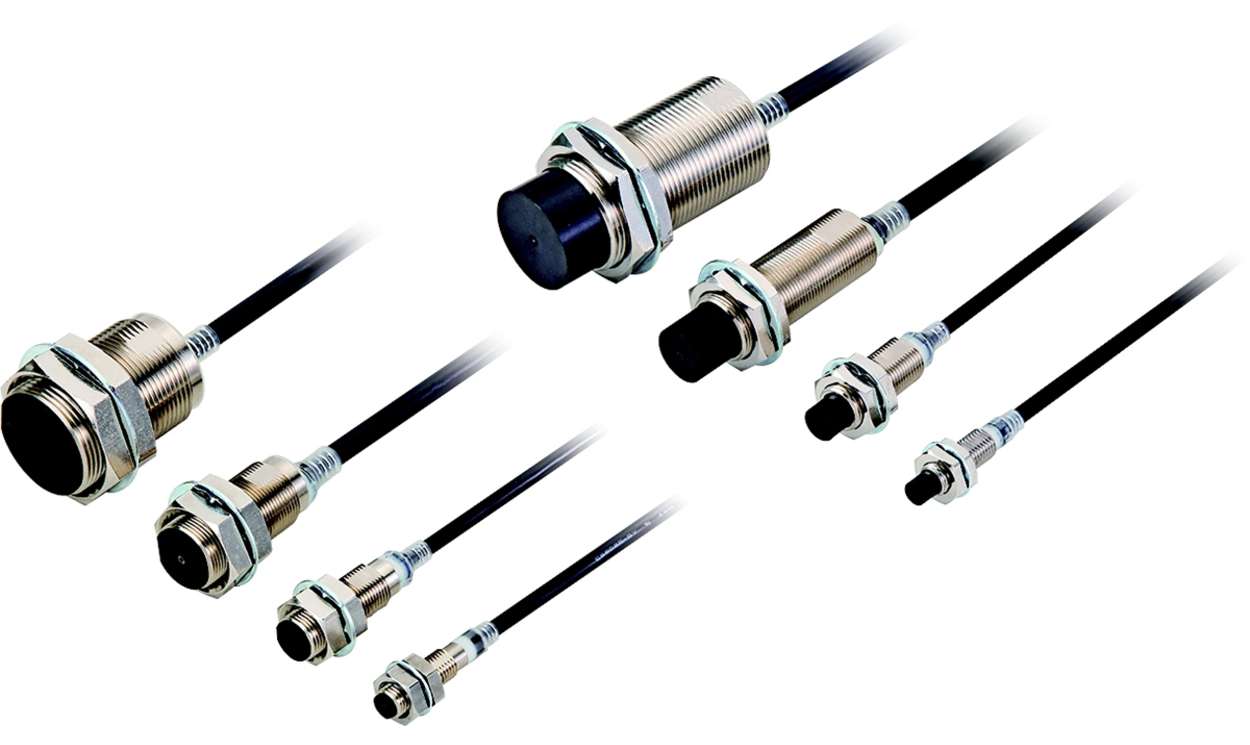

Omron E2EQ-X20D130-T 2M, Inductive Threaded Barrel Proximity Sensor, M30, 20 mm Detection, 2-Wire NO, 10 → 30 V dc

Name: Omron E2EQ-X20D130-T 2M, Inductive Threaded Barrel Proximity Sensor, M30, 20 mm Detection, 2-Wire NO, 10 → 30 V dc
Brand: OMRON
SKU: E2EQ-X20D130-T 2M
Availability: OutOfStock

Part Number : E2EQ-X20D130-T 2M

Availability: Sold out

Detailed Description
Specifications
Downloads

Proximity sensors with longer sensing distance require increased sensitivity. However, with the increased sensitivity, temperature changes will have bigger influence in sensing distance. E2E NEXT Proximity Sensors use "Thermal Distance Control": long-distance and stable detection technology, newly developed by OMRON."Thermal Distance Control" with "PROX2" write temperature correction values externally when shipped and minimize the sensing distance changes due to temperature changes, which could not be done by the conventional analog IC.

With high-brightness LED the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the ″e-jig″ (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	20 mm
Output Function	NO
Digital Switching Output Type	2-Wire
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	10 → 30 V dc
IP Rating	IP67
Length	60.3mm
Mounting Type	Flush
Width	42mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Standards Met	CE Certificate, CSA C22.2 No.14-13, UL 508, UL Certified
Series	E2E-NEXT
Short Circuit Overload Protection	Yes

Omron E2EQ-X20D130-T 2M, Inductive Threaded Barrel Proximity Sensor, M30, 20 mm Detection, 2-Wire NO, 10 → 30 V dc

DOWNLOAD CATALOG

E2EQ-X20D130-T 2M E2E-Datasheet A700000009830224
