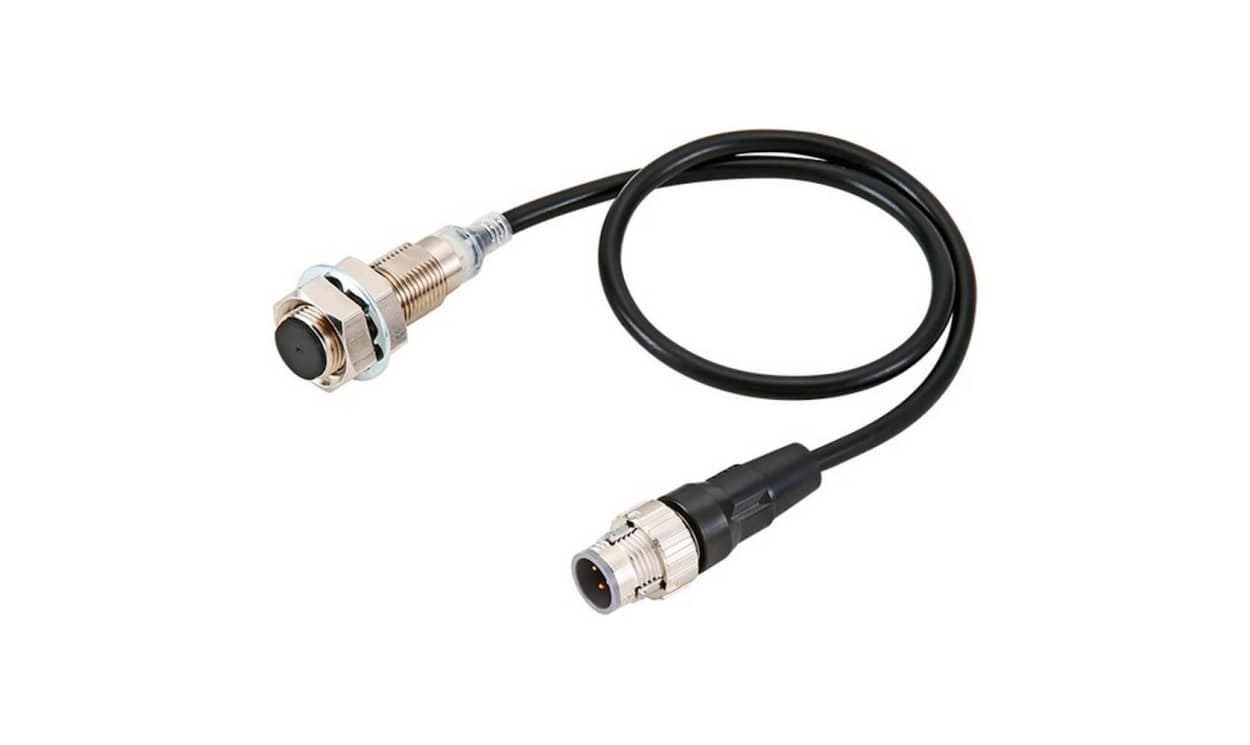

OMRON E2E-X7D212-M1TGJ 0.3M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NC, M12 Connector

Name: OMRON E2E-X7D212-M1TGJ 0.3M | M12 Inductive Proximity Sensor | 7 mm Range, 2-Wire NC, M12 Connector
Brand: OMRON
SKU: E2E-X7D212-M1TGJ 0.3M
Availability: OutOfStock

Part Number : E2E-X7D212-M1TGJ 0.3M

Offering 7 mm detection from an M12 threaded barrel, the OMRON E2E-X7D212-M1TGJ 0.3M switches a 2-wire normally closed (NC) output and connects via an M12 connector. The E2E-X7D212-M1TGJ 0.3M operates from 10 to 30 V DC and measures 47.1 mm in length, with IP67, IP67G, IP69K protection.

Mounting: quasi-flush (quasi-shielded)
Maximum switching frequency: 350 Hz
Load (switching) current 3 to 100 mA
Works from -25 to +70 °C

Availability: in stock

Detailed Description
Specifications

The Omron proximity sensor has an exceptional sensing range which reduces malfunctions and collisions. With high-brightness LED, the indicator is visible anywhere from 360°. Cables with enhanced oil resistance enabled have 2-year oil resistance.

UL certification (UL60947-5-2)
Protection Rating IP67G

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	7 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NC
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	47.1mm
Mounting Type	Quasi-Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	350Hz
Shielding	Quasi-Shielded
Switching Current	3 → 100 mA
Switching Frequency	350 Hz
Maximum Operating Temperature	+70°C
