OMRON E2E-X5D1-M1TGJ-T 0.3M | Inductive Proximity Sensor | M18, 5 mm Range, 2-Wire NO

Name: OMRON E2E-X5D1-M1TGJ-T 0.3M | Inductive Proximity Sensor | M18, 5 mm Range, 2-Wire NO
Brand: OMRON
SKU: E2E-X5D1-M1TGJ-T 0.3M
Availability: OutOfStock

Part Number : E2E-X5D1-M1TGJ-T 0.3M

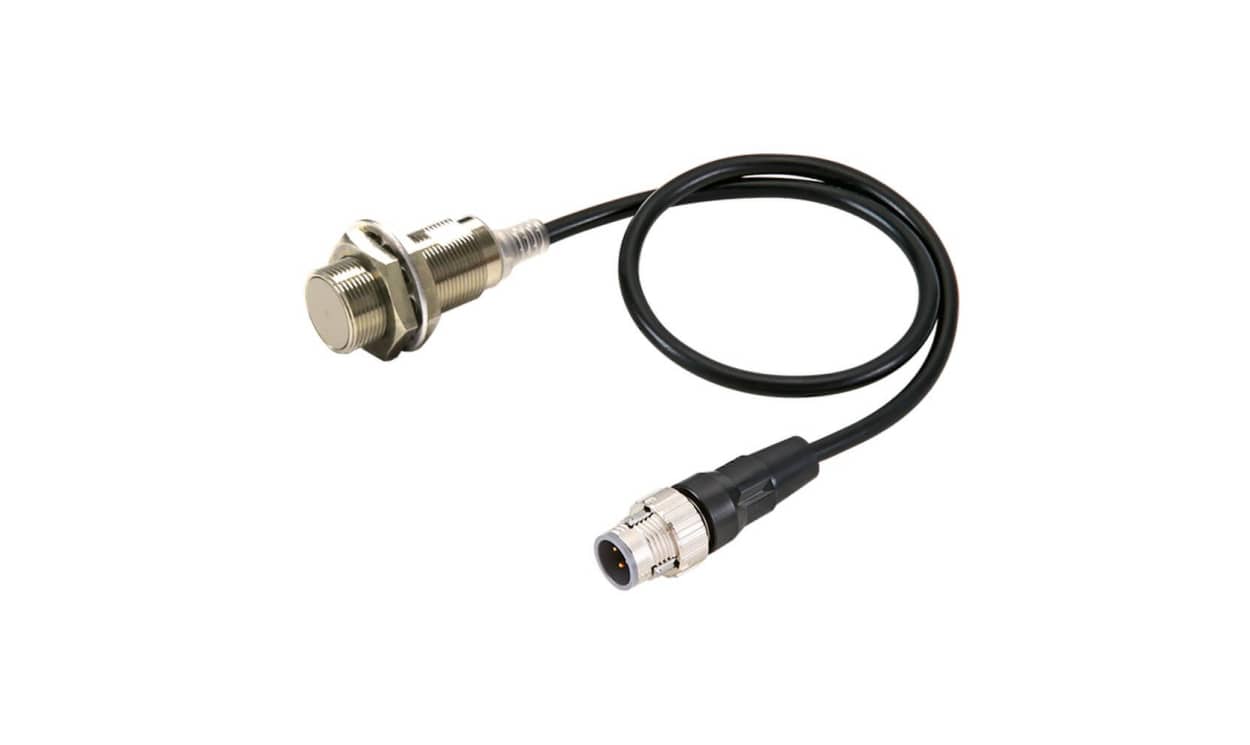

The M18 OMRON E2E-X5D1-M1TGJ-T 0.3M inductive proximity sensor comes with an M12 connector, a 2-wire normally open (NO) output, 10 to 30 V DC operation and a 5 mm detection range.

Sensing distance 5 mm; flush mounting (shielded)
Connection: M12 connector
Switching frequency 250 Hz, switching current 3 to 100 mA
Ingress protection: IP67, IP67G, IP69K
Output: 2-wire NO
Operating voltage 10 to 30 V DC

Availability: in stock

Detailed Description
Specifications
Downloads

The Omron proximity sensor has an exceptional sensing range which reduces malfunctions and collisions. With high-brightness LED, the indicator is visible anywhere from 360°. Cables with enhanced oil resistance enabled have 2-year oil resistance.

UL certification (UL60947-5-2)
Protection Rating IP67G

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Detection Range	5 mm
Body Style	Threaded Barrel
Digital Switching Output Type	2-Wire
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	54.3mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Flush
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+70°C
Switching Current	3 → 100 mA
Shielding	Shielded
Maximum Switching Frequency	250Hz
Switching Frequency	250 Hz
