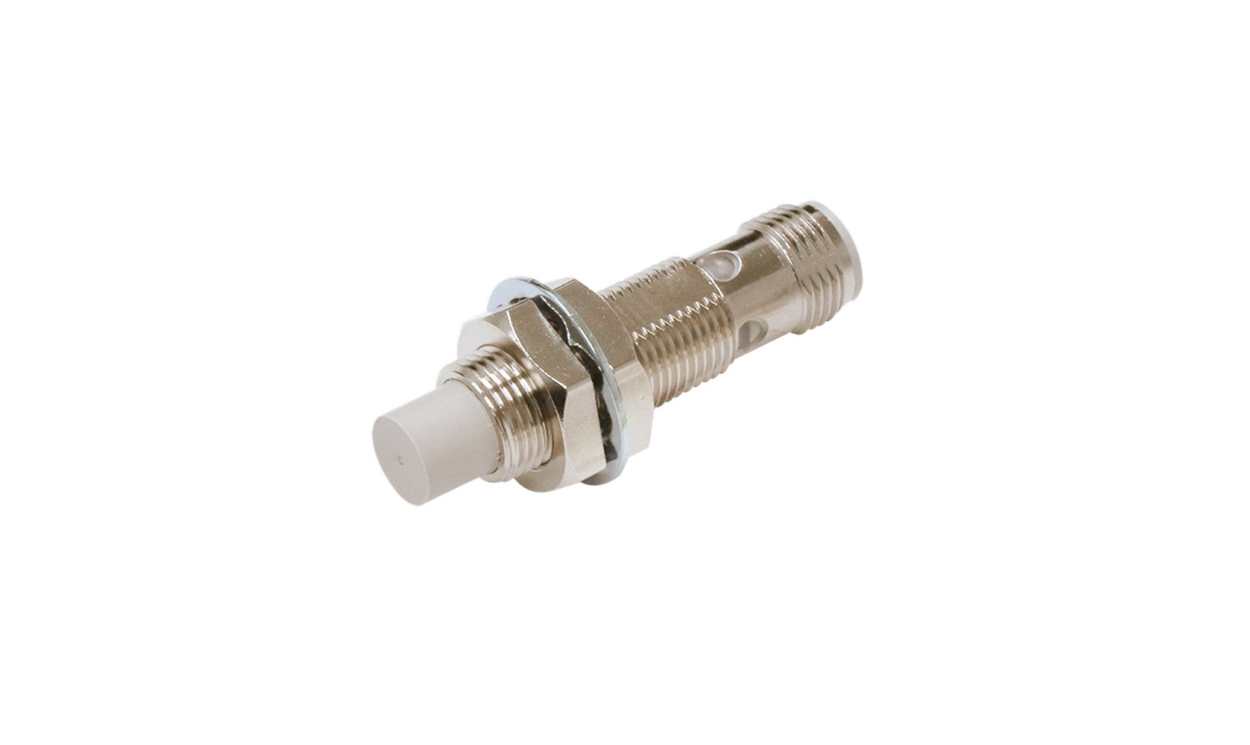

OMRON E2E-X16MB1T12-M1 | Threaded Inductive Proximity Sensor | M12, 16 mm Sensing, PNP NO

Name: OMRON E2E-X16MB1T12-M1 | Threaded Inductive Proximity Sensor | M12, 16 mm Sensing, PNP NO
Brand: OMRON
SKU: E2E-X16MB1T12-M1
Availability: OutOfStock

Part Number : E2E-X16MB1T12-M1

The OMRON E2E-X16MB1T12-M1 is an M12 threaded inductive proximity sensor with a 16 mm sensing distance and a PNP normally open output, supplied with an M12 connector. Listed data for E2E-X16MB1T12-M1 include IP67, IP67G, IP69K protection, a 10 to 30 V DC supply and an operating range of -25 to +70 °C.

16 mm sensing distance, M12 thread
Output: PNP NO, switching current 16 mA
10 to 30 V DC supply; connection: M12 connector
IP67, IP67G, IP69K rated, operating temperature -25 to +70 °C
Non-flush mounting (unshielded)
Brass housing, length 47.1 mm, reverse polarity protection

Availability: in stock

Detailed Description
Specifications
Downloads

Long-distance Detection Prevents Unexpected Facility Stoppages
The world's longest sensing distance
With high-brightness LED, the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the "e-jig" (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
Comes in a wide variation to make sensor selection easy

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	16 mm
Body Style	Threaded Barrel
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	47.1mm
Mounting Type	Non-Flush
Width	12mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Switching Current	16 mA
Shielding	Unshielded
Maximum Operating Temperature	+70°C
Reverse Polarity Protection	Yes
