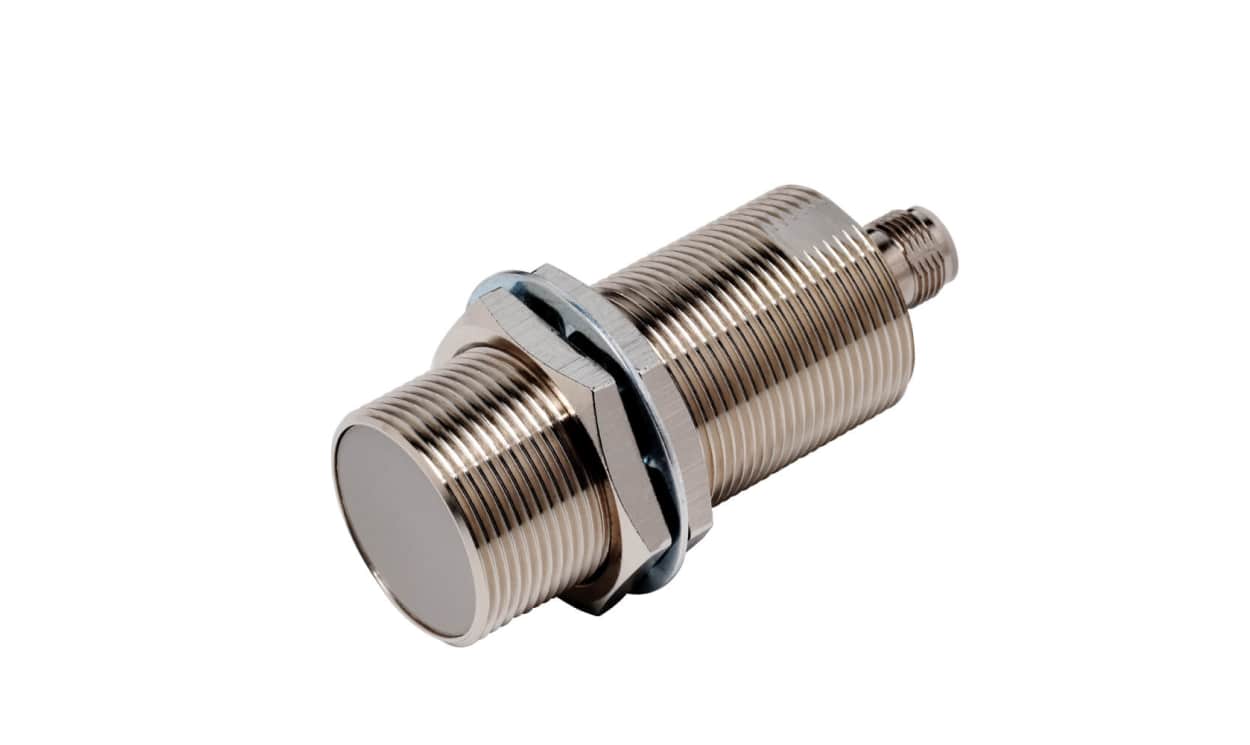

Omron E2E-X15B1TL30-M1, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc

Name: Omron E2E-X15B1TL30-M1, Inductive Threaded Barrel Proximity Sensor, M30, 15 mm Detection, PNP NO, 10 → 30 V dc
Brand: OMRON
SKU: E2E-X15B1TL30-M1
Availability: OutOfStock

Part Number : E2E-X15B1TL30-M1

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2E-NEXT Series Proximity Sensor, PNP Output, 15mm Detection Range - E2E-X15B1TL30-M1

This proximity sensor is tailored for precision automation applications requiring effective detection of metal objects. Utilising inductive technology, it detects targets at distances up to 15mm, making it suitable for various industrial environments. Its durable construction enhances longevity, particularly in demanding conditions, thereby contributing to operational efficiency.

Features & Benefits

• Sensing range is significantly extended compared to standard models
• Functions effectively in temperatures ranging from -25 to +70°C
• PNP output configuration simplifies integration processes
• Shielded design reduces interference and enhances reliability
• Rated IP67, IP67G, and IP69K for robust protection in harsh settings
• Compact sizes are available, allowing for flush mounting

Applications

• Utilised primarily in automated machinery for part detection
• Ideal for robotics applications to ensure precise position sensing
• Employed in conveyor systems for monitoring product flow
• Applicable in quality control processes for verifying object presence
• Frequently integrated into assembly lines for automated counting and tracking

What real-time information can be obtained from the sensor during operation?

It can monitor conditions and signal any sensor failures, aiding in timely maintenance.

How should it be connected for optimal performance?

Use the appropriate M12 connector for a secure and stable connection to the control system.

Is this suitable for environments with high vibration?

Yes, its design accommodates vibrations while maintaining accurate detection.

How to verify installation correctness?

Employ the integrated 360° visible output indicator to confirm proper alignment and operation during installation.

What preventative measures should I take to maintain it?

Avoid exposure to cutting oils and keep the sensor clean to extend its lifespan and effectiveness.

Brand	Omron
Thread Size	M30
Sensor Technology	Inductive
Detection Range	15 mm
Body Style	Threaded Barrel
Output Function	NO
Digital Switching Output Type	PNP
Connection Type	M12
Supply Voltage	10 → 30 V dc
Length	82.3mm
IP Rating	IP67, IP67G, IP69K
Mounting Type	Quasi-Flush
Housing Material	Brass
Width	30mm
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Depth	30mm
Shielding	Shielded
Maximum Switching Frequency	250Hz
