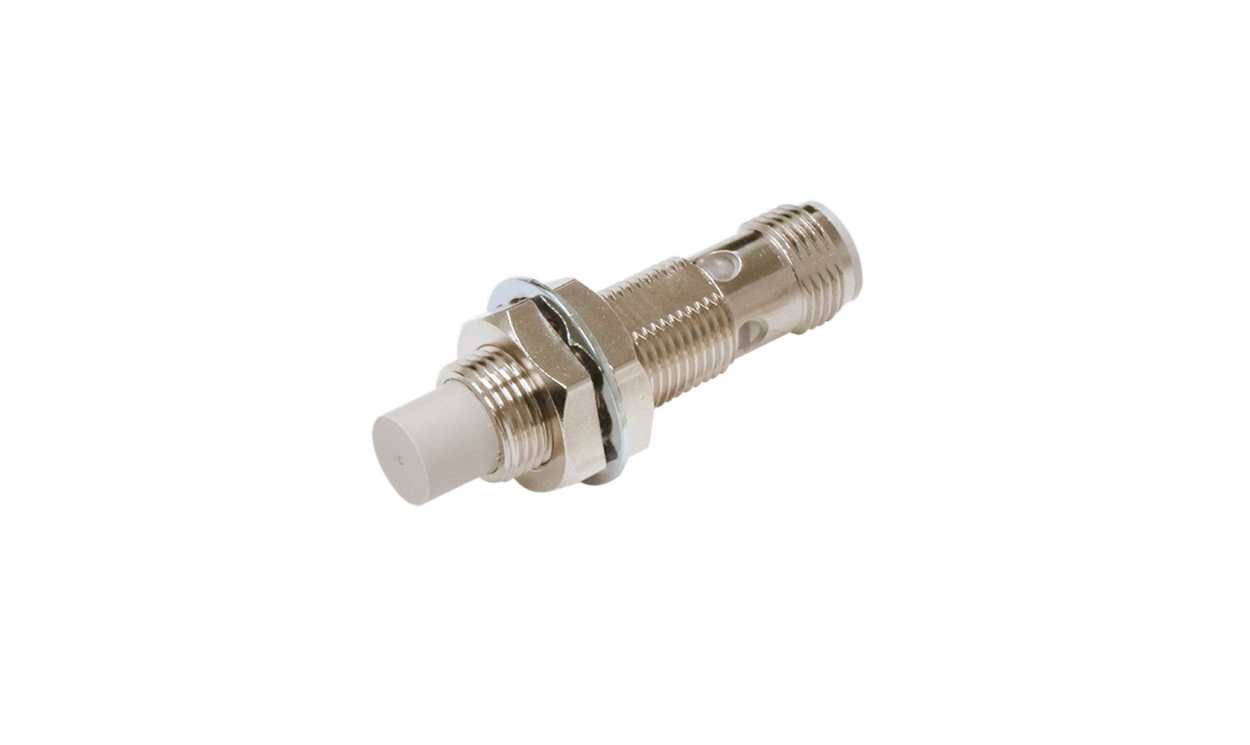

OMRON E2E-X10MC112-M1 | Threaded Inductive Proximity Sensor | M12, 10 mm Sensing, NPN NO

Name: OMRON E2E-X10MC112-M1 | Threaded Inductive Proximity Sensor | M12, 10 mm Sensing, NPN NO
Brand: OMRON
SKU: E2E-X10MC112-M1
Availability: OutOfStock

Part Number : E2E-X10MC112-M1

OMRON E2E-X10MC112-M1: 10 mm sensing distance, an NPN normally open output and an M12 connector, built as an M12 threaded inductive proximity sensor. This E2E-X10MC112-M1 unit is powered from 10 to 30 V DC and rated IP67, IP67G, IP69K.

10 mm sensing distance, M12 thread
Output: NPN NO
10 to 30 V DC supply; connection: M12 connector
IP67, IP67G, IP69K rated, minimum operating temperature -25 °C
Non-flush mounting (unshielded), switching frequency 400 Hz
Brass housing, length 47.1 mm, short-circuit/overload protection

Availability: in stock

Detailed Description
Specifications

Long-distance Detection Prevents Unexpected Facility Stoppages
The world's longest sensing distance
With high-brightness LED, the indicator is visible anywhere from 360°.
Only 10 Seconds to Replace a Proximity Sensor with the "e-jig" (Mounting Sleeve).
Cables with enhanced oil resistance enabled 2-year oil resistance
Comes in a wide variation to make sensor selection easy

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	10 mm
Digital Switching Output Type	NPN
Output Function	NO
Connection Type	M12
Supply Voltage	10 → 30 V dc
IP Rating	IP67, IP67G, IP69K
Length	47.1mm
Mounting Type	Non-Flush
Width	12mm
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	400Hz
Short Circuit Overload Protection	Yes
Shielding	Unshielded
Switching Frequency	400 Hz
