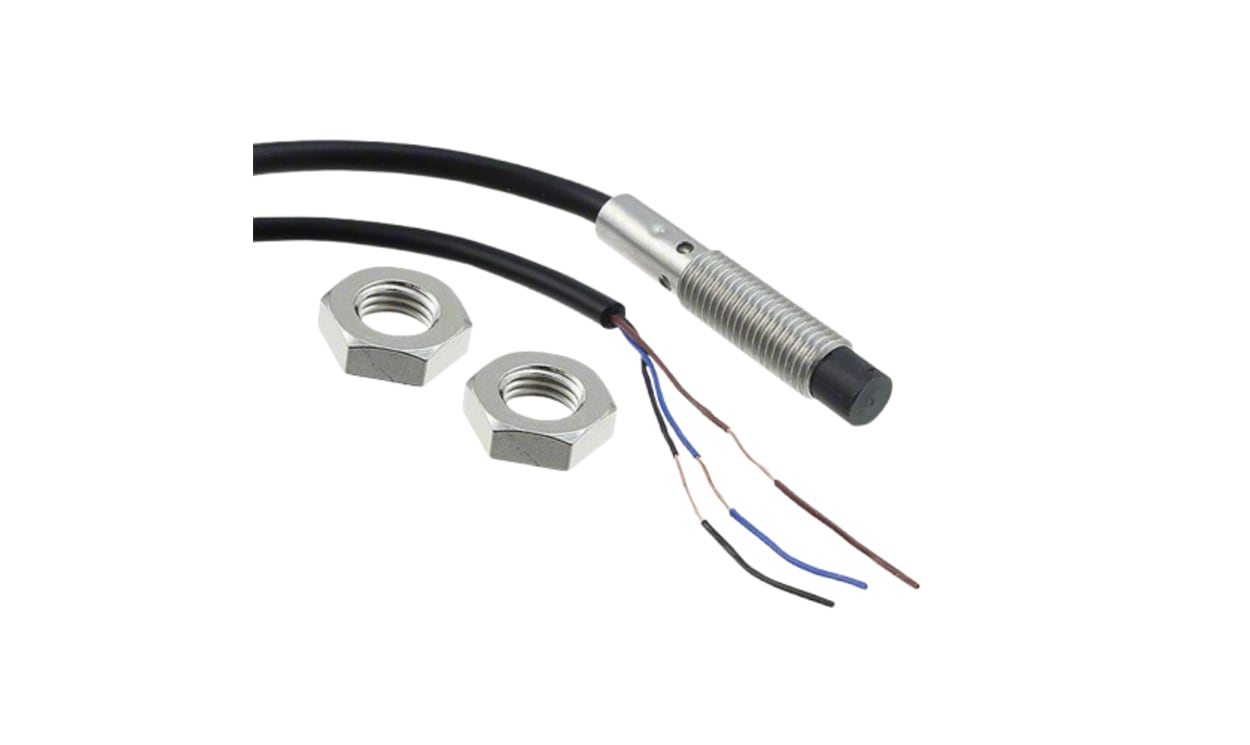

Omron E2B-S08KN04-WP-B2 5M, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NC, 12 → 24 V dc

Name: Omron E2B-S08KN04-WP-B2 5M, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NC, 12 → 24 V dc
Brand: OMRON
SKU: E2B-S08KN04-WP-B2 5M
Availability: OutOfStock

Part Number : E2B-S08KN04-WP-B2 5M

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron E2B Series Proximity Sensor, 4mm Detection Range, M8 Thread size - E2B-S08KN04-WP-B2 5M

This inductive proximity sensor is designed for integration in diverse automation applications. Featuring an M8 threaded barrel with robust stainless steel housing, the sensor measures 42mm in length and offers a 4mm detection range. With an IP67 rating, it is well-equipped for wet environments, ensuring consistent performance and reliability in tough conditions.

Features & Benefits

• Designed for non-flush mounting to improve sensing accuracy
• Operates within a supply voltage range of 10 to 30 V DC
• Equipped with PNP switching output for streamlined connectivity
• Unshielded construction minimises interference in typical setups
• 360° visible LED indicator for clear operational status

Applications

• Utilised in assembly lines for object detection
• Implemented in conveyor systems to monitor products
• Essential for position sensing in robotic arms
• Used in packaging machinery for material handling
• Integrated into safety systems for proximity monitoring

What is the advantage of the 4mm detection range for this sensor?

The 4mm detection range allows precise proximity sensing for small to medium-sized objects, making it suitable for high-density applications like assembly lines.

How does the IP67 rating enhance the sensor's usability?

The IP67 rating ensures complete protection against dust ingress and temporary water immersion, enabling reliable operation in challenging industrial environments.

Can this sensor be used in low-temperature applications?

Yes, it can operate effectively in temperatures as low as -25°C, making it ideal for cold storage facilities or outdoor applications in winter conditions.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Output Function	NC
Digital Switching Output Type	PNP
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	42mm
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	30V
Diameter	M8
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	1kHz
Depth	6.6mm
Reverse Polarity Protection	Yes

Omron E2B-S08KN04-WP-B2 5M, Inductive Threaded Barrel Proximity Sensor, M8, 4 mm Detection, PNP NC, 12 → 24 V dc

DOWNLOAD CATALOG

E2B-S08KN04-WP-B2 5M Brochure - Inductive Proximity Sensors A700000014065511

E2B-S08KN04-WP-B2 5M Instruction Sheet - E2B Series A700000014066141
