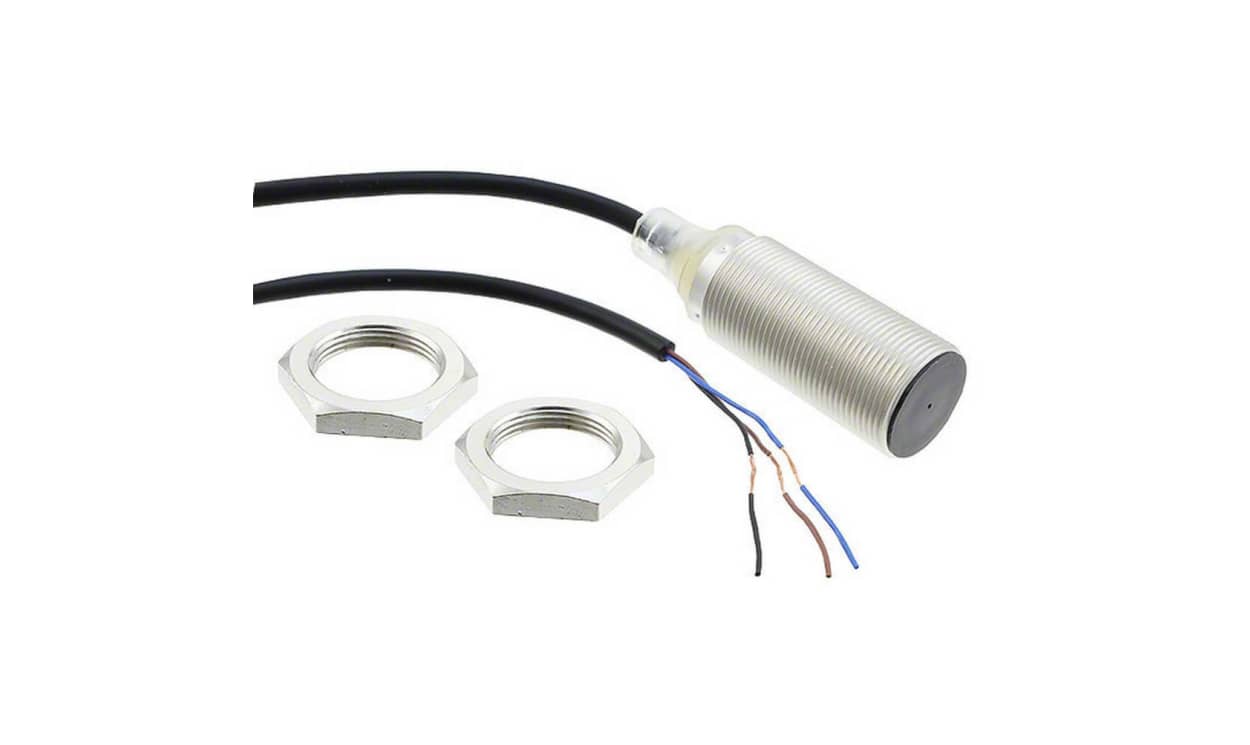

Omron E2B-M18KS08-WP-B1 2M, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 12 → 24 V dc

Name: Omron E2B-M18KS08-WP-B1 2M, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 12 → 24 V dc
Brand: OMRON
SKU: E2B-M18KS08-WP-B1 2M
Availability: OutOfStock

Part Number : E2B-M18KS08-WP-B1 2M

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP-NO, 2 m cable

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

Omron E2B Series Proximity Sensor, NO Output Function, IP67 - E2B-M18KS08-WP-B1 2M

This proximity sensor detects the presence of objects without physical contact, employing inductive technology. Its IP67 rating ensures reliable performance across various environmental conditions, making it suitable for industrial applications.

Features & Benefits

• 8mm detection range for accurate sensing
• Inductive operation reduces wear on components
• PNP output type compatible with diverse control systems
• Shielded design minimises interference from external sources
• Durable brass housing suited for challenging conditions

Applications

• Object detection in automated assembly lines
• Product positioning in packaging machines
• Tool presence monitoring in CNC machines
• Robotics for automated material handling
• Conveyor systems to prevent jams

What voltage range is compatible with this sensor?

It operates within a voltage range of 12 to 24V DC.

How does the sensor handle reverse polarity?

It includes built-in reverse polarity protection for safety.

What is the significance of the IP67 rating?

The IP67 rating signifies strong resistance to dust and immersion in water.

Can it be used in high-temperature environments?

Yes, it can withstand temperatures up to +70°C.

What mounting options are available with this sensor?

It supports quasi-flush mounting for flexible and straightforward installation.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	8 mm
Output Function	NO
Digital Switching Output Type	PNP
Cable Length	2m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	36mm
IP Rating	IP67
Mounting Type	Quasi-Flush
Housing Material	Brass
Maximum DC Voltage	30V
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Switching Current	200 mA
Standards Met	CE
Series	E2B

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, shielded, 8 mm, DC, 3-wire, PNP-NO, 2 m cable

Omron E2B-M18KS08-WP-B1 2M, Inductive Threaded Barrel Proximity Sensor, M18, 8 mm Detection, PNP NO, 12 → 24 V dc

DOWNLOAD CATALOG

E2B-M18KS08-WP-B1 2M Brochure A700000009885692

E2B-M18KS08-WP-B1 2M Model E2B Instruction Sheet A700000009885720
