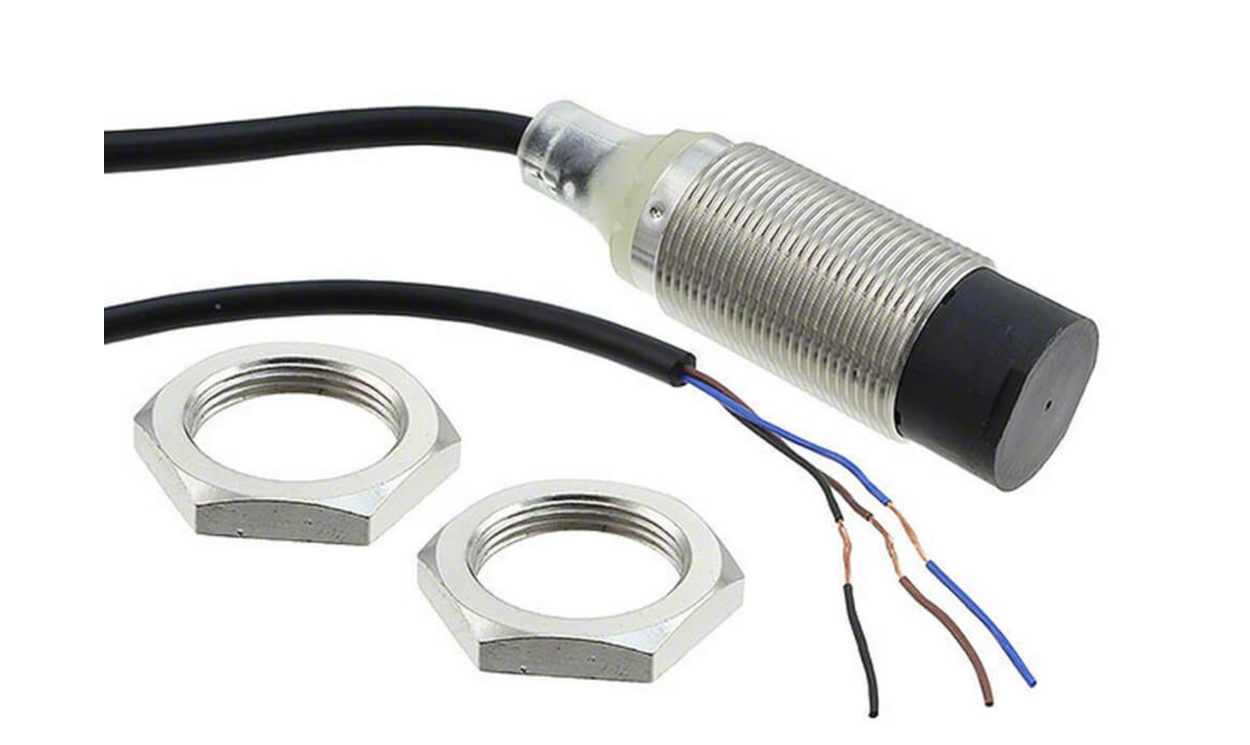

OMRON E2B-M18KN16-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NO, 2 m Cable

Name: OMRON E2B-M18KN16-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NO, 2 m Cable
Brand: OMRON
SKU: E2B-M18KN16-WP-C1 2M
Availability: OutOfStock

Part Number : E2B-M18KN16-WP-C1 2M

The OMRON E2B-M18KN16-WP-C1 2M is an inductive threaded-barrel proximity sensor with an M18 thread and a 16 mm sensing distance. It has an NPN normally open (NO) output and connects via a pre-wired 2 m cable. It is listed as part of the E2B LITE range.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: non-flush, unshielded
Switching frequency: 400 Hz
Housing length: 56 mm (short body)
Housing material: nickel-plated brass

Availability: in stock

Detailed Description
Specifications
Features
Downloads

E2B Brass Standard Length

The E2B range of brass standard length cylindrical inductive proximity sensors from Omron are designed to offer reliable performance for use with in standard industrial environments. This range of inductive sensors have an easy-to-read code. They also have a bright circular LED indicator to allow for quick visual recognition of their operating status. These two features reduce the cost and time need to for maintenance.

Features and benefits

IP67 rated for protection in wet environments

360 ° visible LED for operation control

Pre-wired and connector variations available

Vibration shock resistance: IEC 60947-5-2 (10 - 55 Hz)

Standard temperature range –25°C to 70°C

Omron E2B Series Proximity Sensor, 16mm Detection Range, 2m Cable Length - E2B-M18KN16-WP-C1 2M

This inductive proximity sensor is designed for efficient detection in various industrial applications. Featuring a threaded barrel with a standard M18 thread size, this sensor operates within a detection range of 16mm. The device is built with robust brass housing, nickel plated for added durability, and comes with a 2m pre-cabled connection for ease of installation.

Features & Benefits

• Features NPN output for efficient switching capabilities
• IP67 rating ensures protection against dust and water
• Capable of operating within a DC voltage range of 12 to 24V
• Non-flush design enables versatile mounting options
• Reverse polarity protection prevents damage due to incorrect connections
• Short circuit overload protection enhances operational safety

Applications

• Used for automation in conveyor systems and assembly lines
• Ideal for detecting the presence of metallic objects in manufacturing
• Utilised in packaging machines for precise positioning
• Suitable for attendance sensors in safety
• Employed in robotics for proximity sensing

What voltage range is compatible with this device?

It operates efficiently within a DC voltage range of 12 to 24V, making it suitable for various industrial applications.

How does the IP67 rating benefit this sensor?

The IP67 rating provides robust protection against dust infiltration and submersion in water, ensuring reliable performance in harsh environments.

What is the significance of the NPN output configuration?

The NPN output allows for easier integration with many control systems, providing a low-current signal that operates within standard industrial frameworks.

Brand	Omron
Thread Size	M18
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	16 mm
Output Function	NO
Digital Switching Output Type	NPN
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
Length	56mm
IP Rating	IP67
Mounting Type	Non-Flush
Housing Material	Brass, Nickel Plated
Maximum DC Voltage	30V
Diameter	0.9 mm
Minimum Operating Temperature	-25°C
Reverse Polarity Protection	Yes
Switching Frequency	400 Hz
Series	E2B

Proximity sensor, LITE, inductive, nickel-brass, short body, M18, unshielded, 16 mm, DC, 3-wire, NPN-NO, 2 m cable

OMRON E2B-M18KN16-WP-C1 2M | Inductive Threaded Barrel Proximity Sensor | M18, 16 mm, NPN NO, 2 m Cable

DOWNLOAD CATALOG

E2B-M18KN16-WP-C1 2M Brochure - Inductive Proximity Sensors A700000013143142

E2B-M18KN16-WP-C1 2M Instruction Sheet - E2B Series A700000013143228
