OMRON E2B-M12KS04-WP-C2 5M | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, NPN NC, 5 m Cable

Name: OMRON E2B-M12KS04-WP-C2 5M | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, NPN NC, 5 m Cable
Brand: OMRON
SKU: E2B-M12KS04-WP-C2 5M
Availability: OutOfStock

Part Number : E2B-M12KS04-WP-C2 5M

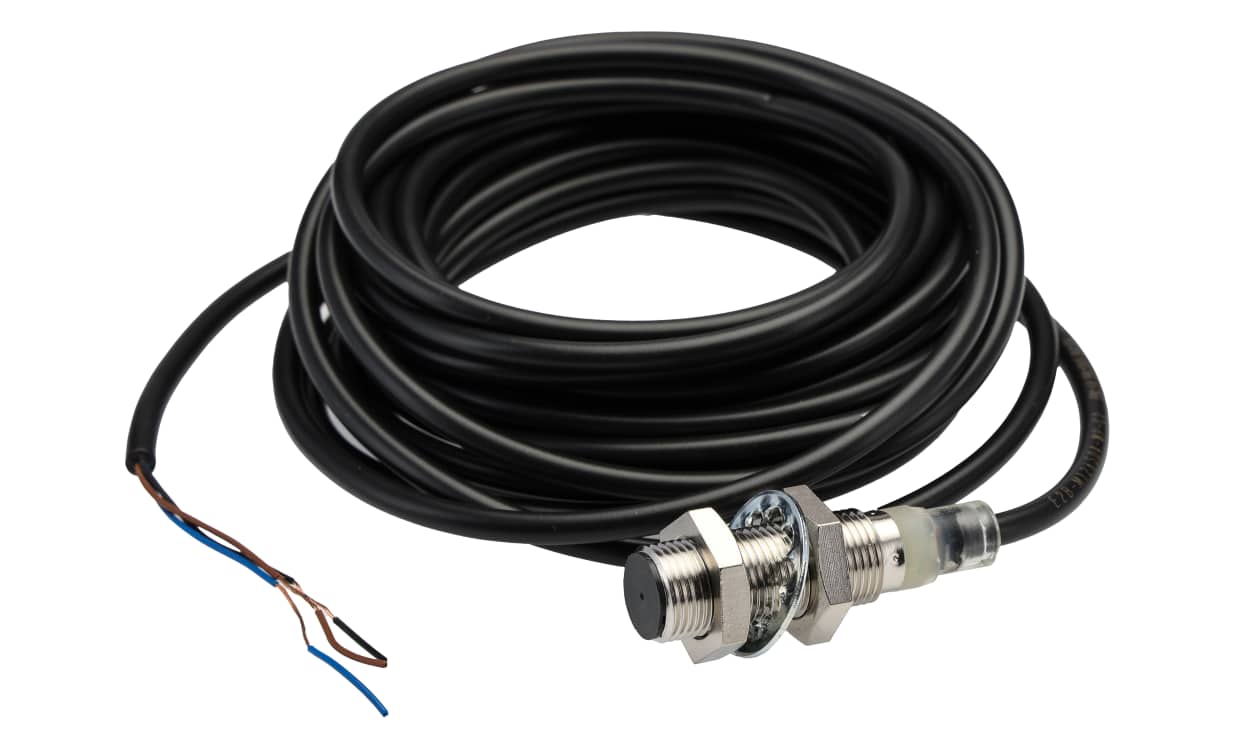

The OMRON E2B-M12KS04-WP-C2 5M is an inductive threaded-barrel proximity sensor with an M12 thread and a 4 mm sensing distance. It has an NPN normally closed (NC) output and connects via a pre-wired 5 m cable.

Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: flush
Switching frequency: 1 kHz
Housing length: 30 mm
Housing material: brass
Protection rating: IP67

Availability: in stock

Detailed Description
Specifications

Omron Series E2B Proximity Sensor, 4mm Detection Range, 5m Cable Length - E2B-M12KS04-WP-C2 5M

This proximity sensor is an inductive solution designed for reliable detection in various industrial applications. Featuring a threaded barrel design, this sensor operates efficiently with a detection range of 4mm. With a compact size of 30mm in length and 17mm in width, it is engineered to fit in confined spaces while maintaining robust performance levels. Built to withstand harsh environments, it has an IP67 rating and operates within a temperature range of -25°C to +70°C.

Features & Benefits

• Inductive technology provides precise object detection without contact
• NPN output type ensures compatibility with digital control systems
• Brass housing enhances durability and corrosion resistance
• Flush mount design allows for discreet integration into machinery

Applications

• Used in automation systems for material handling
• Used for detecting parts on conveyor belts
• Utilised in packaging machinery to ensure accurate positioning
• Suitable for automotive assembly line
• Ideal for robotics requiring precise object detection

How does the sensor perform in varying temperatures?

The sensor operates within a wide temperature range of -25°C to +70°C, ensuring functionality in both low and high-temperature environments without compromising performance.

What type of environments can this sensor be installed in?

Its IP67 rating means that it is well-suited for humid or dusty environments, making it reliable in industrial settings where water exposure or debris is a concern.

Can this sensor be used with different cable lengths?

While the standard option is a 5m cable, other lengths may be available for specific installation needs, catering to various application requirements.

What load can this sensor handle in terms of current?

The sensor supports a maximum switching current of 200mA, making it effective for controlling various industrial loads within specifications.

Is there any protection against electrical issues?

Yes, it features reverse polarity protection and short circuit overload protection to safeguard the sensor from electrical faults.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Detection Range	4 mm
Body Style	Threaded Barrel
Digital Switching Output Type	NPN
Output Function	NC
Cable Length	5m
Connection Type	Pre-Cabled
Supply Voltage	12 → 24 V dc
Length	30mm
IP Rating	IP67
Mounting Type	Flush
Housing Material	Brass
Width	17mm
Maximum DC Voltage	30V
Diameter	10.5 mm
Minimum Operating Temperature	-25°C
Short Circuit Overload Protection	Yes
Maximum Switching Frequency	1kHz
