OMRON E2B-M12KS04-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, NPN NO, M12 Connector

Name: OMRON E2B-M12KS04-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, NPN NO, M12 Connector
Brand: OMRON
SKU: E2B-M12KS04-M1-C1
Availability: OutOfStock

Part Number : E2B-M12KS04-M1-C1

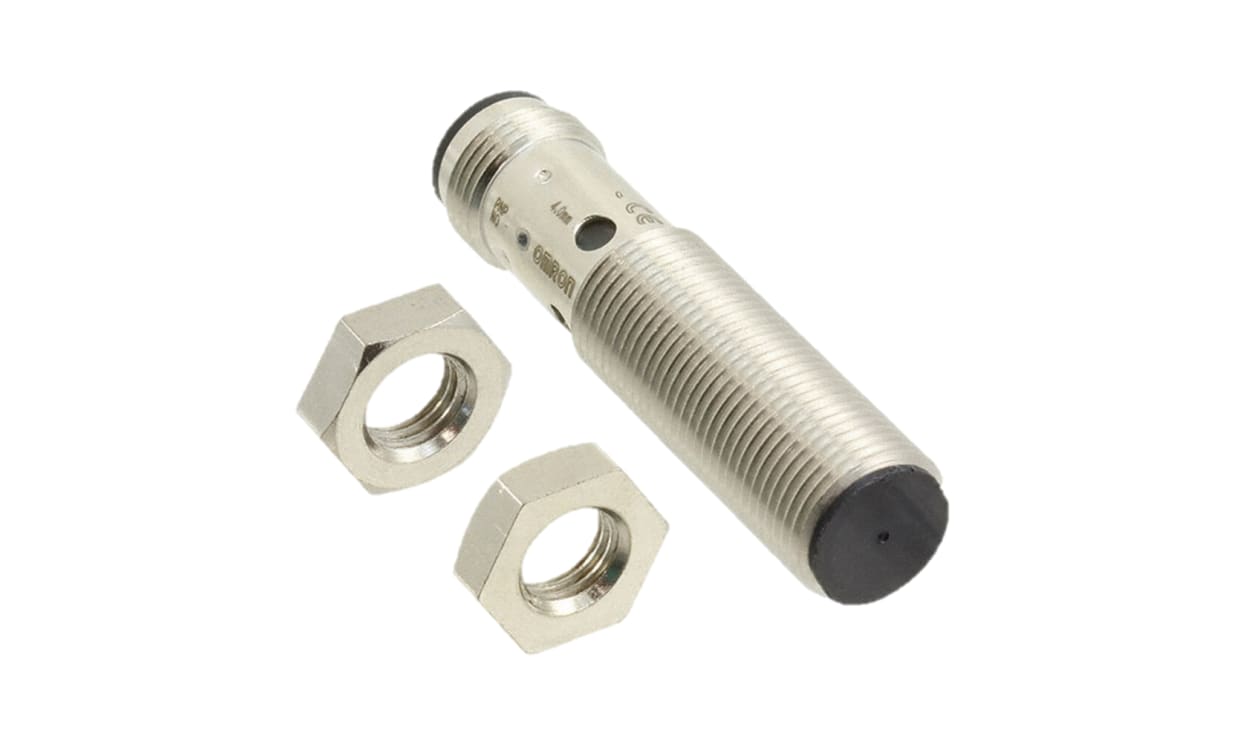

Supplied with an M12 plug-in connector, the OMRON E2B-M12KS04-M1-C1 is an inductive threaded-barrel proximity sensor that detects targets up to 4 mm away. It has an M12 threaded body and an NPN normally open (NO) output. It is listed as a LITE model.

Type: DC, 3-wire
Supply voltage: 12 to 24 V DC (maximum 30 V DC)
Mounting: flush, shielded
Switching frequency: 1 kHz
Housing length: 31 mm (short body)
Housing material: nickel-plated brass

Availability: in stock

Detailed Description
Specifications
Features
Downloads

Omron Series E2B Proximity Sensor, 4mm Detection Range, M12 Thread size - E2B-M12KS04-M1-C1

This proximity sensor is an inductive model designed for reliable performance in various industrial applications. With a compact brass body measuring 31mm in length and 17mm in width, it features a robust IP67 rating, ensuring protection against dust and water ingress. The sensor operates within a supply voltage range of 12 to 24 V DC and offers a 4mm detection range, making it suitable for flush mounting in various setups.

Features & Benefits

• Offers a detection range of 4mm for precise automation control
• Brass body construction provides excellent durability in harsh environments
• Reverse polarity protection prevents damage during installation
• Short circuit overload protection enhances operational safety

Applications

• Used for detecting metal objects in assembly lines
• Ideal for packaging equipment to ensure proper functioning
• Suitable for automation systems requiring accurate presence sensing
• Utilised in conveyor systems where space is minimal
• Effective in controlling machinery in manufacturing processes

What is the operational temperature range for this sensor?

The operational temperature range for this device is between -25°C and +70°C, making it suitable for various industrial environments.

How does the NPN output function in practical applications?

The NPN output allows for normally open configurations, facilitating easier integration with electronic control systems for detecting object presence.

Can this sensor be used in areas with water exposure?

Yes, with its IP67 rating, it is designed to withstand incidental water exposure and can be effectively used in wet environments.

What mounting considerations should be taken into account for optimal performance?

It is essential to ensure correct clearance from surrounding metal surfaces during installation to maintain effective sensing capabilities without interference.

Brand	Omron
Thread Size	M12
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	NPN
Output Function	NO
Connection Type	M12
Supply Voltage	12 → 24 V dc
IP Rating	IP67
Length	31mm
Mounting Type	Flush
Housing Material	Brass
Width	17mm
Maximum DC Voltage	30V
Diameter	10.5 mm
Minimum Operating Temperature	-25°C
Maximum Switching Frequency	1kHz
Maximum Operating Temperature	+70°C
Switching Frequency	1 kHz

Proximity sensor, LITE, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, NPN-NO, M12 plug-in

OMRON E2B-M12KS04-M1-C1 | Inductive Threaded Barrel Proximity Sensor | M12, 4 mm, NPN NO, M12 Connector

DOWNLOAD CATALOG

E2B-M12KS04-M1-C1 Brochure - Inductive Proximity Sensors A700000013470363

E2B-M12KS04-M1-C1 Instruction Sheet - E2B Series A700000013470647
