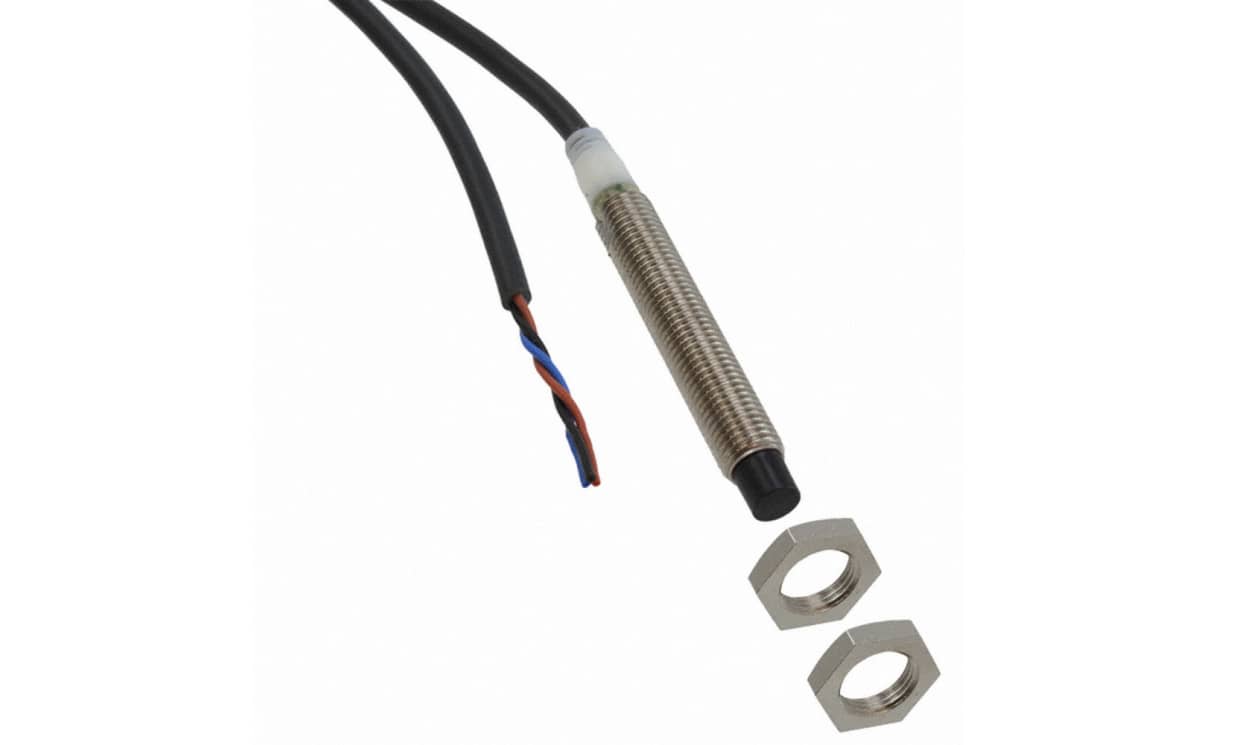

OMRON E2A-S08LN04-WP-B1 2M | Inductive Proximity Sensor | M8, 4 mm PNP NO, 2 m Cable

Name: OMRON E2A-S08LN04-WP-B1 2M | Inductive Proximity Sensor | M8, 4 mm PNP NO, 2 m Cable
Brand: OMRON
SKU: E2A-S08LN04-WP-B1 2M
Availability: OutOfStock

Part Number : E2A-S08LN04-WP-B1 2M

With a 4 mm detection range and a PNP NO output, the OMRON E2A-S08LN04-WP-B1 2M is an M8 inductive proximity sensor wired through a 2 m pre-wired cable and rated for 12 to 24 V DC.

Non-flush mounting, stainless steel housing
Output: PNP NO
Supply: 12 to 24 V DC, max. 32 V
Switching frequency: 1 kHz
Protection: IP67 and IP69K
Operating temperature: -40 °C to +70 °C

Availability: in stock

Detailed Description
Specifications
Downloads

Omron E2A Series Proximity Sensor, 4mm Detection Range, 2m Cable Length - E2A-S08LN04-WP-B1 2M

This proximity sensor is an inductive model designed for industrial applications. The sensor features an M8 threaded barrel style and a detection range of 4mm, allowing for precise sensing of objects in various environments. With a robust stainless steel housing and IP67 and IP69K ratings, it is highly resistant to dust and water. The product operates within a voltage range of 12 to 24 V DC and is suitable for a variety of automation tasks.

Features & Benefits

• Stainless steel housing provides durability for harsh conditions
• IP67/IP69K ratings enable operation in wet environments
• Pre-cabled connection simplifies installation and setup
• PNP output configuration facilitates easy integration into systems

Applications

• Utilised in conveyor systems for object detection
• Applied in packaging machines for precise positioning
• Used in robotics for improved object handling
• Ideal for automation in manufacturing processes

What is the significance of the IP67 and IP69K ratings?

The IP67 rating signifies total dust ingress protection and immersion in water up to 1 metre, while the IP69K rating indicates protection against high-pressure and high-temperature water jets. This makes it suitable for clean environments or where water exposure is likely.

How does the sensor maintain performance under extreme temperatures?

It is designed to operate effectively within a temperature range from -40°C to +70°C, ensuring consistent performance despite environmental fluctuations. This capability is essential for industries where temperature control is critical.

What load current can be safely applied to the sensor?

The device can handle a maximum load current of 200mA, ensuring robust performance in demanding applications without risk of failure.

Brand	Omron
Thread Size	M8
Sensor Technology	Inductive
Body Style	Threaded Barrel
Detection Range	4 mm
Digital Switching Output Type	PNP
Output Function	NO
Connection Type	Pre-Cabled
Cable Length	2m
Supply Voltage	12 → 24 V dc
IP Rating	IP67, IP69K
Length	62mm
Mounting Type	Non-Flush
Housing Material	Stainless Steel
Maximum DC Voltage	32V
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Depth	5.8mm
Series	E2A
Switching Frequency	1 kHz

OMRON E2A-S08LN04-WP-B1 2M | Inductive Proximity Sensor | M8, 4 mm PNP NO, 2 m Cable

DOWNLOAD CATALOG

E2A-S08LN04-WP-B1 2M Brochure - Inductive Proximity Sensors A700000014068258
